Exploded View

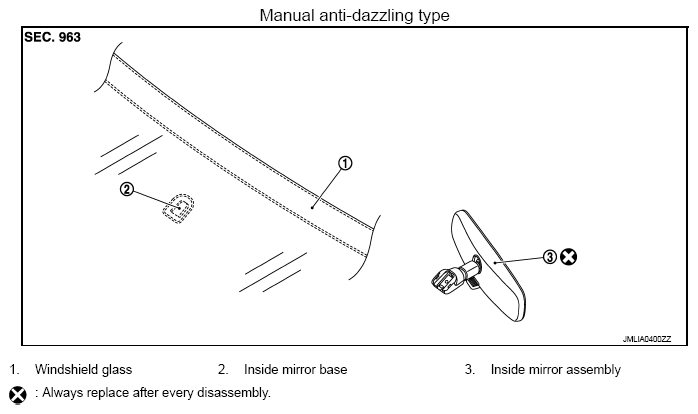

Fig 1: Exploded View Of Inside Mirror (Manual Anti-Dazzling Type)

Courtesy of NISSAN NORTH AMERICA, INC.

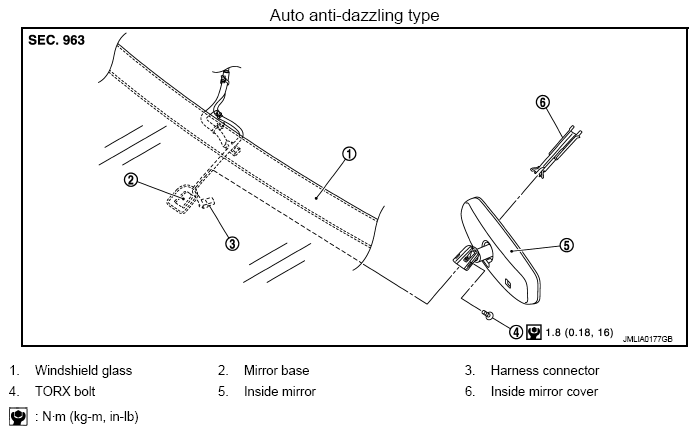

Fig 2: Exploded View Of Inside Mirror With Torque Specifications (Auto Anti-Dazzling Type)

Courtesy of NISSAN NORTH AMERICA, INC.
