System Diagram

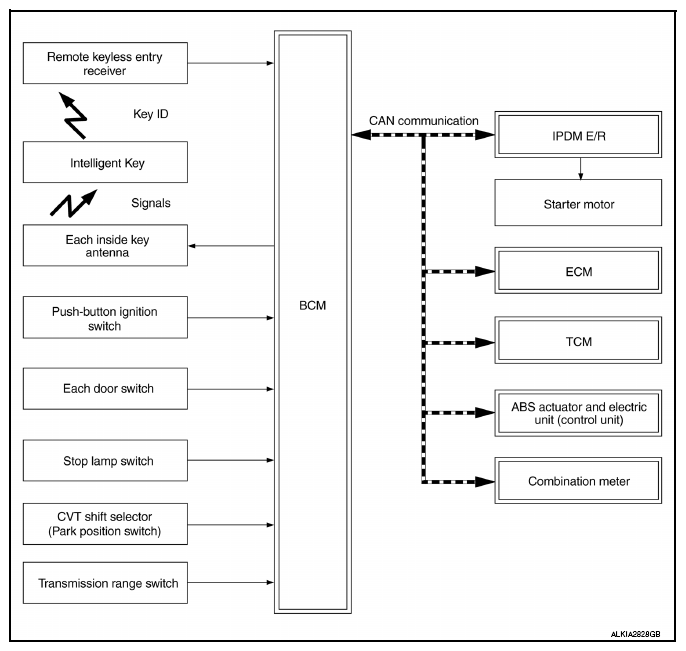

Fig 1: Intelligent Key System/Engine Start Function System Diagram

G09052185

Courtesy of NISSAN NORTH AMERICA, INC.
