Ignition Timing: Inspection

  1. CHECK IGNITION TIMING
    1. Attach timing light (A) to loop wire (1) as shown below.

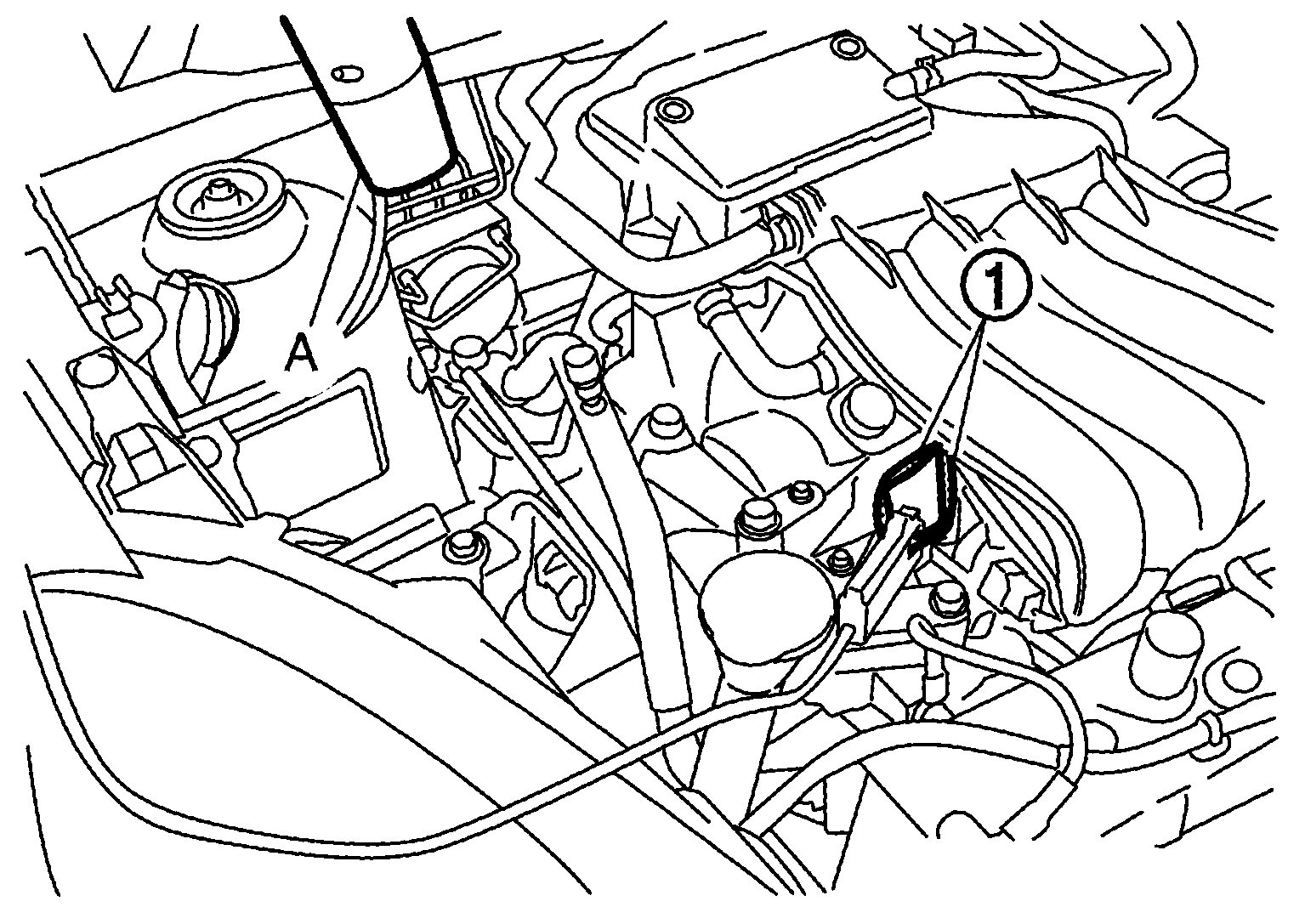

      Fig 1: Attaching Timing Light To Loop Wire
      G09054385Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.

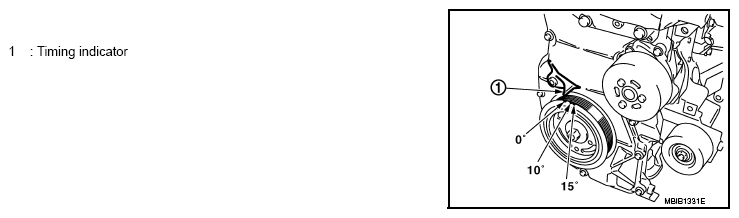

      Fig 2: Locating Timing Indicator
      G09054386Courtesy of NISSAN NORTH AMERICA, INC.

      : INSPECTION END
