Removal and Installation: Notes

WARNING: Be sure to read "General Precautions" before working on the fuel system. Refer to "GENERAL PRECAUTIONS ". REMOVAL
  1. Release the fuel pressure from the fuel lines. Refer to "WORK PROCEDURE ".
  2. Check fuel level with vehicle on a level surface. If the fuel level is 7/8 of the fuel tank (full or nearly full), draw appropriate amount of fuel from the fuel tank.

    Guideline: Draw approximately 10 liters (2-5/8 US gal, 2-1/4 imp gal) from a full-tank condition.

    • In the event of malfunction in fuel pump, insert a hose measuring 20 mm (0.79 in) in diameter into the filler opening to draw approximately 10 liters (2-5/8 US gal, 2-1/4 Imp gal) fuel.
  3. Open fuel filler lid.
  4. Open fuel filler cap and release the pressure inside fuel tank.
  5. Remove the rear seat cushion. Refer to "REMOVAL AND INSTALLATION - SEAT CUSHION ASSEMBLY ".
  6. Remove the inspection hole cover.
  7. Disconnect the harness connector (B), fuel feed tube (C) and EVAP tube (A).

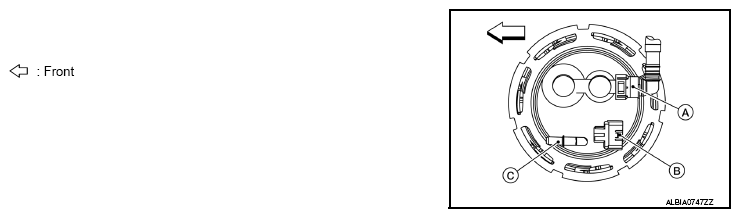

    Fig 1: Locating Fuel Feed Tube And EVAP Tube And Harness Connector
    G09054408Courtesy of NISSAN NORTH AMERICA, INC.

    Remove the quick connector as follows:

    • Hold the sides of the connector, push in tabs (B) and pull (A) out the tube.
    • If the connector and the tube are stuck together, push and pull several times until they start to move. Then disconnect them by pulling.
      Fig 2: Removing Quick Connector
      G09054409Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION:
      • The tube can be removed when the tabs are completely depressed. Do not twist it more than necessary.
      • Do not use any tools to remove the quick connector.
      • Keep the resin tube away from heat. Be especially careful when welding near the tube.
      • Prevent acid liquid such as battery electrolyte, etc. from getting on the resin tube.
      • Do not bend or twist the tube during installation and removal.
      • Only when the tube is replaced, remove the remaining retainer on the tube or fuel level sensor, fuel filter, and fuel pump assembly.
      • When the tube or fuel level sensor, fuel filter, and fuel pump assembly is replaced, also replace the retainer with a new one (green colored retainer).
      • To keep the connecting portion clean and to avoid damage and foreign materials, cover them completely with plastic bags (B) or something similar.
      Fig 3: Securing Quick Connector Using Plastic Bags
      G09054410Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove center muffler and main muffler. Refer to "EXPLODED VIEW ".
  9. Disconnect the LH rear park brake cable brackets. Refer to "EXPLODED VIEW ".
  10. Remove the rear floor insulator located above center and main mufflers.
  11. Disconnect fuel filler hose at fuel filler tube side.

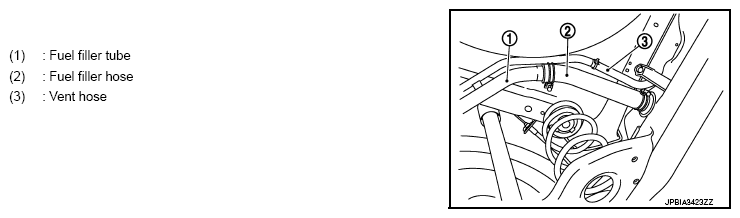

    Fig 4: Locating Fuel Filler Tube, Fuel Filler Hose And Vent Hose
    G09054411Courtesy of NISSAN NORTH AMERICA, INC.
  12. Disconnect vent hose from fuel tank side.
  13. Support the center part of fuel tank (1) using a suitable jack (A).

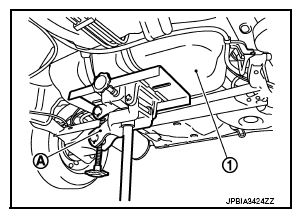

    Fig 5: Supporting Center Part Of Fuel Tank Using Suitable Jack
    G09054412Courtesy of NISSAN NORTH AMERICA, INC.
  14. Remove fuel tank mounting bands (LH/RH).
  15. Lower transmission jack carefully to remove fuel tank while holding it by hand.
    CAUTION: Fuel tank may be in an unstable condition because of the shape of fuel tank bottom. Be sure to hold tank securely.
