Removal and Installation: Removal

  1. Disconnect the negative battery terminal. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove BCM screws (A) and pull out the BCM (B).

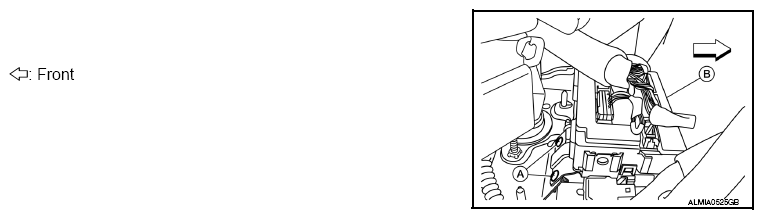

    Fig 1: Locating Body Control Module And Screws
    G09052621Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connectors from the BCM (B) and remove.
