CVT CONTROL SYSTEM: ROM Assembly

The ROM assembly is installed to control valve.
The ROM assembly stores the calibration data (characteristic value) of each solenoid valve. TCM enables accurate hydraulic control by obtaining the calibration data.

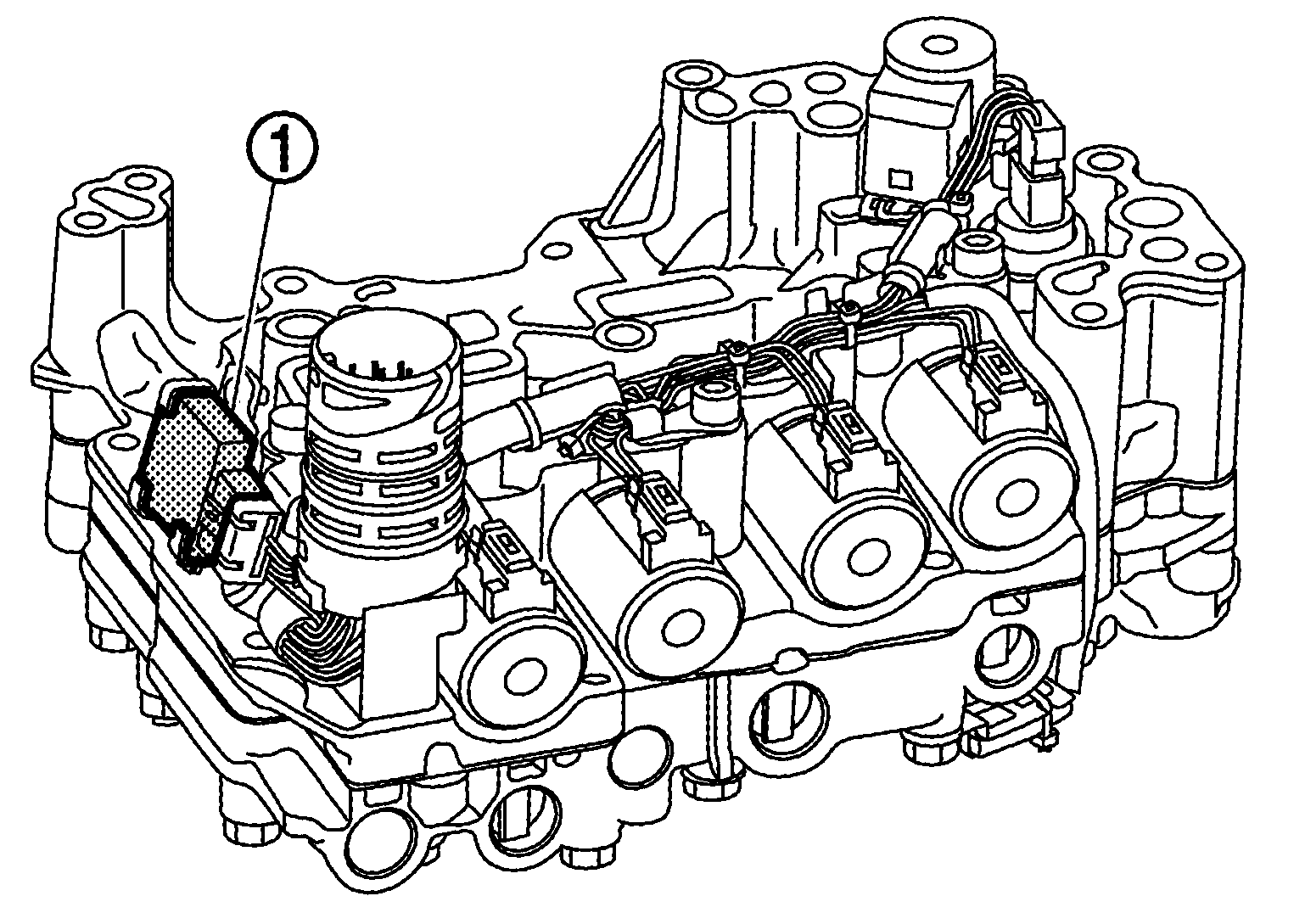

Fig 1: Identifying ROM Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
