Component Inspection (Overdrive Control Switch)
- CHECK OVERDRIVE CONTROL SWITCH

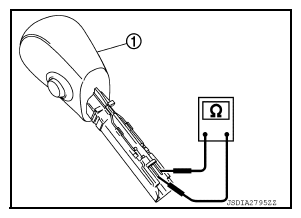

Check continuity between wires of selector lever knob.
Condition Continuity Overdrive control switch is depressed Existed Overdrive control switch is released Not existed Is the inspection result normal?
YES: INSPECTION END
NO: Replace selector lever knob. Refer to "REMOVAL AND INSTALLATION ".
