Nissan-Datsun
>>
2013
>>
Sentra SR
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Exhaust System
>>
Removal And Installation
>>
Exhaust System
>>
Exploded View
Exploded View

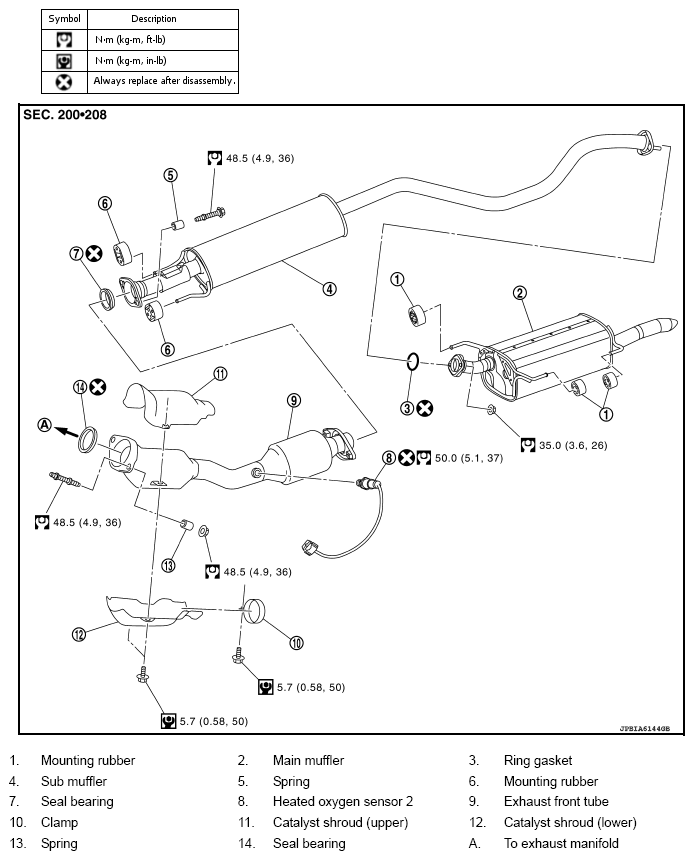

Fig 1: Exploded View Of Exhaust System With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
