Nissan-Datsun
>>
2013
>>
Sentra SL
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Wiring Diagram
>>
Starting System (With Intelligent Key)
>>
Connector End Views
Connector End Views

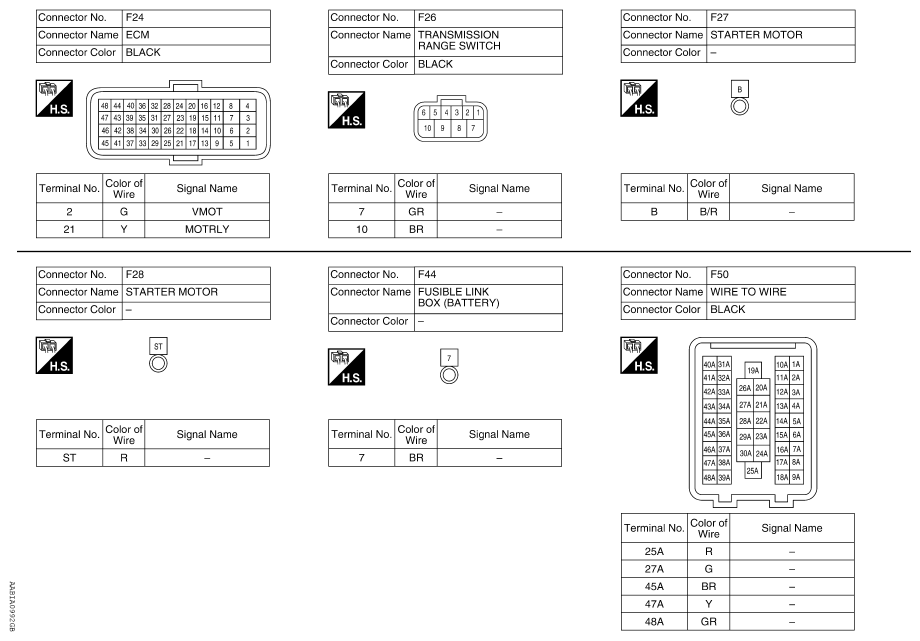

Fig 1: Starting System Connector End Views - With Intelligent Key (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

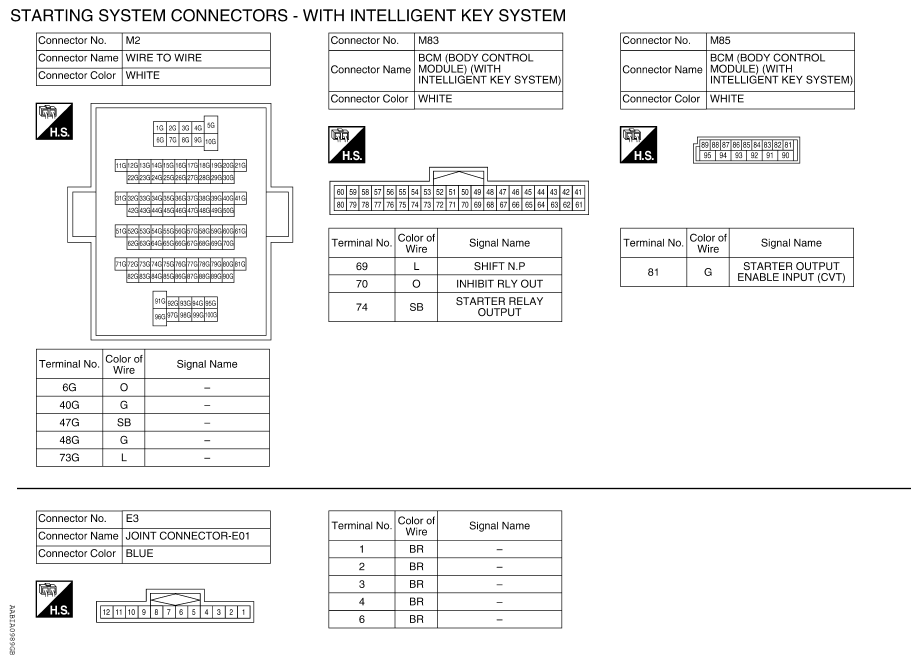

Fig 2: Starting System Connector End Views - With Intelligent Key (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

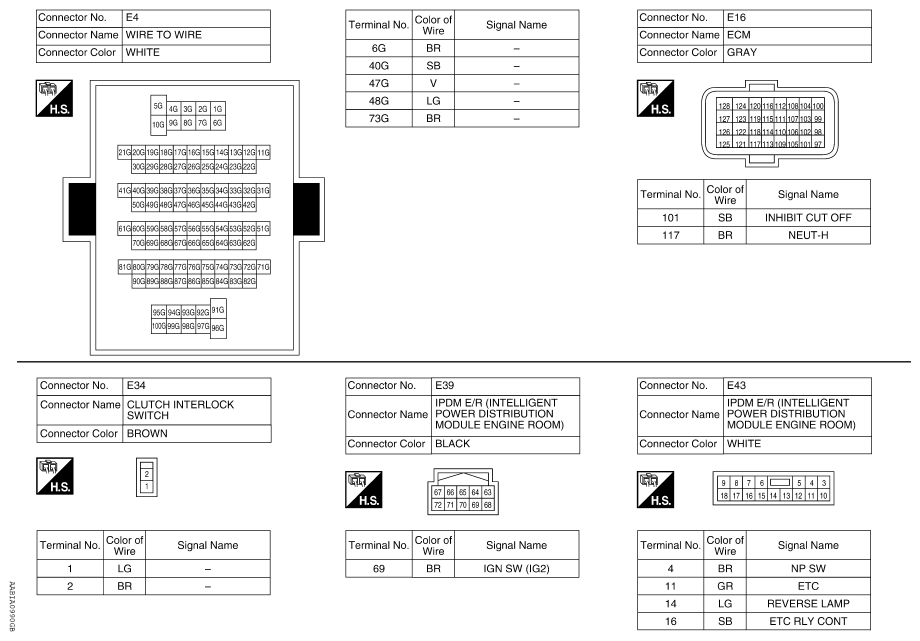

Fig 3: Starting System Connector End Views - With Intelligent Key (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

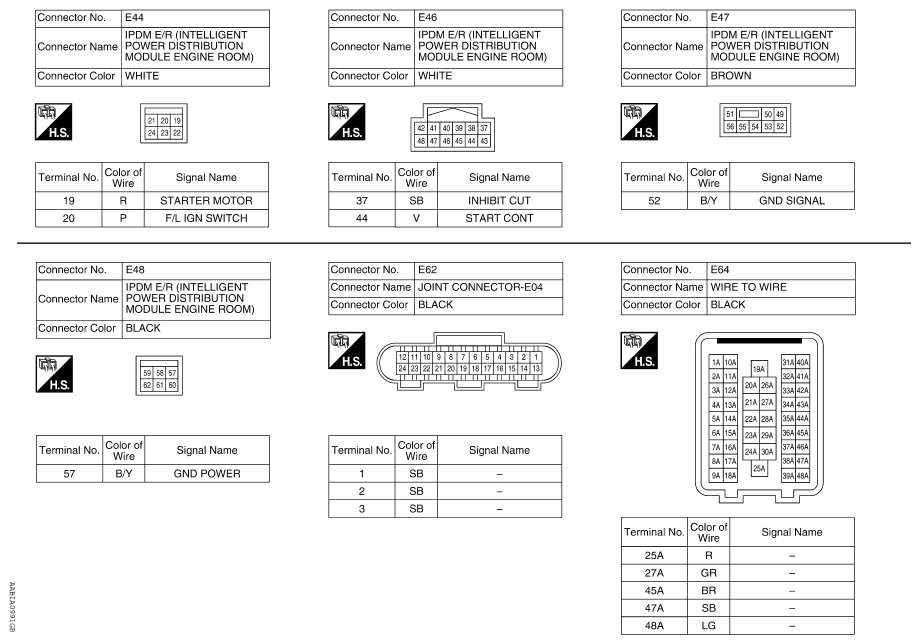

Fig 4: Starting System Connector End Views - With Intelligent Key (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
