Component Parts Location

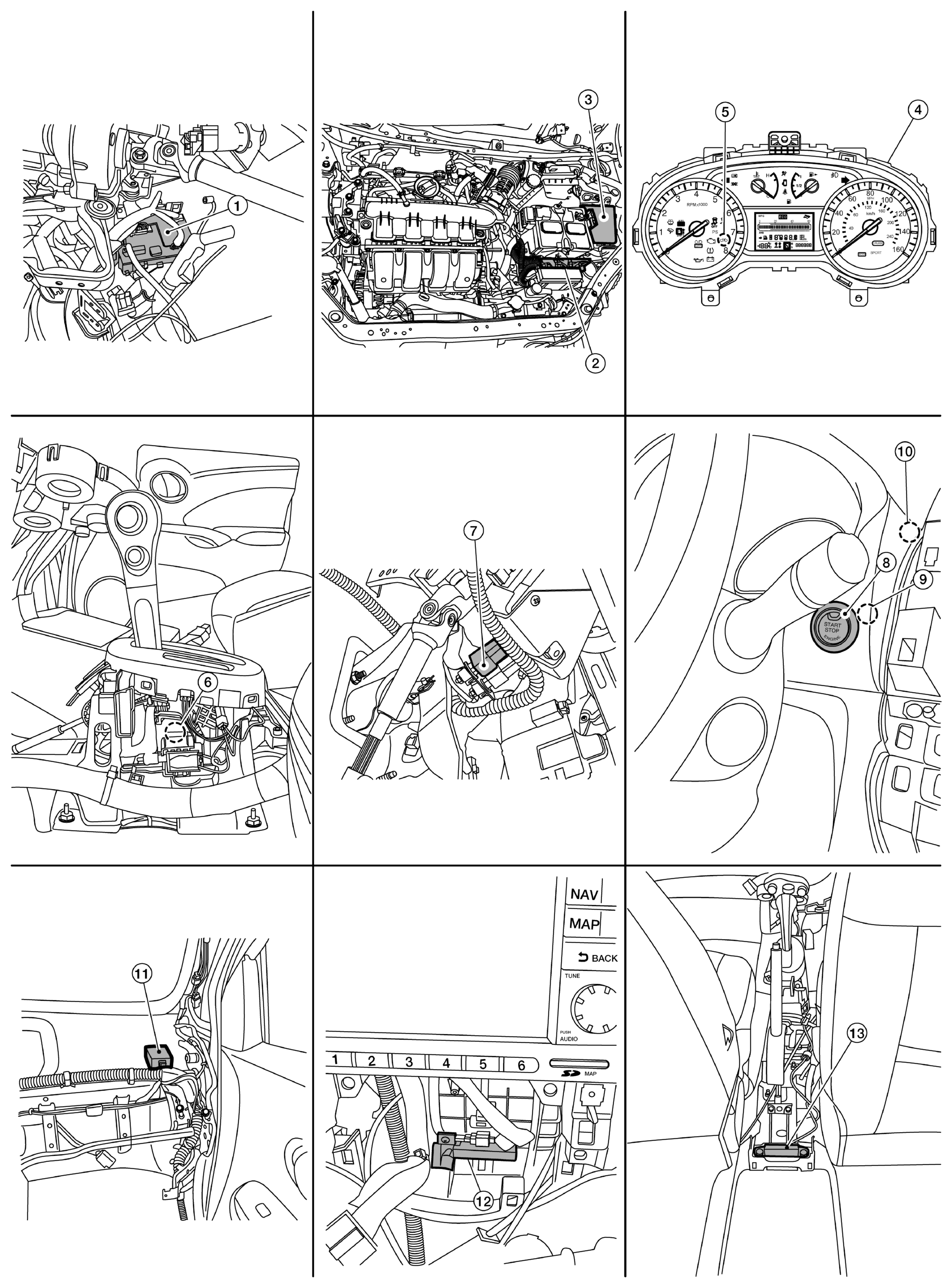

Fig 1: Identifying Security Control System Component Parts Location (1 Of 2)
G08991047Courtesy of NISSAN NORTH AMERICA, INC.

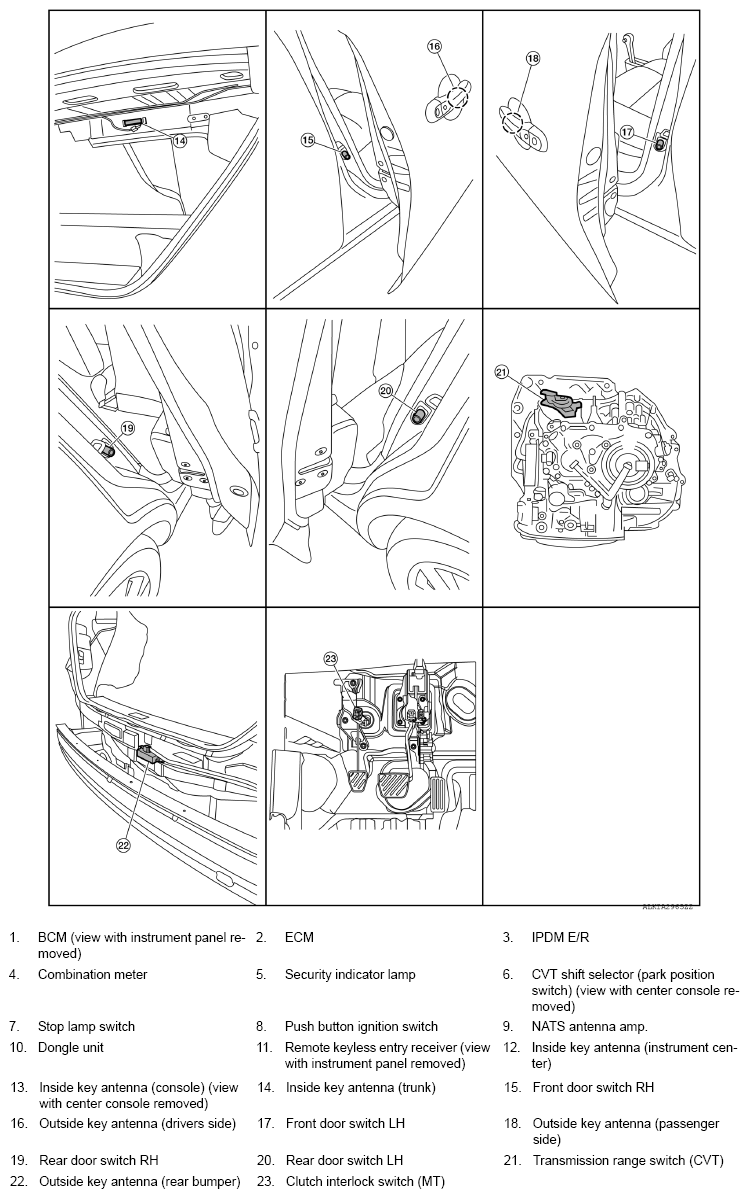

Fig 2: Identifying Security Control System Component Parts Location (2 Of 2)
G08991048Courtesy of NISSAN NORTH AMERICA, INC.
