Shaft And Gear

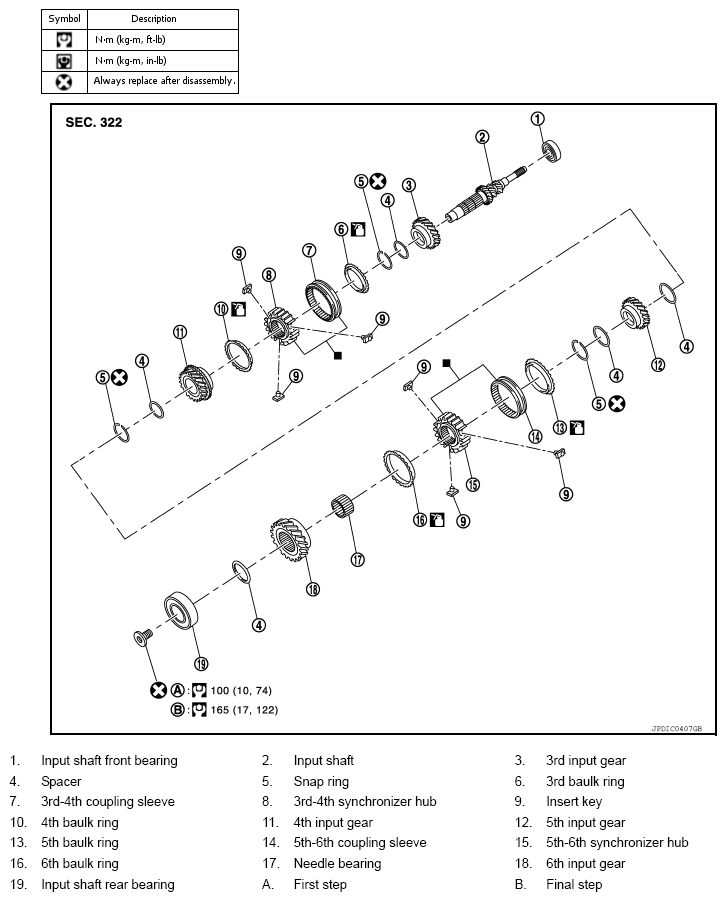

Fig 1: Exploded View Of Transaxle Assembly - Shaft And Gear With Torque Specifications (1 Of 3)
G08989549Courtesy of NISSAN NORTH AMERICA, INC.

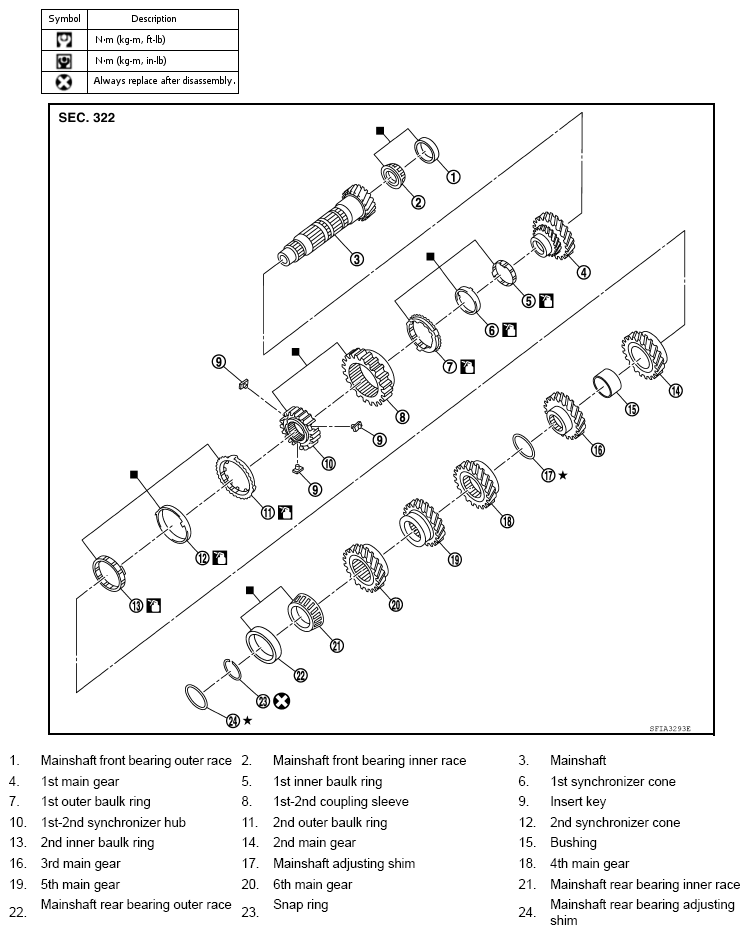

Fig 2: Exploded View Of Transaxle Assembly - Shaft And Gear (2 Of 3)
G08989550Courtesy of NISSAN NORTH AMERICA, INC.

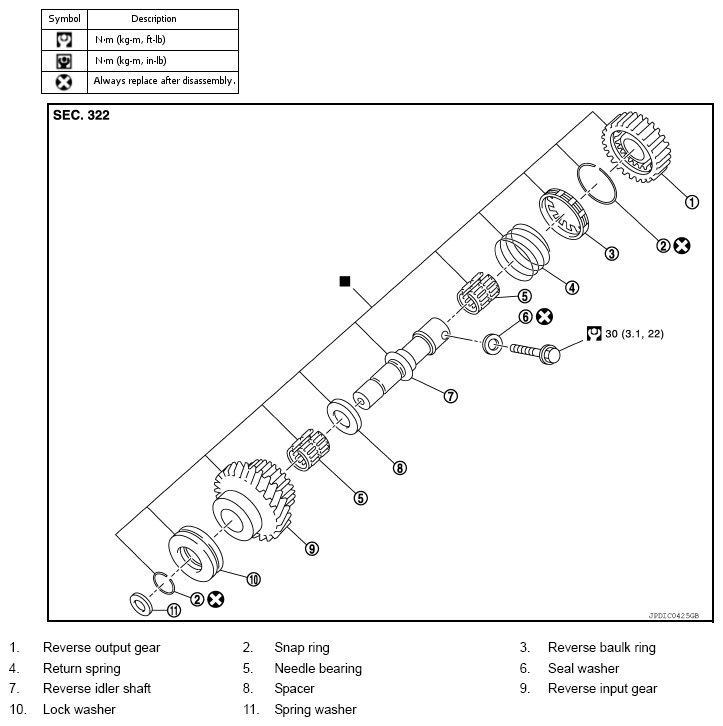

Fig 3: Exploded View Of Transaxle Assembly - Shaft And Gear With Torque Specifications (3 Of 3)
G08989551Courtesy of NISSAN NORTH AMERICA, INC.
