Final Drive
Final Drive

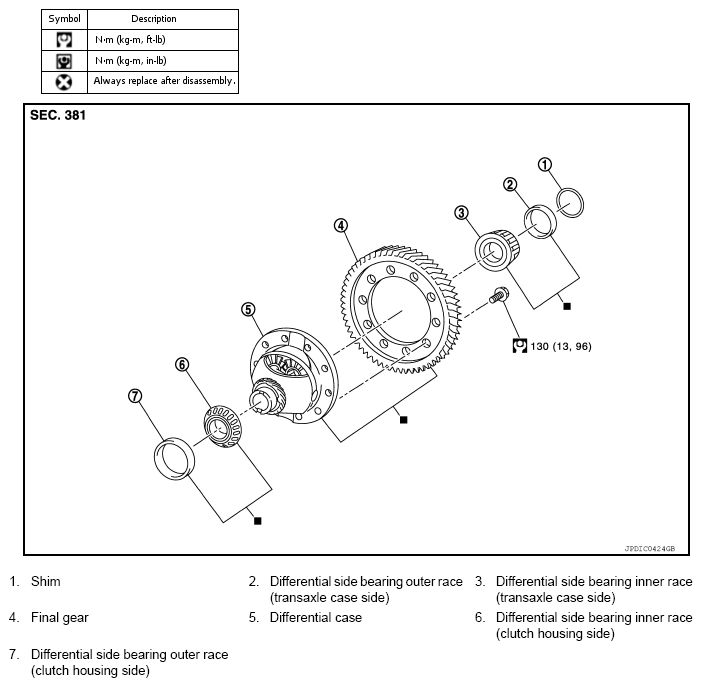

Fig 1: Exploded View Of Transaxle Assembly (Final Drive) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
