Exploded View
>>
Case And Housing
Case And Housing

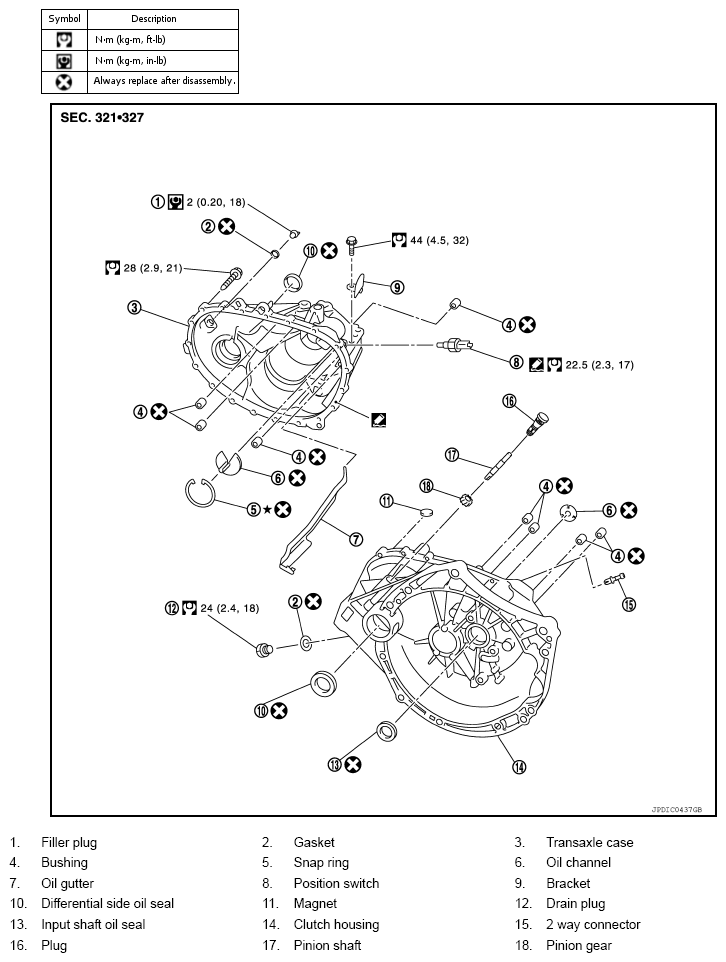

Fig 1: Exploded View Of Transaxle Assembly (Case And Housing) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
