Exploded View

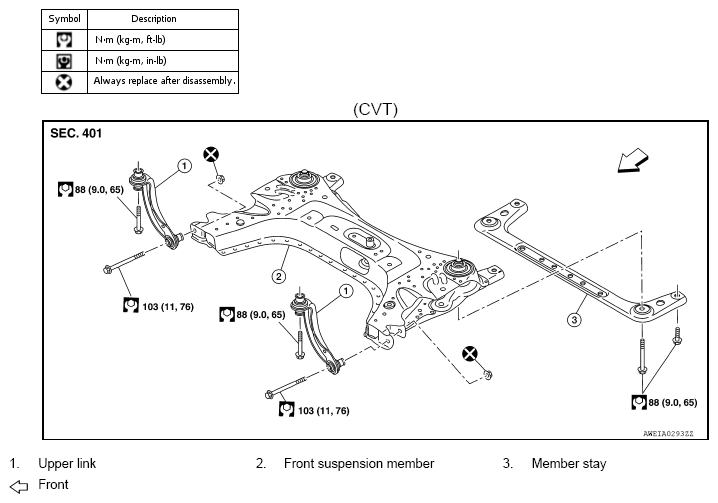

Fig 1: Exploded View Of Front Suspension Member With Torque Specifications (CVT)
G08989973Courtesy of NISSAN NORTH AMERICA, INC.

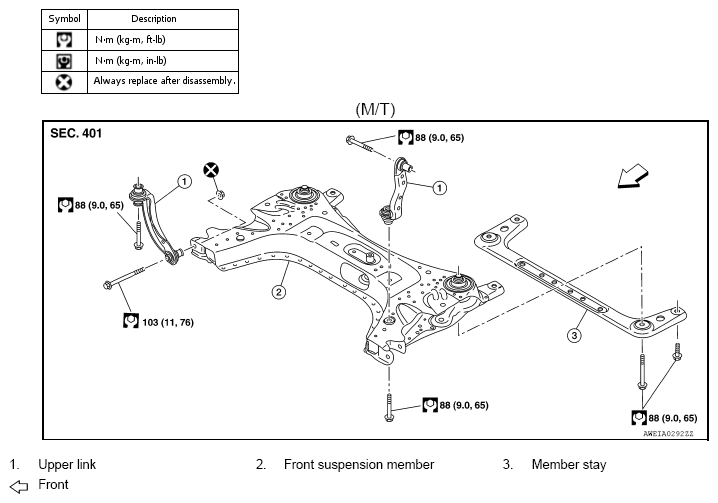

Fig 2: Exploded View Of Front Suspension Member With Torque Specifications (M/T)
G08989974Courtesy of NISSAN NORTH AMERICA, INC.
