Nissan-Datsun
>>
2013
>>
Sentra S, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System
>>
Unit Disassembly And Assembly
>>
Steering Gear And Linkage
>>
Exploded View
Exploded View

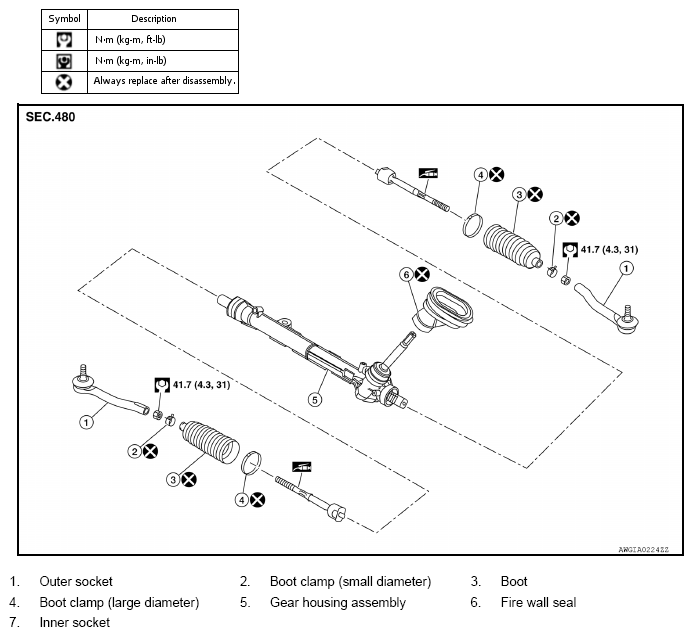

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
