Component Location
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

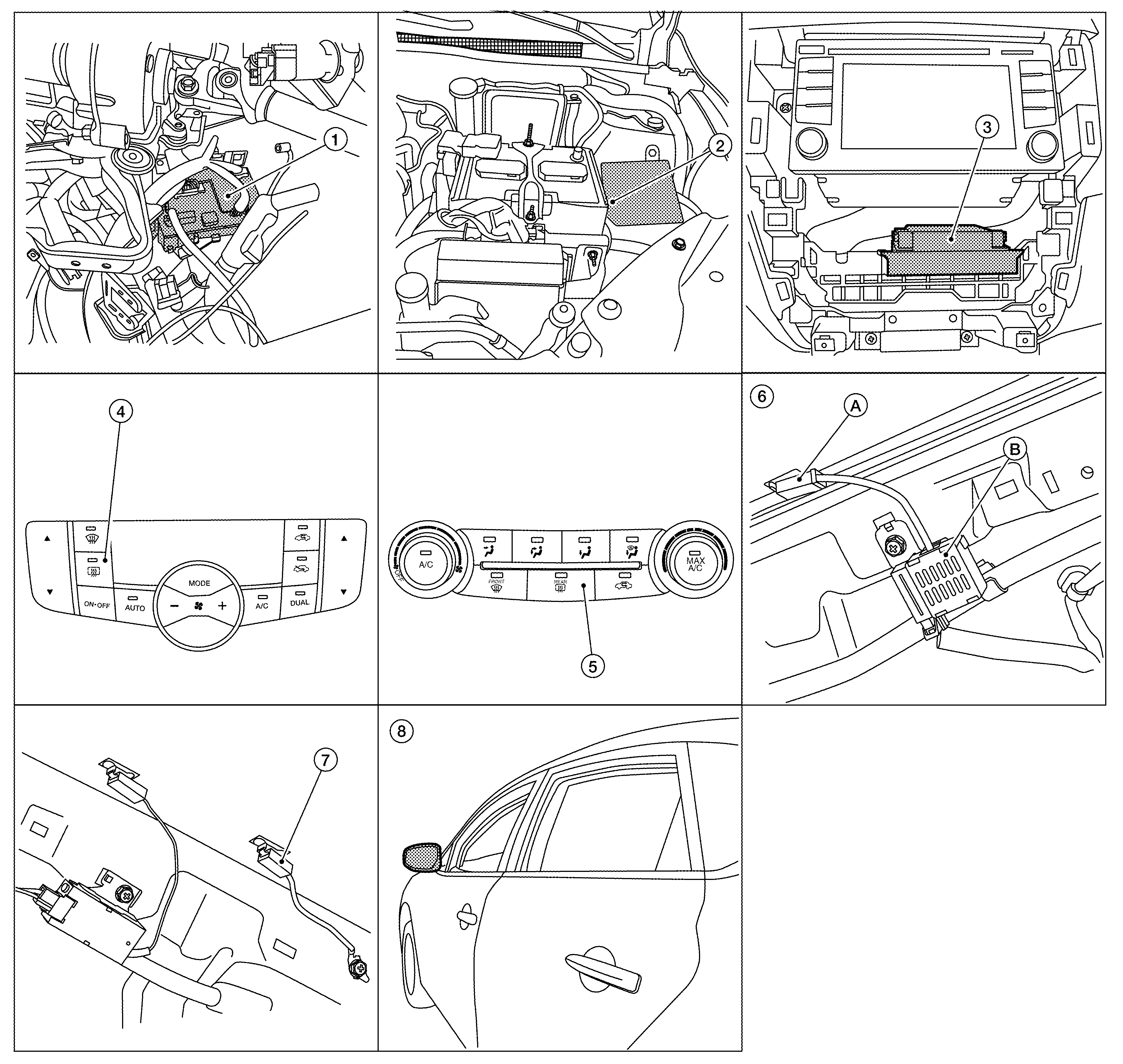

| 1. | BCM (view with instrument panel removed) | 2. | IPDM E/R (rear window defogger relay) | 3. | A/C auto amp. (view with A/C switch assembly removed) |
| 4. | A/C switch assembly (rear window defogger switch) (with auto A/C) | 5. | A/C switch assembly (rear window defogger switch) (without auto A/C) | 6. | A. Rear window defogger power connector B. Condenser (view with rear pillar finisher LH removed) |
| 7. | Rear window defogger ground connector (view with rear pillar finisher RH removed) | 8. | Door mirror LH (door mirror defogger) (if equipped) (RH similar) |
