Sentra S, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Removal And Installation
>>
Windshield Glass
>>
Exploded View
Exploded View

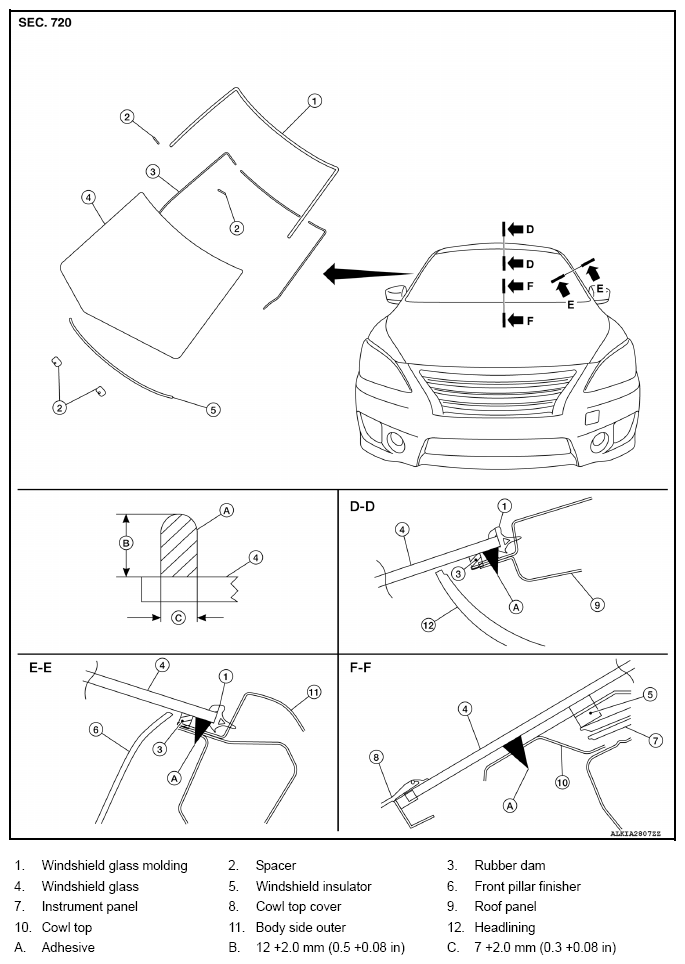

Fig 1: Exploded View Of Windshield Glass
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
