Side Window Glass: Components

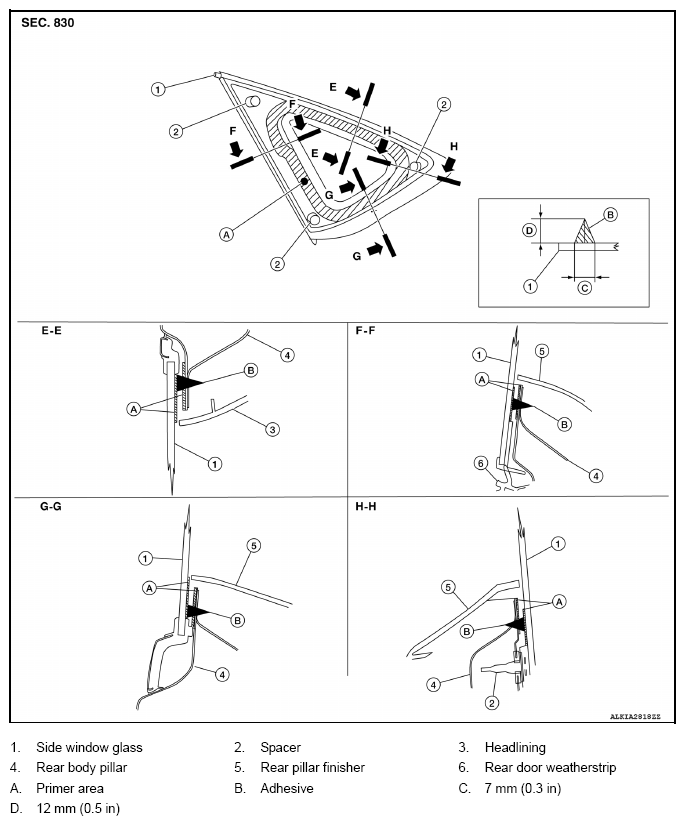

Fig 1: Identifying Side Window Glass Section Components

G08991144

Courtesy of NISSAN NORTH AMERICA, INC.
