Connector End Views
Connector End Views

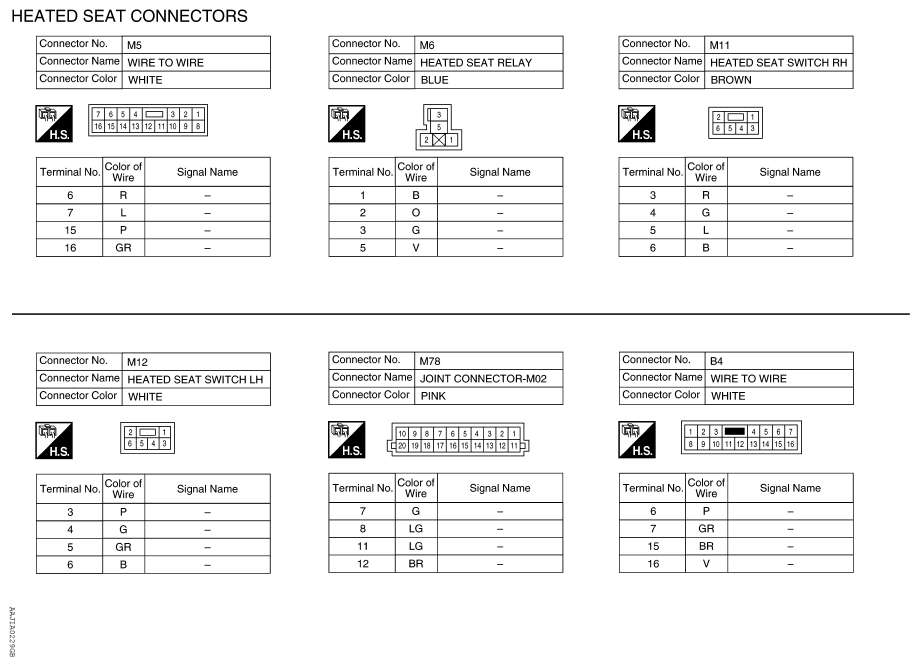

Fig 1: Heated Seat Connector End Views (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Heated Seat Connector End Views (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
