Home
>>
Nissan-Datsun
>>
2013
>>
Sentra FE+S
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belts
>>
Removal And Installation
>>
Front Seat Belt
>>
Exploded View
Exploded View

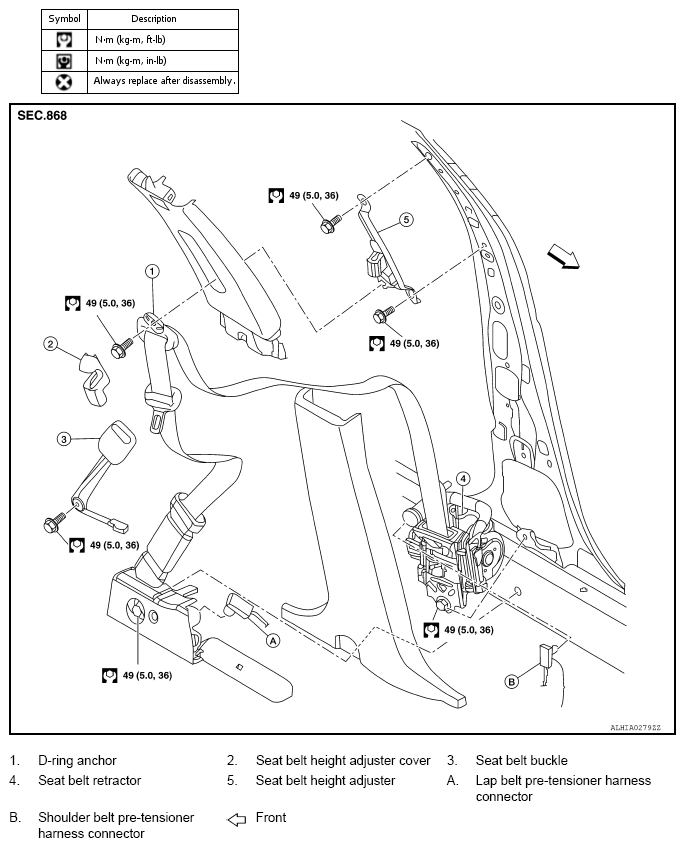

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
LH side shown; RH side similar.
Courtesy of NISSAN NORTH AMERICA, INC.
