Front Seat Belt Retractor Off-Vehicle Check

  1. Remove the front seat belt retractor. Refer to "REMOVAL AND INSTALLATION ".
  2. Slowly pull out webbing while tilting the seat belt retractor forward from the mounted position without twisting the seat belt retractor as shown below.
    1. The webbing can be pulled out if the retractor is tilted 15° degree or less.
    2. The webbing can not be pulled out if the retractor is tilted 45° degrees or more.

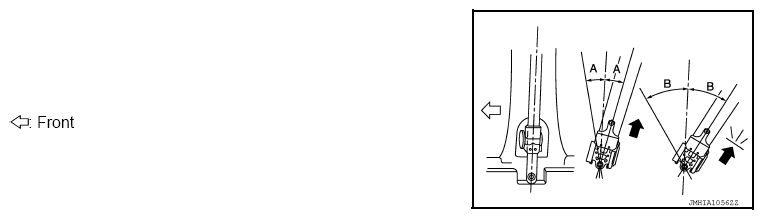

      NOTE: A and B show tilting angles.
      Fig 1: Identifying Front Seat Belt Retractor Tilting Angles
      G08990250Courtesy of NISSAN NORTH AMERICA, INC.
  3. Replace the seat belt retractor if it does not operate within specifications.
