Additional Service When Replacing Control Valve Or Transaxle Assembly (NTB17-041B)

ADDITIONAL SERVICE WHEN REPLACING CONTROL VALVE OR TRANSAXLE ASSEMBLY

SERVICE CAMPAIGN BULLETIN

APPLIED VEHICLES

2013-2019 Sentra (B17)

2014-2019 Versa Note (E12)

2013-2019 Versa Sedan (N17)

APPLIED TRANSMISSION:  CVT

APPLIED ENGINE: HR16DE and MRA8DE (non-turbo engines)

SERVICE INFORMATION

After CVT assembly or control valve replacement, additional service must be completed with CONSULT-III plus (C-III plus).

• If all additional services are not performed, the vehicle can experience drivability concerns which may result in a CVT issue.

Additional Service when Replacing Control Valve or Transaxle Assembly

• The following procedures, starting on the next page, must be  performed in this order.
• Check off each procedure as they are performed in the order listed below.

CHECK OFF	PROCEDURE	PAGE
	TCM REPROGRAMMING	2
	CONTROL VALVE REPLACEMENT (CONSULT-III plus Work Support)	22
	ERASE LEARNING VALUE	27
	CONFORM CVTF DETERIORTN	29
	AUXILIARY GEARBOX CLUTCH POINT LEARNING	32
	Erase DTCs	34

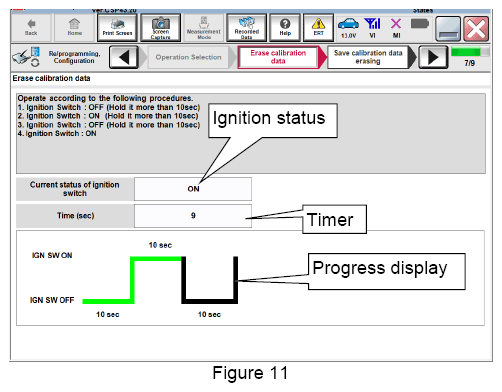

SERVICE PROCEDURE

TCM REPROGRAMMING

• ASIST on the CONSULT PC has been synchronized (updated) to the current date.
• All C-III plus software updates (if any) have been installed.
• The CONSULT PC is connected to the internet (Wi-Fi, or cable).

1. Connect the plus Vehicle Interface (plus VI) to the vehicle.
   CAUTION: Make sure the plus VI is securely connected. If the plus VI connection is loose during reprogramming, the process will be interrupted and the TCM may be damaged.
2. Connect the AC Adapter to the CONSULT PC.
   CAUTION: Be sure to connect the AC Adapter. If the CONSULT PC battery voltage drops during reprogramming, the process will be interrupted and the TCM may be damaged.
3. Connect the GR8, set to "Power Supply" mode, to the vehicle battery.
   CAUTION: Be sure the GR8 is connected securely to the battery. Make sure the battery voltage stays between 12.0V and 15.5V  during reprogramming. If the battery voltage goes out of this range during reprogramming, the TCM may be damaged.
4. Turn OFF all external Bluetooth® devices (e.g., cell phones, printers, etc.) within range of the CONSULT PC and the VI.
   CAUTION: Make sure to turn OFF all external Bluetooth® devices. If Bluetooth® signal waves are within range of the CONSULT PC and the plus VI during reprogramming, reprogramming may be interrupted and the TCM may be damaged.
5. Turn the ignition ON with the engine OFF.
   • The engine must not start or run during the reprogramming procedure.
6. Turn OFF all vehicle electrical loads such as exterior lights, interior lights, HVAC, blower, rear defogger, audio, NAVI, seat heater, steering wheel heater, etc.
   IMPORTANT: Make sure to turn OFF all vehicle electrical loads. Make sure the battery voltage stays between 12.0V and 15.5V  during reprogramming. If the battery voltage goes out of this range during reprogramming, the TCM may be damaged.
7. Turn ON the CONSULT PC.
8. Select CONSULT-III plus (open C-III plus).

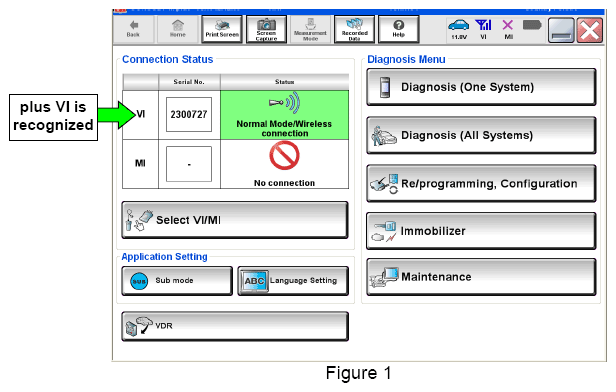

9. Wait for the plus VI to be recognized.
   • Serial number will display when the plus VI is recognized.

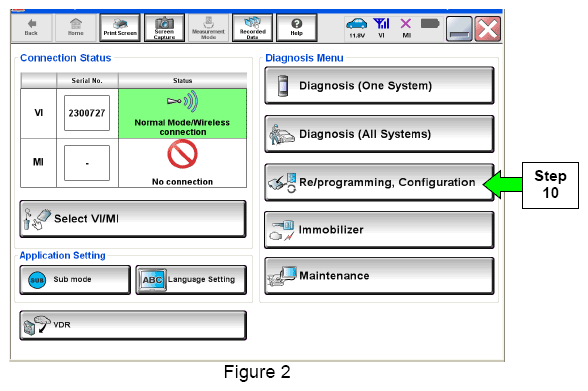

10. Select Re/programming, Configuration.

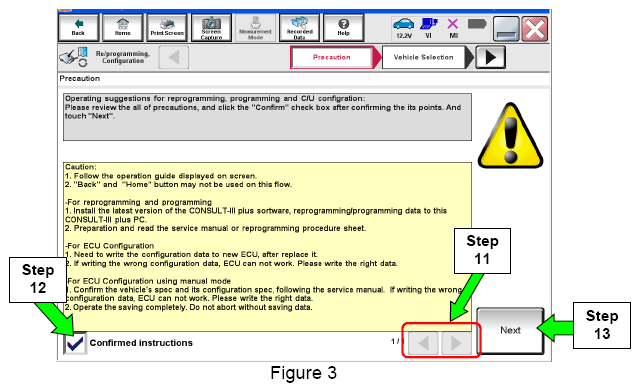

11. Use arrows (if needed) to view and read all precautions.
12. Check the box confirming the precautions have been read.
13. Select Next.

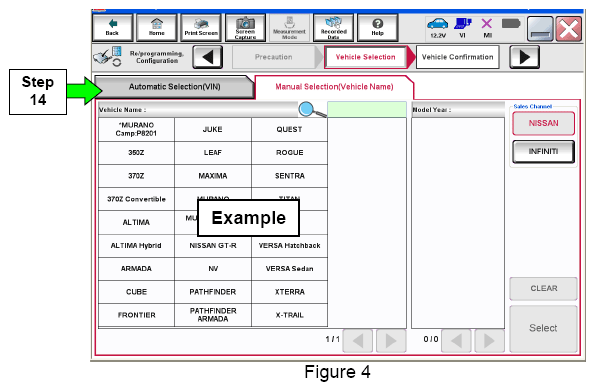

14. If the screen in Figure 4 displays, select Automatic Selection(VIN).
    • If the screen in Figure 4 does not  display, skip to step 15.

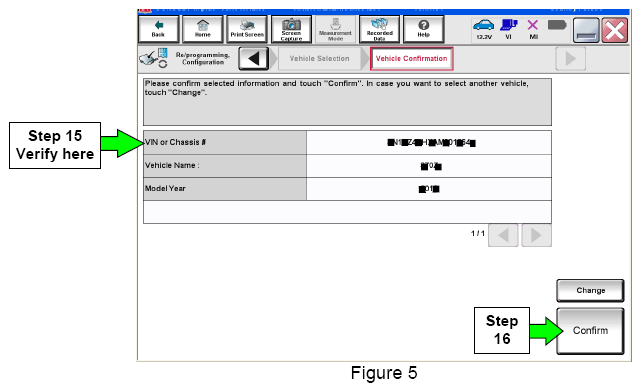

15. Make sure VIN or Chassis #  matches the vehicle's VIN.
16. If the correct VIN is displayed, select Confirm.

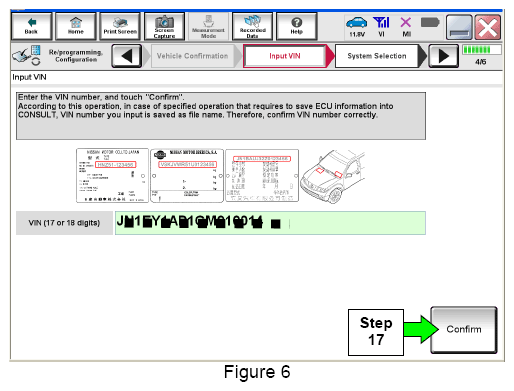

17. Select Confirm.

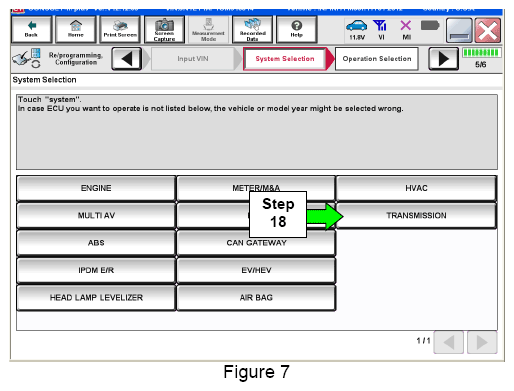

18. Select TRANSMISSION.

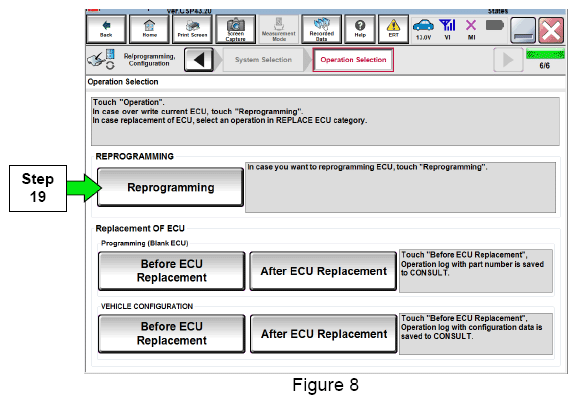

19. Select Reprogramming.
20. Follow the on-screen instructions; maintain the following conditions:
    1. Ignition ON, with the engine OFF.
    2. Press the Brake.
    3. Press accelerator between 1/4 and 1/2.
    4. Put shift selector in R.

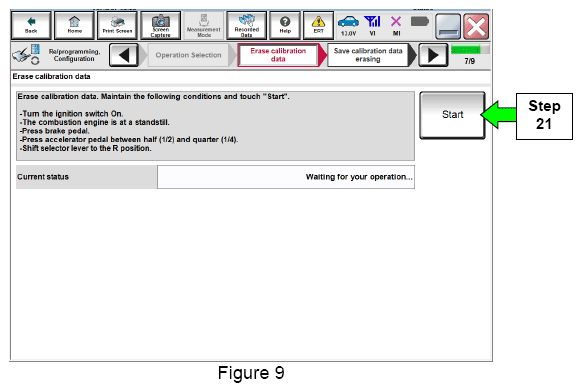

21. Select Start.

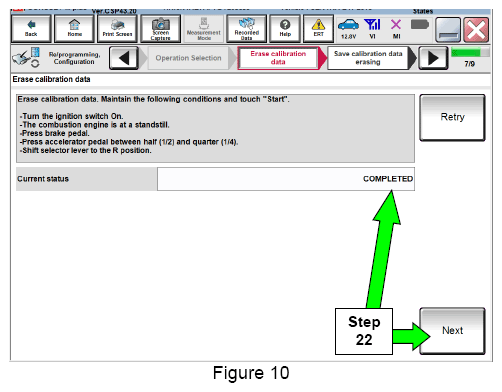

22. When COMPLETED  is displayed, select Next.
23. Operate the ignition per the on screen instructions.

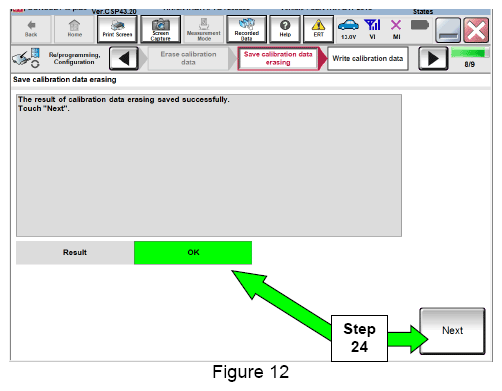

24. When OK  is displayed, select Next.

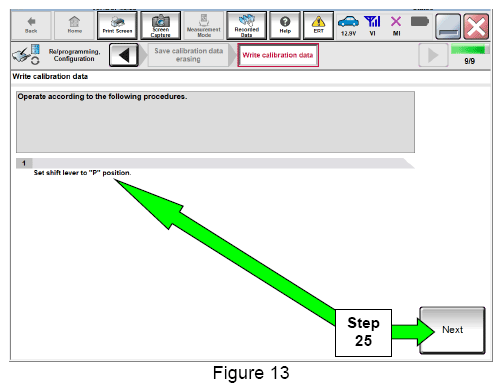

25. Move the shift selector to P,  then select Next.
26. Operate the shift selector per the on-screen instructions.
    1. Move the shift selector: P > R > N > D > P.
    2. Confirm the center display meter indicates the correct selector position.
27. Select Next.

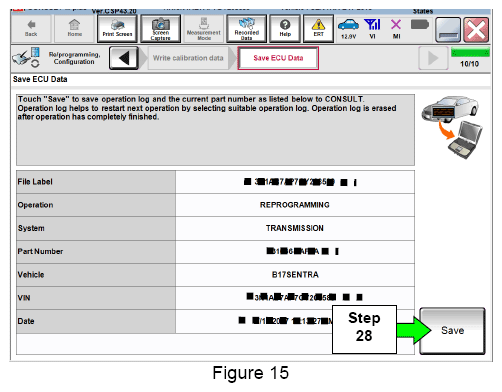

28. Select Save.

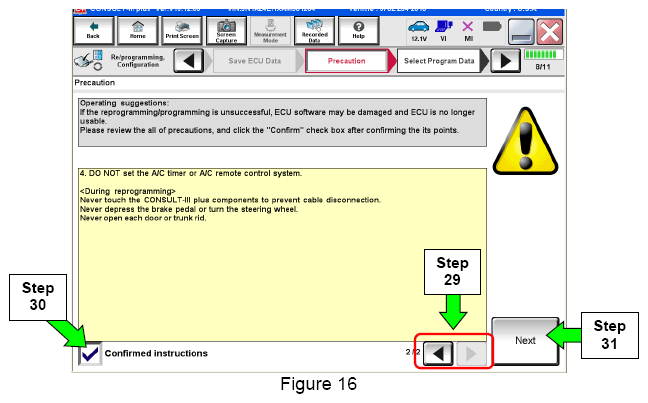

29. Use arrows (if needed) to view and read all precautions.
30. Check the box confirming the precautions have been read.
31. Select Next.
    IMPORTANT: For step 32 to be accurate:

    • ASIST on the CONSULT PC must be synchronized (updated) to the current date.
    • All C-III plus software updates (if any) must be installed.

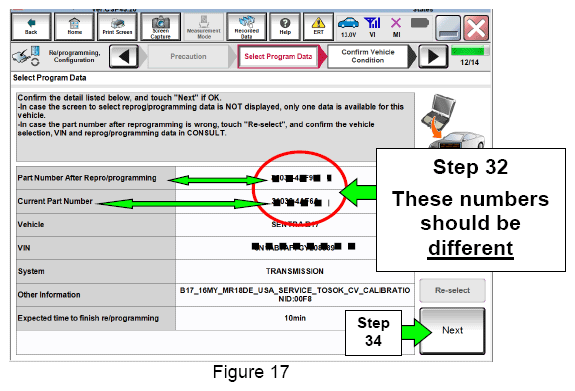

32. Confirm reprogramming is required for this vehicle:
    • Read/compare the Current Part Number  and Part Number After Reprogramming  (see Figure 17).
    • They should be different.
33. Comparison results:
    • If they are different,  continue with the reprogramming procedure.
    • If they are the same,  reprogramming is not needed.  Skip to CONTROL VALVE REPLACEMENT on page 22.
34. Select Next.

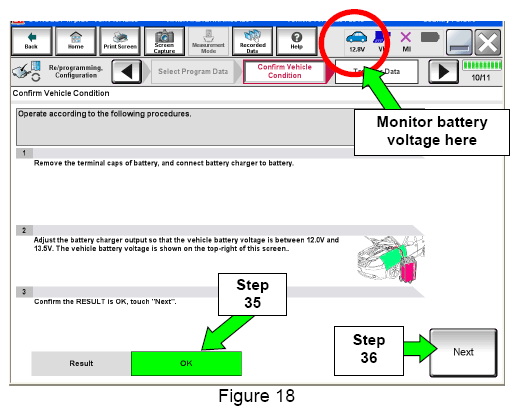

35. Make sure OK  is highlighted green (battery voltage must be between 12.0 and 15.5 Volts).
36. Select Next.
    IMPORTANT: Battery voltage must stay between 12.0 and 15.5 Volts  during reprogramming or TCM reprogramming may be interrupted and TCM may be damaged.

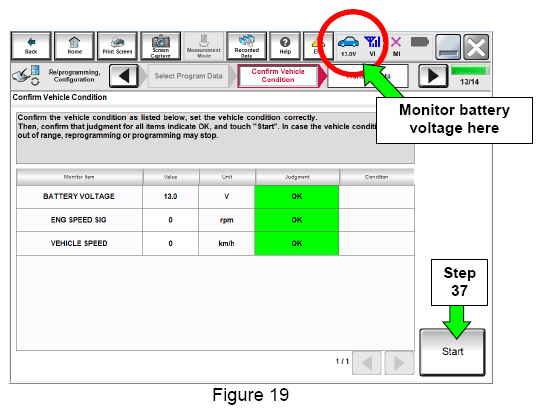

37. Select Start.
    • If a screen displays asking for "Please select your user group"; select USA/CANADA Dealers.

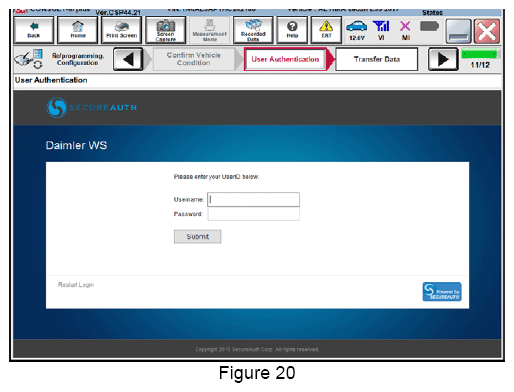

    • Before reprogramming will start, you will be required to enter your User Name and Password.
      • The CONSULT PC must be connected to the Internet (Wi-Fi or cable).
      • If you do not know your User Name and Password, contact your Service Manager.

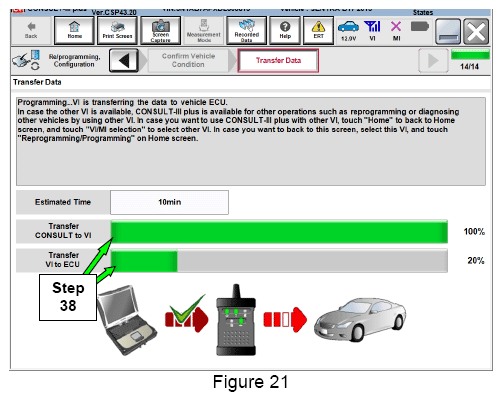

38. Wait for both progress bars to complete.

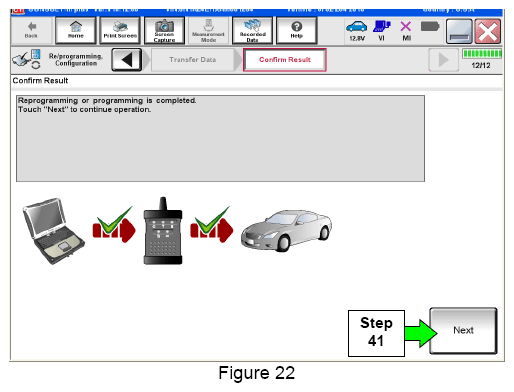

39. When the screen in Figure 22 displays, the reprogramming is complete.
    NOTE: If the screen in Figure 22 does not  display (which indicates reprogramming did not  complete), refer to the information on the next page.
40. Disconnect the battery charger (GR8) from the vehicle.
41. Select Next.
    NOTE: Additional steps/operations are required before C-III plus will provide the final reprogramming confirmation report. Continue with the reprogramming procedure on page 16.

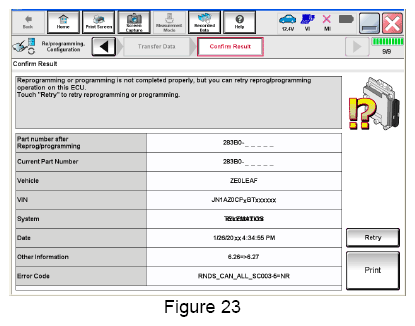

    If reprogramming does not complete and the "!?" symbol displays as shown in Figure 23:

    • Check battery voltage (12.0 - 15.5V).
    • Ignition ON, engine OFF.
    • External Bluetooth® devices are OFF.
    • All electrical loads are OFF.
    • Select Retry and follow the on screen instructions.
    NOTE: Retry may not go through on first attempt and can be selected more than once.

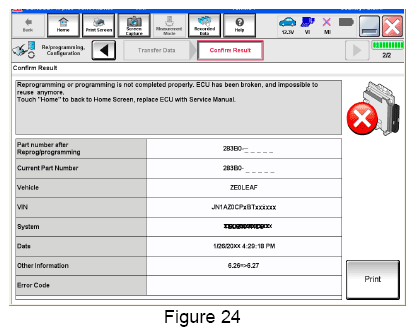

    If reprogramming does not complete and the "X" symbol displays as shown in Figure 24:

    • Do not disconnect the plus VI or shut down C-III plus if reprogramming does not complete.
    • Check battery voltage (12.0 - 15.5V).
    • CONSULT A/C adapter is plugged in.
    • Ignition ON, engine OFF.
    • Transmission in Park.
    • All C-III plus/plus VI cables are securely connected.
    • All C-III plus updates are installed.
    • Select Home, and then restart the reprogram procedure from the beginning.

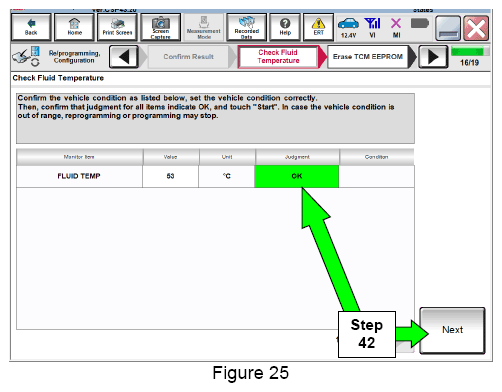

42. Confirm the Transmission Fluid temperature judgment is OK,  then select Next.
    • If the judgment is NG, drive the vehicle to warm the transmission until the judgment changes to OK.
43. Follow the on-screen instructions; maintain the following conditions:
    1. Parking brake set.
    2. Ignition ON, with the engine OFF.
    3. Press the Brake.
    4. Press accelerator between 1/4 and 1/2.
    5. Put shift selector in R.

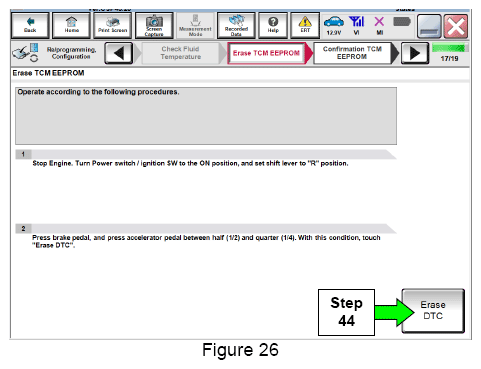

44. Select Erase DTC.
45. Follow the on-screen instructions; maintain the following conditions:
    1. Parking brake set.
    2. Ignition ON, with the engine OFF.
    3. Fully depress the accelerator.
    4. Put shift selector in R.

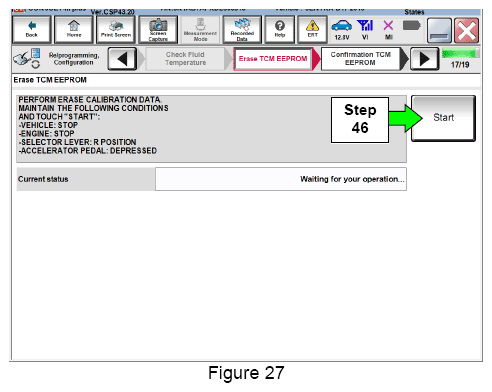

46. Select Start.

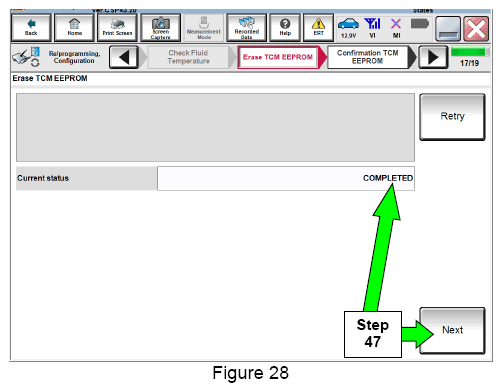

47. When COMPLETED  is displayed, select Next.

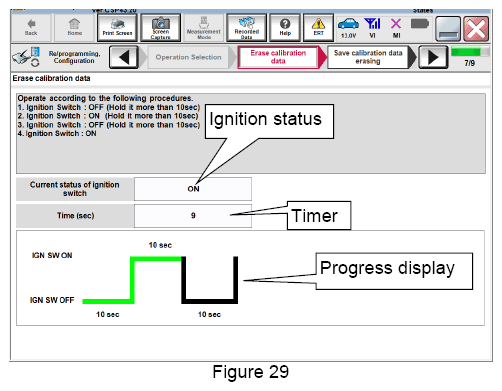

48. Operate the ignition per the on-screen instructions.

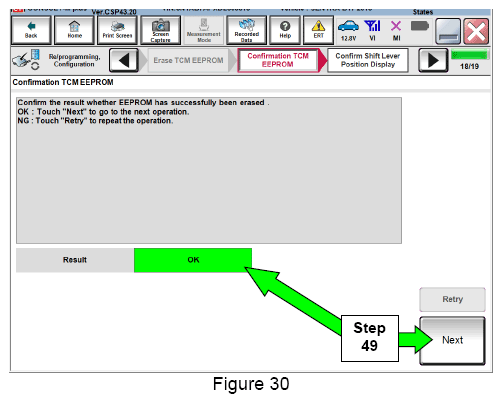

49. When OK  is displayed, select Next.

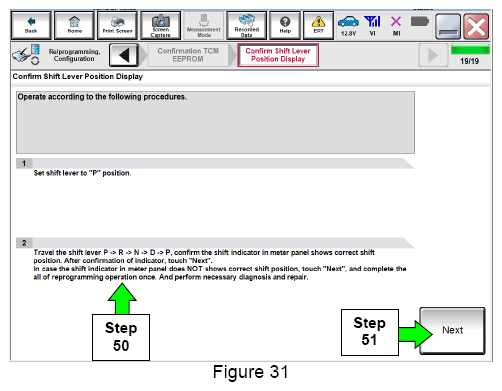

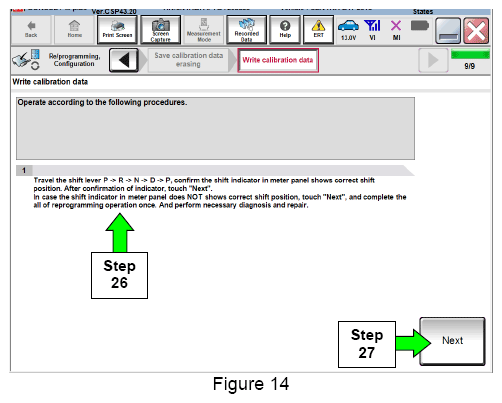

50. Operate the shift selector per the on-screen instructions.
    1. Move the shift selector to P,  then move P > R > N > D > P.
    2. Confirm the center display meter indicates the correct selector position.
51. Select Next.

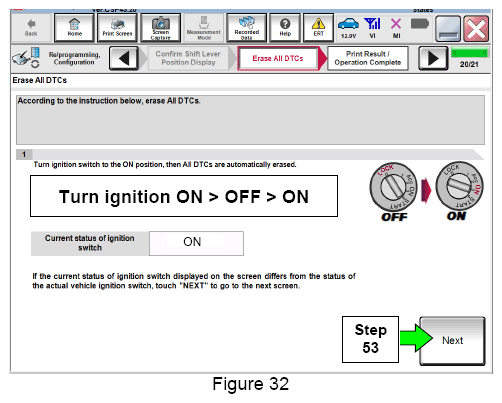

52. Erase all DTCs as follows:
    1. Turn the ignition OFF.
    2. Turn the ignition ON.
    3. Wait for DTC erase to complete.
53. Select Next.

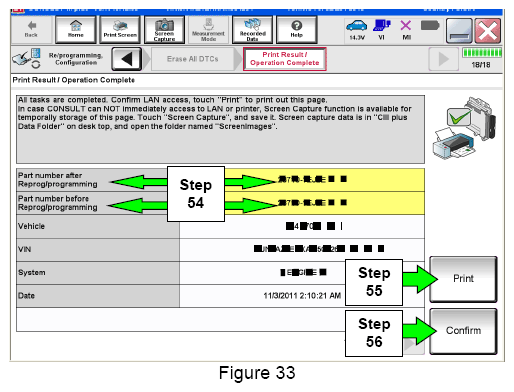

54. Verify the before and after part numbers are different.
55. Print a copy of this screen (Figure 33) and attach it to the repair order.
56. Select Confirm.
    NOTE: If you cannot print the above screen:

    1. Select Screen Capture.
    2. Name the file.
    3. Save the file in My Documents.
       • A copy of the screen is now saved in the CONSULT PC. It can be retrieved and printed at a later time.

    CONTROL VALVE REPLACEMENT (CONSULT-III plus Work Support)

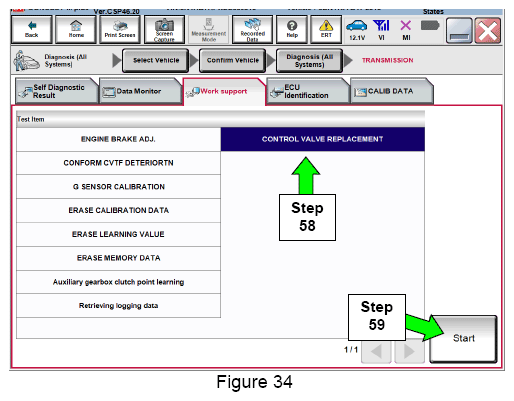

57. Navigate C-III plus to the screen shown in Figure 34.
    • Diagnosis (All Systems) > TRANSMISSION > Work support
58. Select CONTROL VALVE REPLACEMENT.
59. Select Start.
60. Follow the on-screen instructions; maintain the following conditions:
    1. Ignition ON, with the engine OFF.
    2. Press the Brake.
    3. Press accelerator between 1/4 and 1/2.
    4. Put shift selector in R.

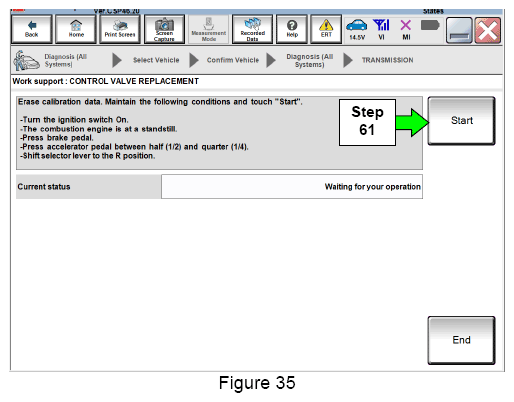

61. Select Start.
62. Release the accelerator and brake (shift selector remains in R).

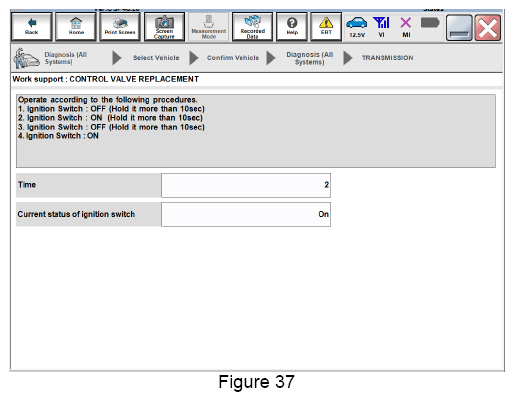

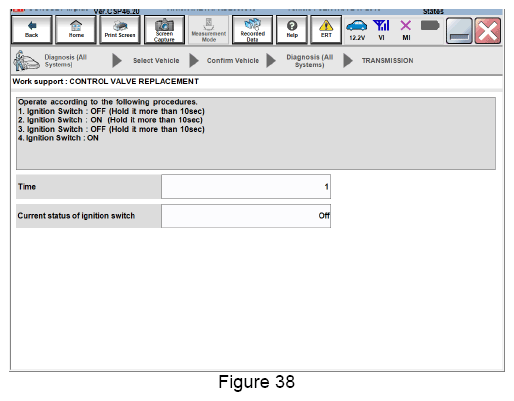

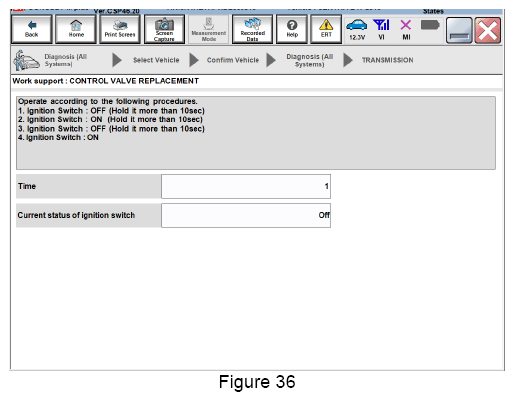

63. Turn the ignition OFF,  then wait 10 seconds.
64. Turn the ignition ON,  then wait 10 seconds.
65. Turn the ignition OFF,  then wait 10 seconds.
66. Turn the ignition ON.

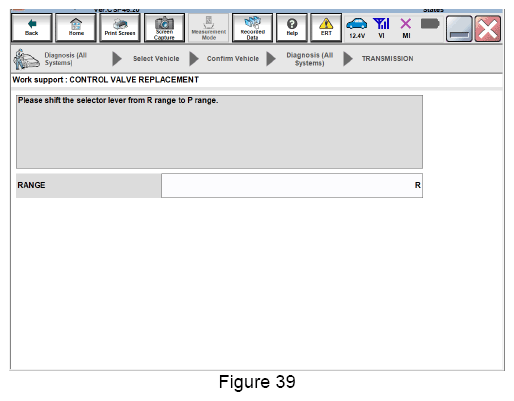

67. Move shift selector to P.

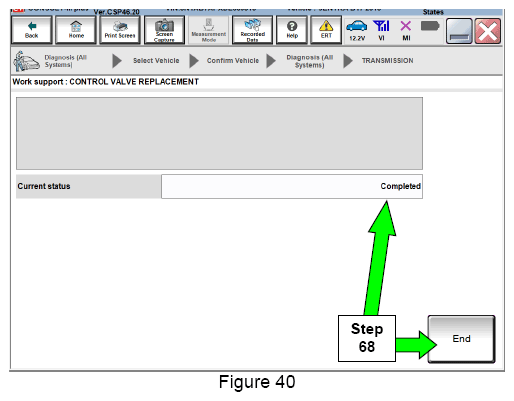

68. When COMPLETED  is displayed, select End.

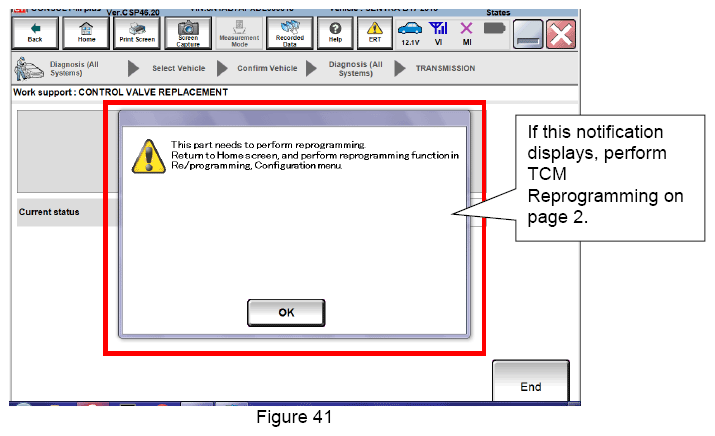

69. If the pop-up notification shown in Figure 41 displays, TCM Programming is not correct for the installed Control Valve.

    Select OK,  then perform TCM Reprogramming,  starting on page 2, ONLY if the notification shown below is displayed.

    ERASE LEARNING VALUE

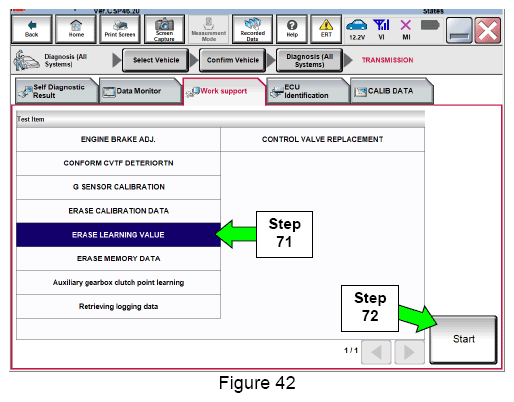

70. Navigate C-III plus to the screen shown in Figure 42.
    • Diagnosis (All Systems) > TRANSMISSION > Work support
71. Select ERASE LEARNING VALUE.
72. Select Start.
73. Follow the on-screen instructions; maintain the following conditions:
    1. Parking brake set.
    2. Ignition ON, with the engine OFF.
    3. Fully depress the accelerator.
    4. Put shift selector in R.

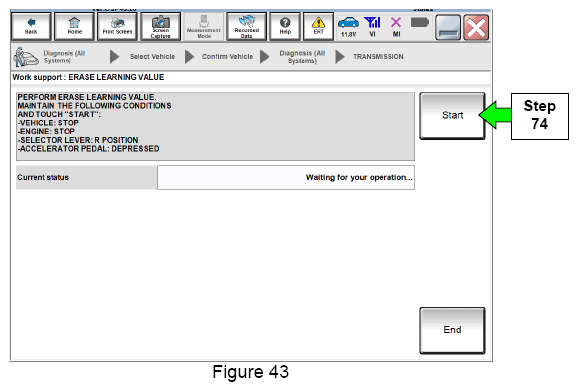

74. Select Start.

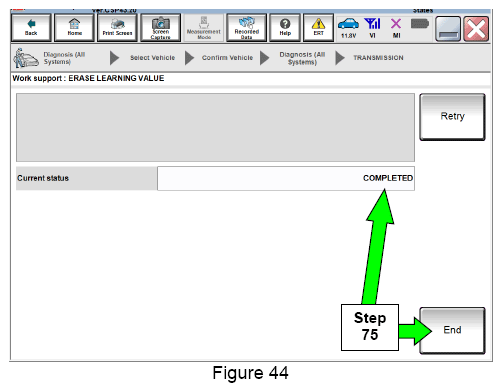

75. When COMPLETED  is displayed, select End.

    CONFORM CVTF DETERIORTN

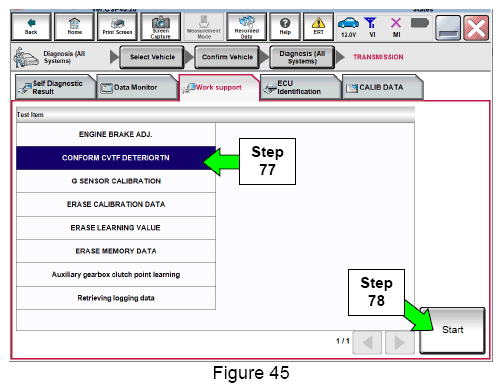

76. Navigate C-III plus to the screen shown in Figure 45.
    • Diagnosis (All Systems) > TRANSMISSION > Work support
77. Select CONFORM CVTF DETERIORTN.
78. Select Start.

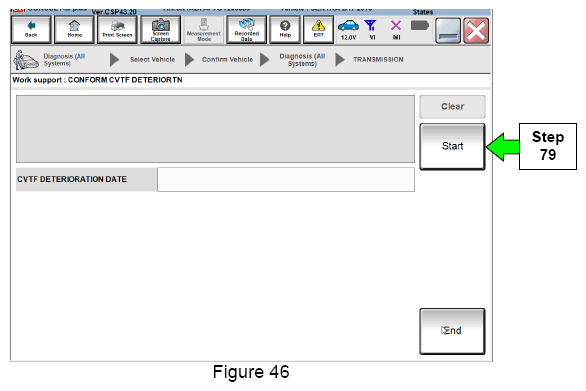

79. Select Start.

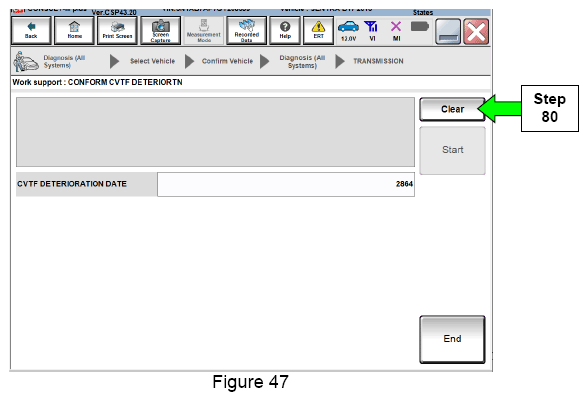

80. Select Clear.

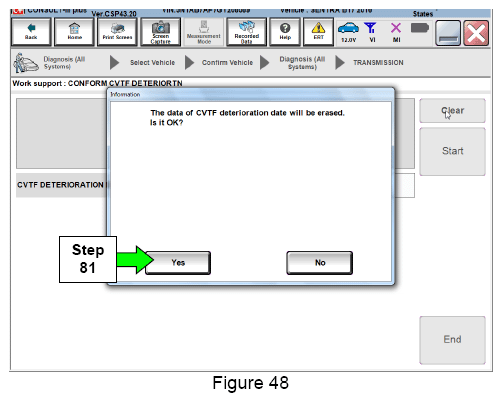

81. Select Yes.

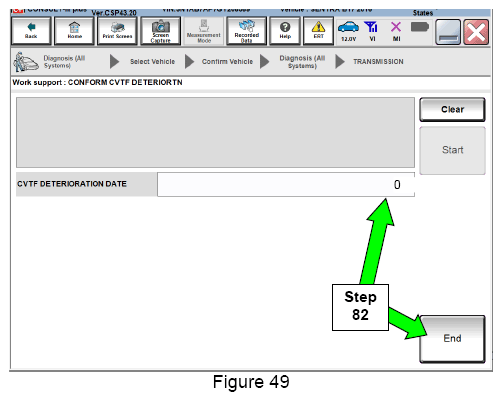

82. When CVFT DETERIORATION DATE  changes to "0", select End.

    AUXILIARY GEARBOX CLUTCH POINT LEARNING

    NOTE: Auxiliary gearbox clutch point learning will need to be completed twice.
83. Start the engine.
84. Set the parking brake, turn OFF the A/C, and then bring the engine to normal operating temperature range with CVT fluid temperature over 122°F (50°C).

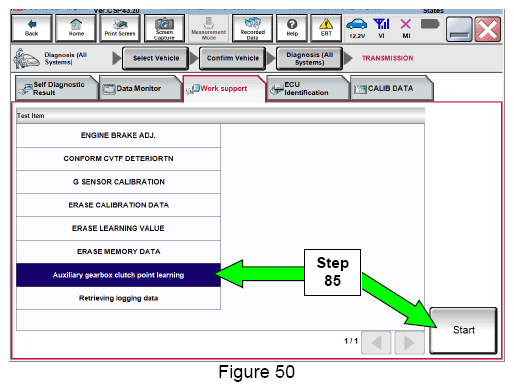

85. Select Auxiliary gearbox clutch point learning,  and then Start.

    Or

    • If this feature is not available in the vehicle that is being repaired, skip to Manual Auxiliary gearbox clutch point learning on  page 35.

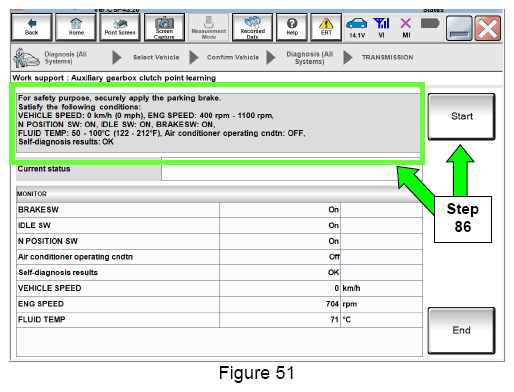

86. Follow the on screen instructions to meet all parameters displayed in Figure 51, and then select Start.

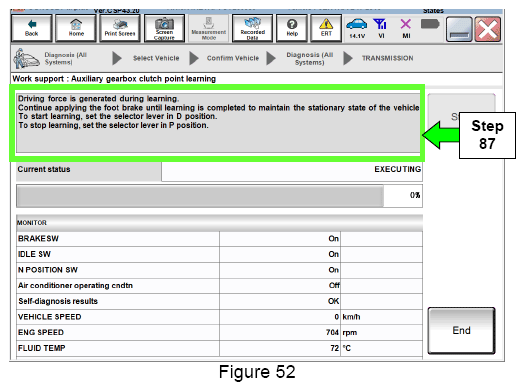

87. With the brake pedal still applied, move the shift selector to D.

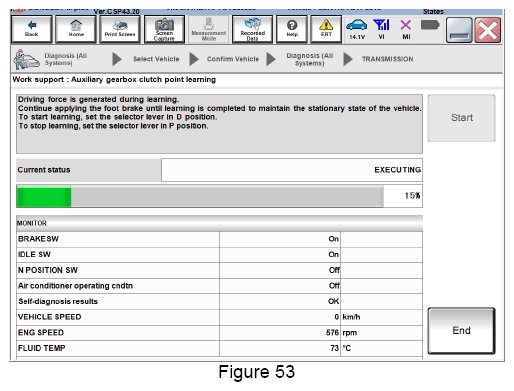

    • Figure 53 on the next page will display after moving the shift selector to D.
      NOTE: The Current status will show EXECUTING, but until the shift selector is moved to D,  Auxiliary gearbox clutch point learning will not complete.

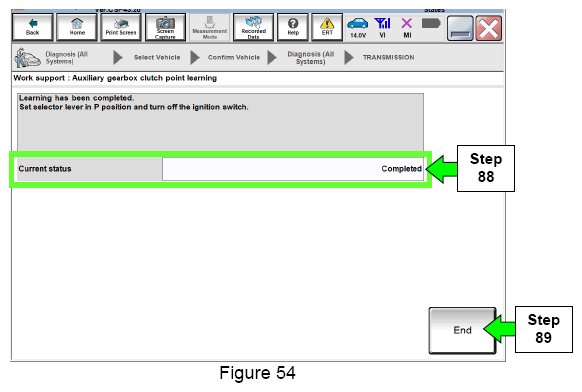

88. Continue to depress the brake pedal until the Current status shows "Completed" as shown in Figure 54.
    NOTE: This may take several minutes to complete.
89. Select End.
90. Move shift selector to P,  turn ignition OFF, and release the brake pedal.
91. Perform step  83 to step  90 one additional time (Total: Two times).
92. Turn OFF C-III plus.
93. Disconnect C-III plus from the vehicle.
94. Verify the CVT operates normally and no abnormal noises are heard during a test drive.
95. Erase DTCs (this is in addition to erasing the DTCs during TCM reprogramming).

Procedure complete.

MANUAL AUXILIARY GEARBOX CLUTCH POINT LEARNING

1. Start the engine and warm up the CVT fluid to 50°C (122°F).
   NOTE: Confirm the CVT fluid temperature by "FLUID TEMP" in "Data Monitor".
2. Turn the air conditioner OFF.
3. Move the shift selector to P,  turn the ignition OFF, and then wait 5 seconds.
4. Start the engine and allow it to idle for 5 seconds.
5. Turn the ignition OFF and then wait 30 seconds.
6. Perform Step "e" to Step "f" two more times (Total: Three times).
7. Start the engine.
8. Allow engine to idle for 30 seconds.
9. Move the shift selector to D.
10. Accelerate the vehicle from 0 km/h (0 MPH) to 65 km/h (40 MPH) at low throttle (0.5/8 - 1/8).
11. Decelerate the vehicle to 30 km/h (18 MPH) or less without using brakes.
12. Stop the vehicle and move the shift selector to P.
13. Turn the ignition OFF and wait 5 seconds or more.
14. Restart the engine.
15. Perform Step "j" to Step "o" four times (Total: Five times).
16. Move the shift selector to D.
17. Accelerate the vehicle from 0 km/h (0 MPH) to 45 km/h (28 MPH) at low throttle (0.5/8 - 1/8).
18. Stop the vehicle and move the shift selector to P.
19. Turn the ignition OFF for 5 seconds or more and then restart the engine.
20. Perform Steps "q" to Step "t" four times (Total: Five times).
21. Drive the vehicle and check that no shock occurs while shifting gears.

AMENDMENT HISTORY

PUBLISHED DATE	REFERENCE	DESCRIPTION
April 13, 2017	NTB17-041	Original bulletin published.
January 5, 2018	NTB17-041a	Changes made throughout.
December 18, 2018	NTB17-041b	APPLIED VEHICLES and SERVICE INFORMATION sections revised. CONTROL VALVE REPLACEMENT and ERASE LEARNING VALUE procedures added. ERASE MEMORY DATA procedure removed. Statement added to page 2.
