Inspection After Disassembly

WARNING: This page is about a different variant/trim than selected.

Check contact surface (<==) and sliding surface (<==) for excessive wear, uneven wear, bend, and damage. Replace if necessary.

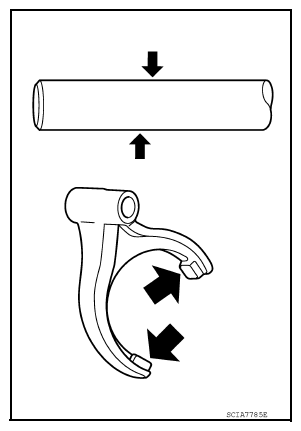

Fig 1: Locating Contact And Sliding Surfaces
G08989598Courtesy of NISSAN NORTH AMERICA, INC.
