Method Of Starting

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition ON.
  2. Turn the audio system OFF.

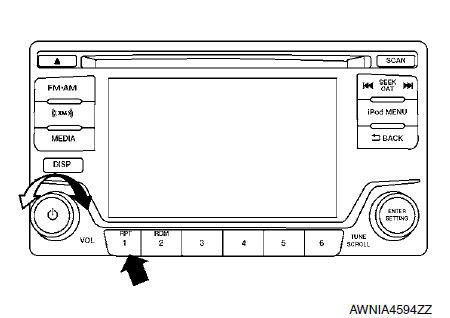

  3. While pressing the preset 1 button, turn the volume control dial clockwise or counterclockwise for 40 clicks or more. Shifting from current screen to previous screen is performed by pressing BACK button.
    G00580795Courtesy of NISSAN NORTH AMERICA, INC.
  4. The trouble diagnosis initial screen is displayed, and Self Diagnosis or Confirmation/Adjustment can be selected.
    G05219839Courtesy of NISSAN NORTH AMERICA, INC.
