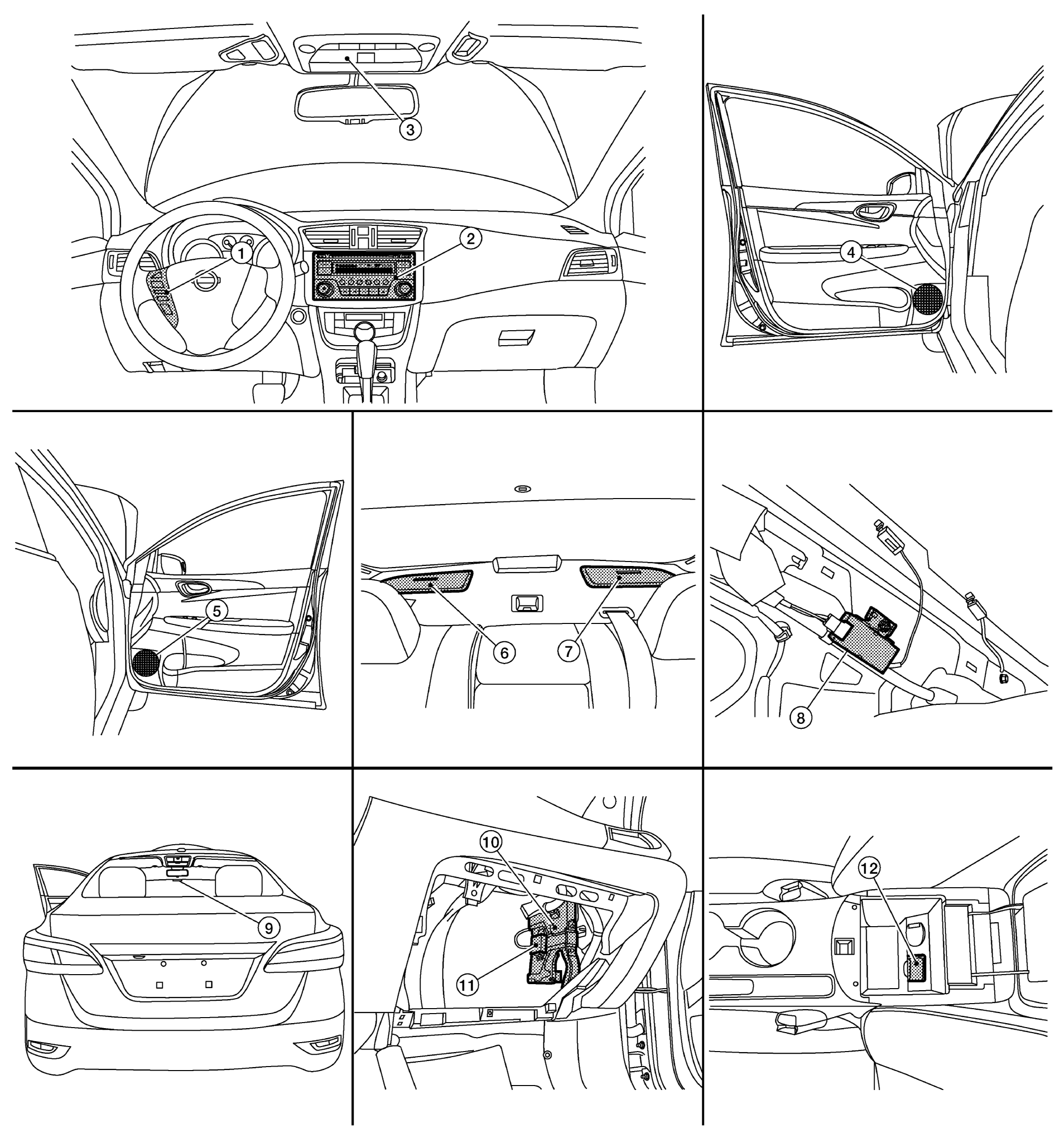

Component Location
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Steering switches |
2. |
Audio unit |
3. |
Microphone |
| 4. |
Front door speaker LH |
5. |
Front door speaker RH |
6. |
Rear speaker RH |
| 7. |
Rear speaker LH |
8. |
Antenna amp. |
9. |
Window antenna |
| 10. |
Bluetooth®
control unit |
11. |
Bluetooth®
antenna |
12. |
USB interface and AUX jack |
