Switch Name And Function

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

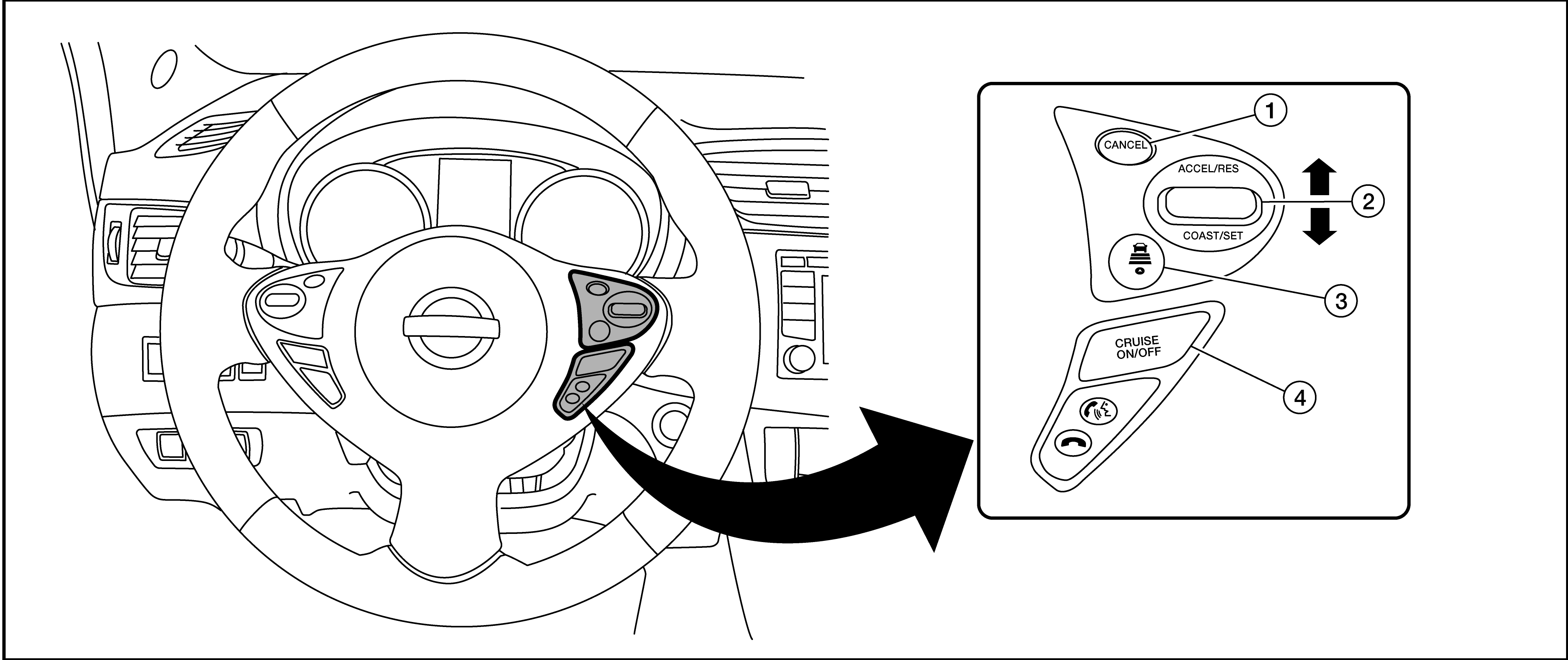

GNSDB116258Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
1. CANCEL switch Deactivates the system without erasing the set speed
2. RES/+ SET/- switch Sets desired cruise speed or reduces speed incrementally
  • Push and hold the switch to decrease the set speed by 8 km/h (5 MPH).
  • Push then quickly release the switch to decrease the set speed by 1.6 km/h (1 MPH).
NOTE:

The minimum set speed is 32 km/h (20 MPH).


Resumes set speed or increases speed incrementally
  • Push and hold the switch to increase the set speed by 8 km/h (5 MPH).
  • Push then quickly release the switch to increase the set speed by 1.6 km/h (1 MPH).
3. DISTANCE switch Changes the following distance from: Long, Middle, Short
4. MAIN switch Master switch to activate the system (Press for less than 1.5 seconds.)
