Commercial Service Tool

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Tool name		Description

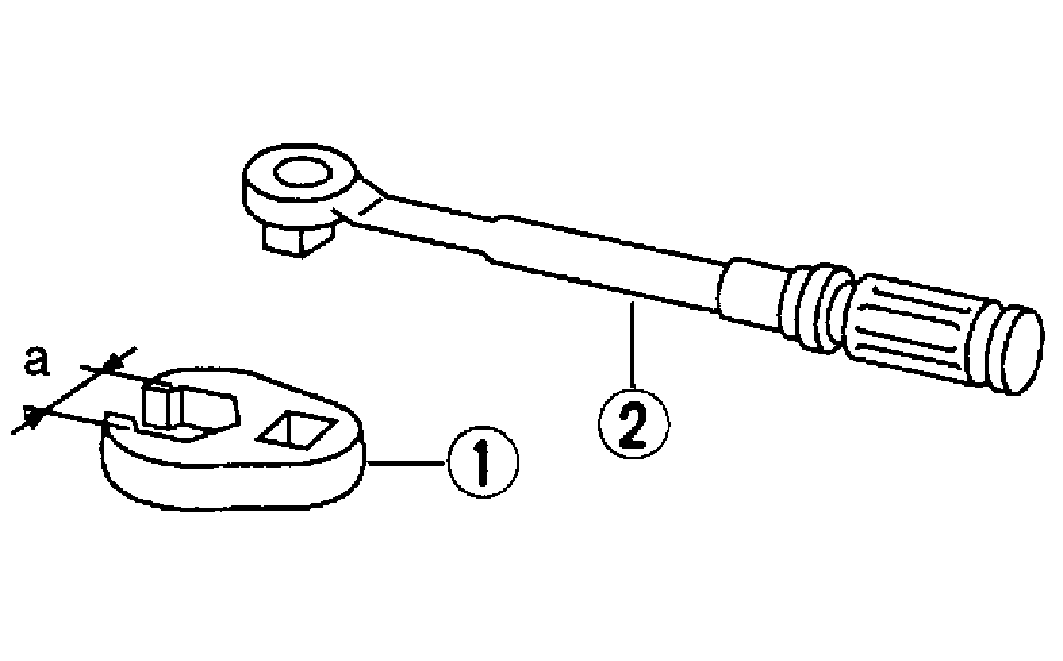

1. Flare nut crowfoot 2. Torque wrench	Courtesy of NISSAN NORTH AMERICA, INC.	Tightening brake tube flare nuts a: 10 mm (0.39 in)/12 mm (0.47 in)
Pin punch	Courtesy of NISSAN NORTH AMERICA, INC.	Removing and installing reservoir tank a: 4 mm (0.16 in)

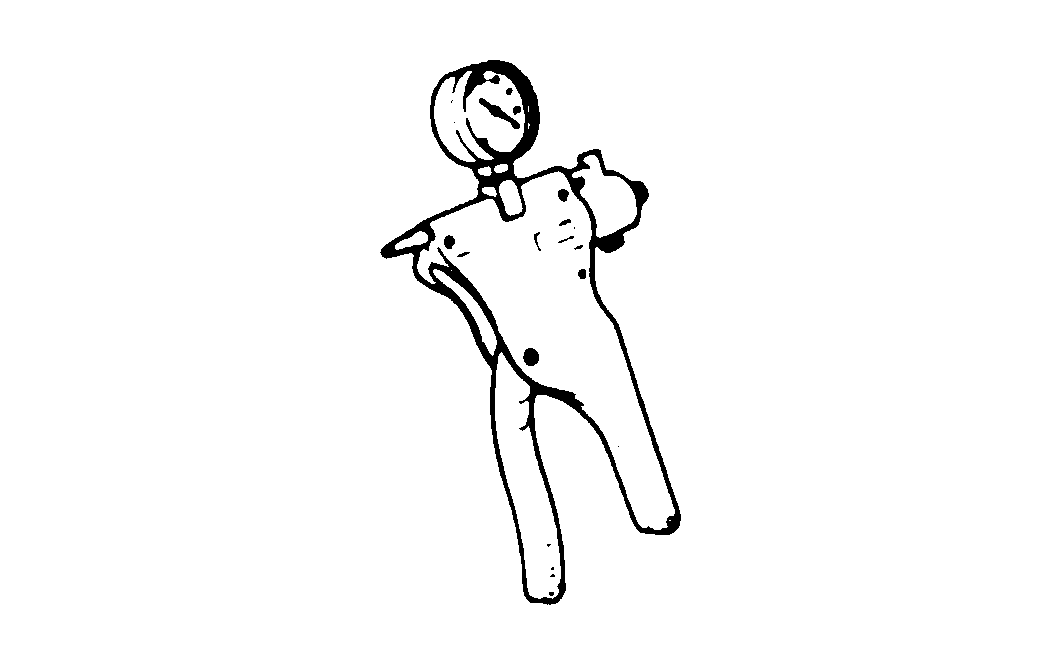

Vacuum pump	Courtesy of NISSAN NORTH AMERICA, INC.	Air tight Inspection of check valve
Brake caliper wrench	Courtesy of NISSAN NORTH AMERICA, INC.	Return the piston

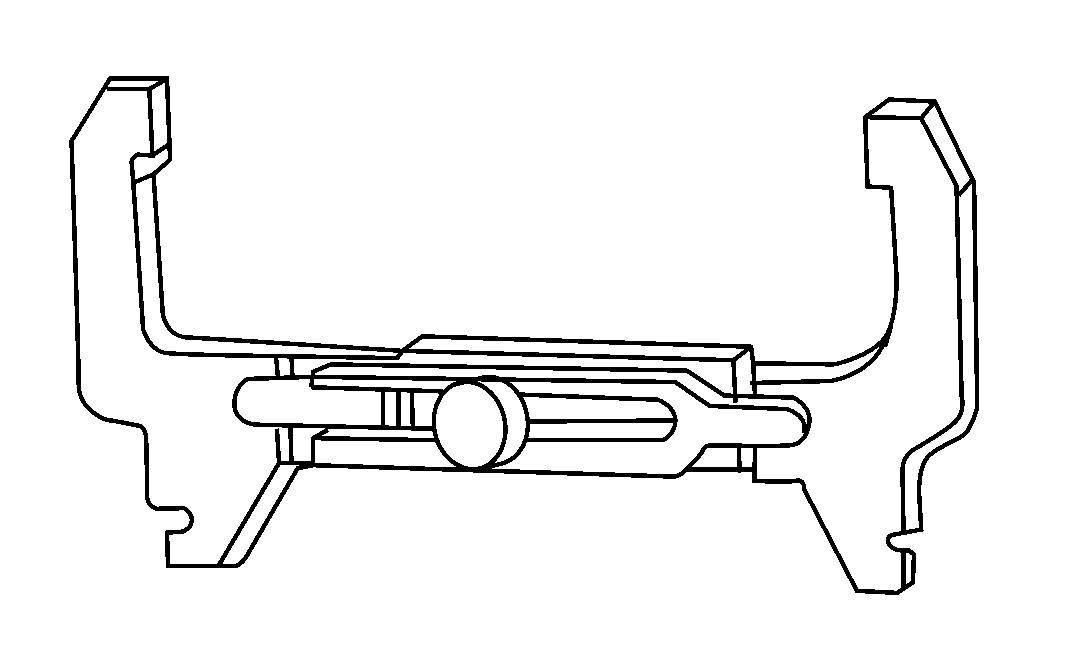

Brake drum clearance gauge	Courtesy of NISSAN NORTH AMERICA, INC.	Measuring rear rotor drum inner diameter
Power tool	Courtesy of NISSAN NORTH AMERICA, INC.	Loosening nuts, screws and bolts
