Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

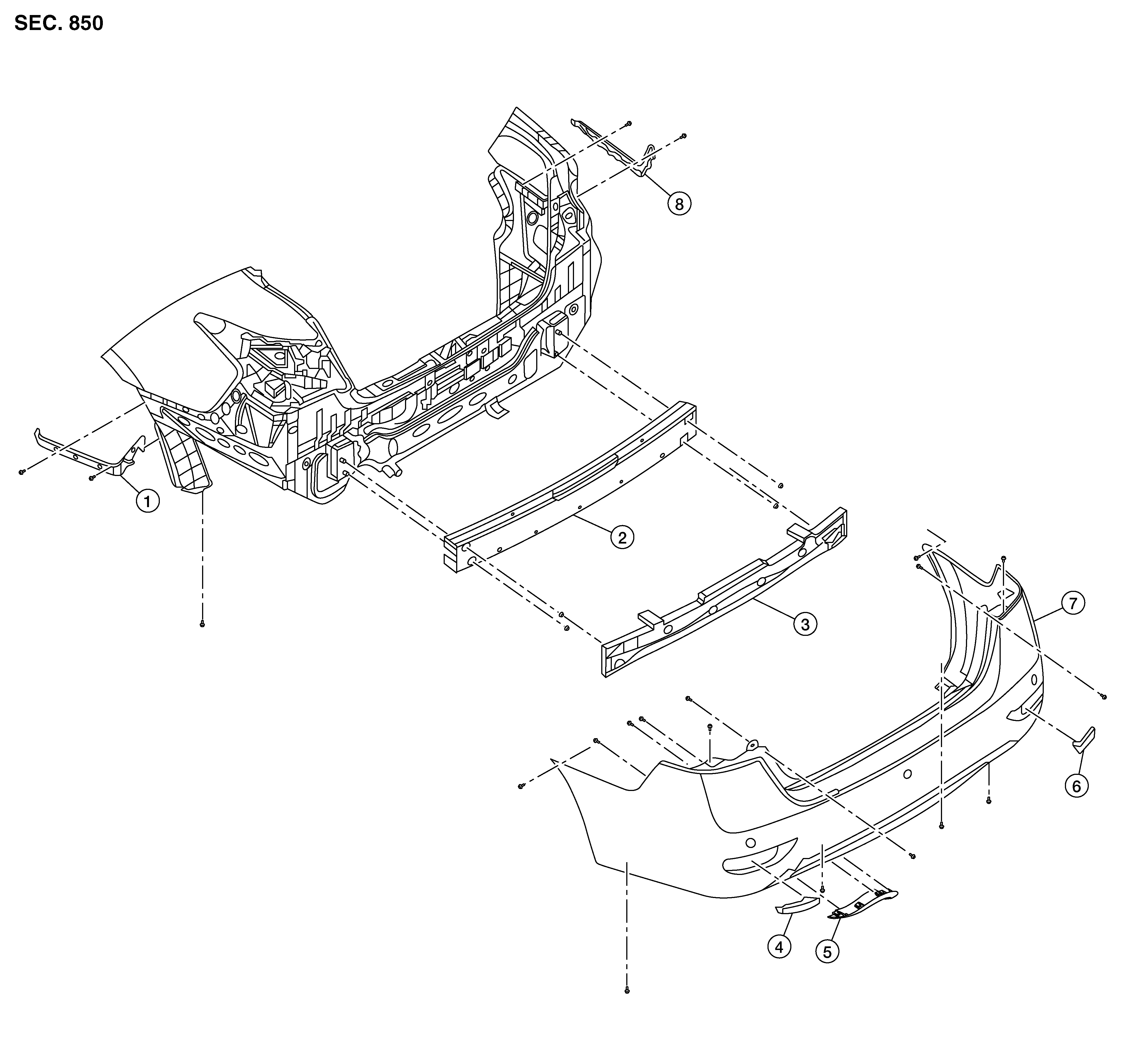

Except for NISMO
| 1. | Rear bumper side bracket (LH) | 2. | Rear bumper reinforcement | 3. | Rear bumper energy absorber |
| 4. | Rear bumper fascia reflector (LH) | 5. | Rear bumper finisher | 6. | Rear bumper fascia reflector (RH) |
| 7. | Rear bumper fascia | 8. | Rear bumper side bracket (RH) |

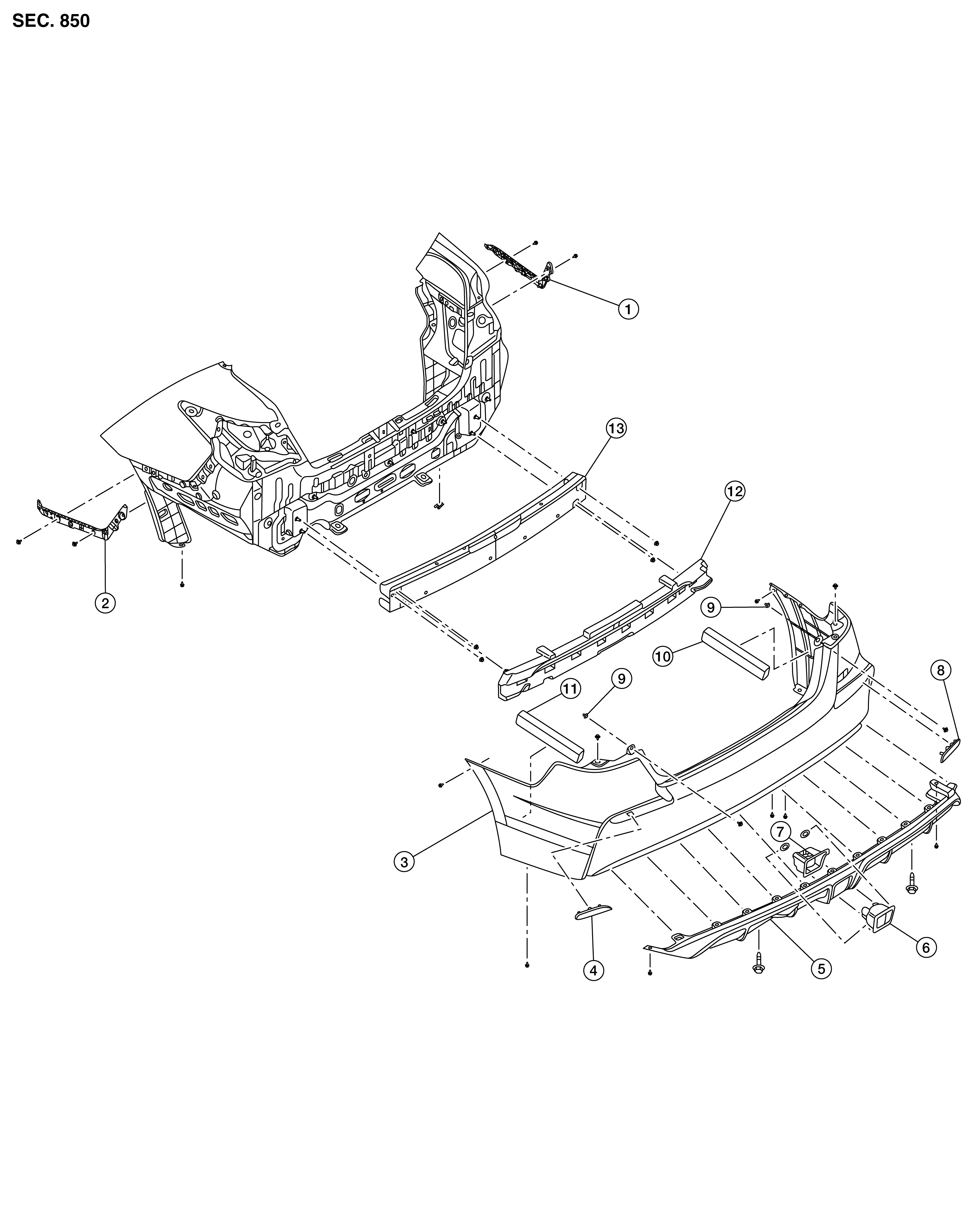

For NISMO
| 1. | Rear bumper side bracket (RH) | 2. | Rear bumper side bracket (LH) | 3. | Rear bumper fascia |
| 4. | Rear bumper fascia reflector (LH) | 5. | Rear bumper lower fascia | 6. | Rear bumper fascia reflector (center) |
| 7. | Rear bumper fascia reflector housing (center) | 8. | Rear bumper fascia reflector (RH) | 9. | Grommet |
| 10. | Rear bumper side spacer (RH) | 11. | Rear bumper side spacer (LH) | 12. | Rear bumper energy absorber |
| 13. | Rear bumper reinforcement |
