Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

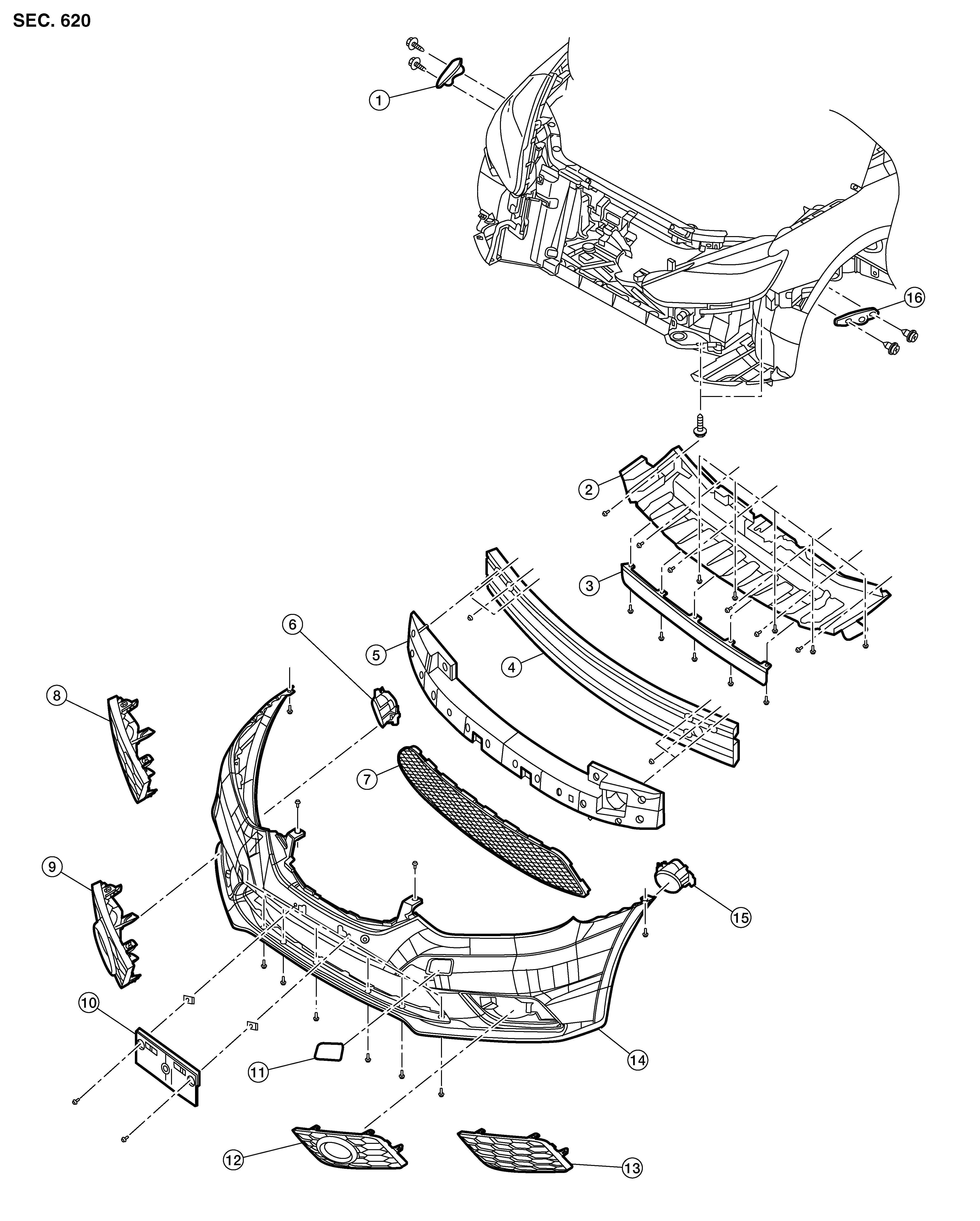

Except for NISMO
| 1. | Front bumper side bracket (RH) | 2. | Front under cover | 3. | Front air spoiler |
| 4. | Front bumper reinforcement | 5. | Front energy absorber | 6. | Front fog lamp (RH) (if equipped) |
| 7. | Front bumper lower grille | 8. | Front bumper fascia finisher (RH) (without fog lamp) | 9. | Front bumper fascia finisher (RH) (with fog lamp) |
| 10. | Front license plate bracket | 11. | Tow cover | 12. | Front bumper fascia finisher (LH) (with fog lamp) |
| 13. | Front bumper fascia finisher (LH) (without fog lamp) | 14. | Front bumper fascia | 15. | Front fog lamp (LH) (if equipped) |
| 16. | Front bumper side bracket (LH) |

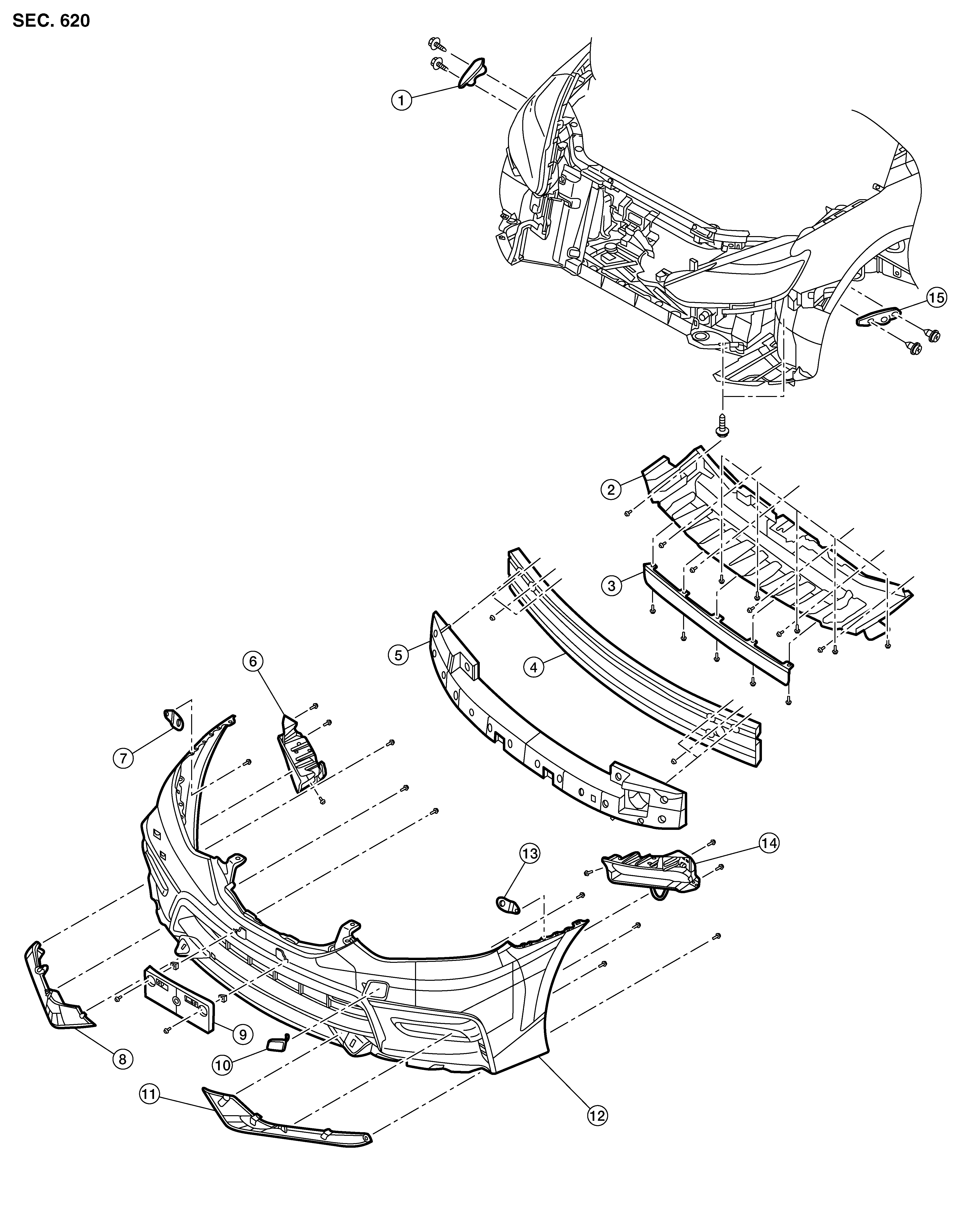

For NISMO
| 1. | Front bumper side bracket (RH) | 2. | Front under cover | 3. | Front air spoiler |
| 4. | Front bumper reinforcement | 5. | Front energy absorber | 6. | Daytime running light (RH) |
| 7. | Front bumper bracket assembly (RH) | 8. | Front bumper molding (RH) | 9. | Front license plate bracket (if equipped) |
| 10. | Tow cover | 11. | Front bumper molding (LH) | 12. | Front bumper fascia |
| 13. | Front bumper bracket assembly (LH) | 14. | Daytime running light (LH) | 15. | Front bumper side bracket (LH) |
