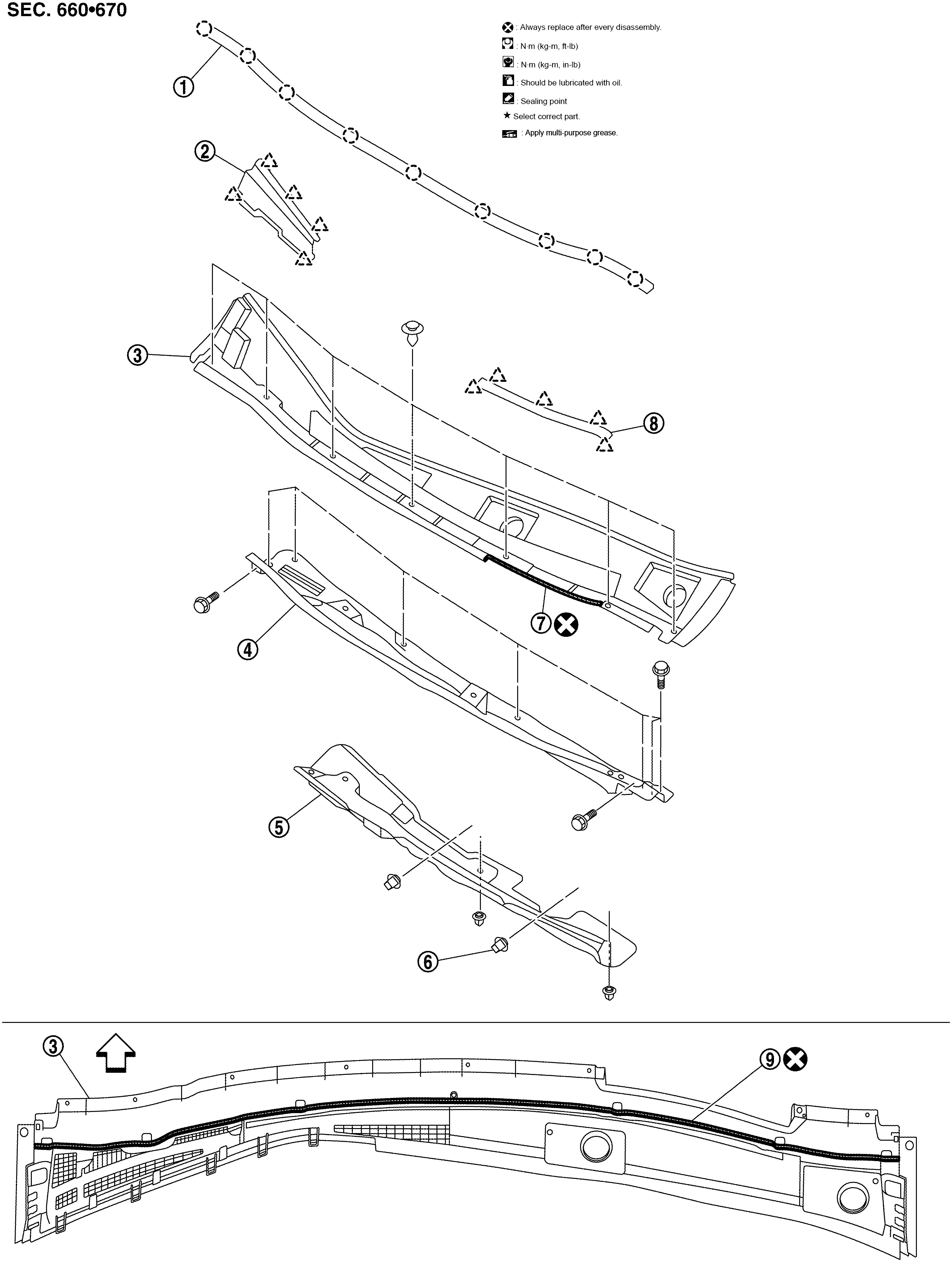

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cowl top seal	2.	Cowl top grille cap	3.	Cowl top cover
4.	Cowl top extension	5.	Cowl top extension insulator	6.	Clip
7.	EPT seal [t: 3.0 mm (0.12 in)	8.	Cowl top cover cap	9.	EPT seal [t: 5.0 mm (0.20 in)]
	Pawl		Clip		Front
