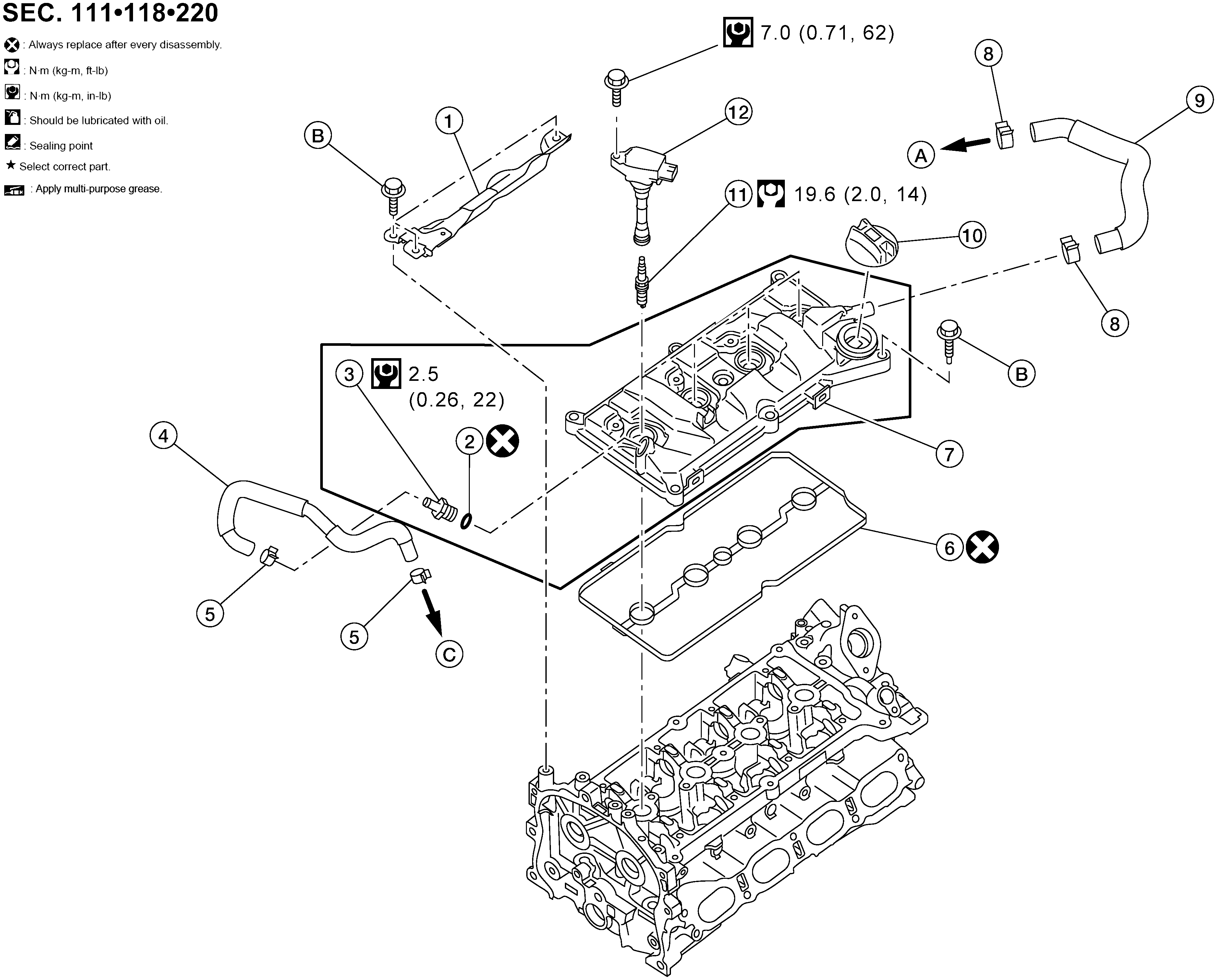

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Rocker cover protector | 2. | O-ring | 3. | PCV valve |
| 4. | PCV hose | 5. | Clamp | 6. | Rocker cover gasket |
| 7. | Rocker cover | 8. | Clamp | 9. | Blowby hose |
| 10. | Oil filler cap | 11. | Spark plug | 12. | Ignition coil |
| A. | To turbocharger inlet tube | B. | Refer to REMOVAL AND INSTALLATION . | C. | To intake manifold |
