Engine Cooling System Schematic

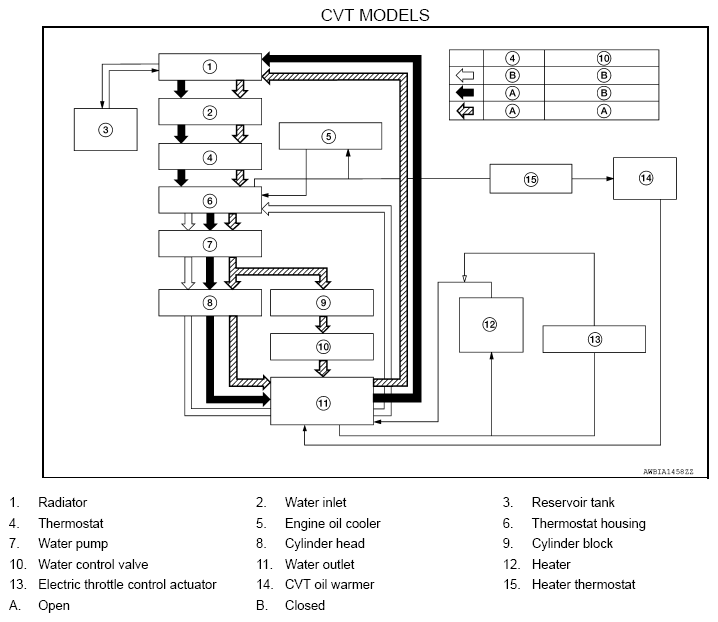

Fig 1: Engine Cooling System Schematic (1 Of 4)
G08989108Courtesy of NISSAN NORTH AMERICA, INC.

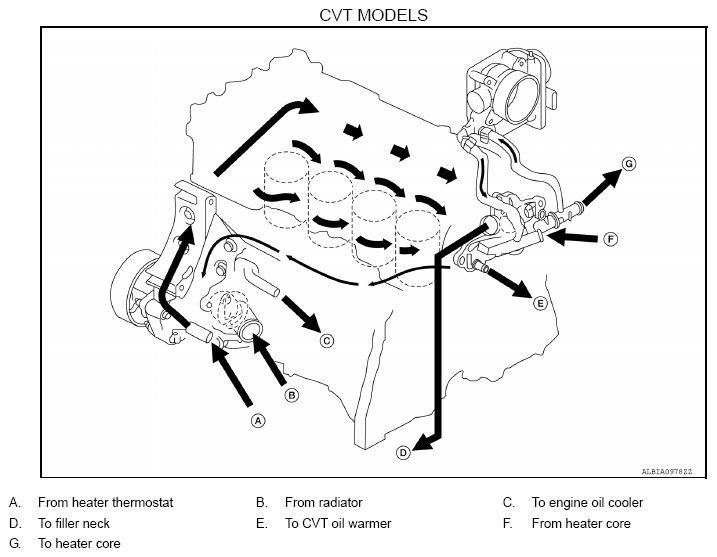

Fig 2: Engine Cooling System Schematic (2 Of 4)
G08989109Courtesy of NISSAN NORTH AMERICA, INC.

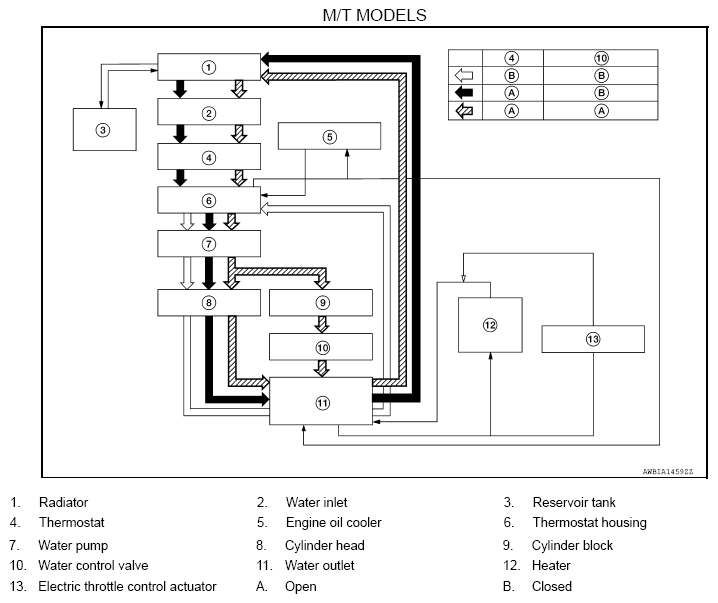

Fig 3: Engine Cooling System Schematic (3 Of 4)
G08989110Courtesy of NISSAN NORTH AMERICA, INC.

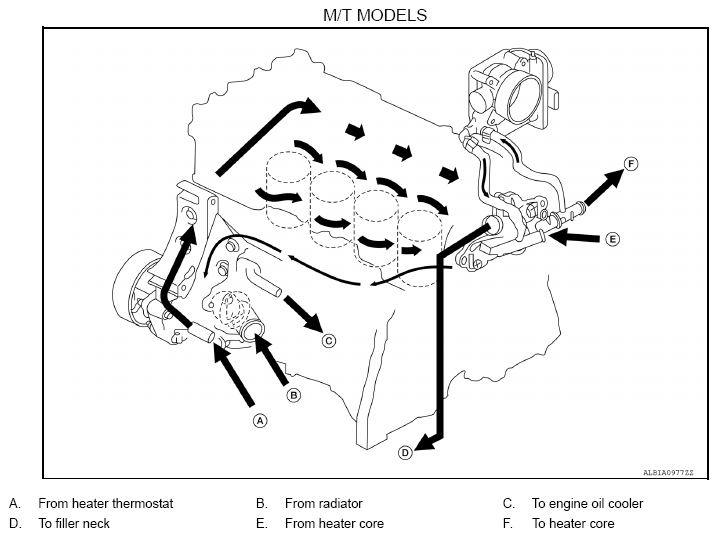

Fig 4: Engine Cooling System Schematic (4 Of 4)
G08989111Courtesy of NISSAN NORTH AMERICA, INC.
