Component Inspection

  1. CHECK IGNITION RELAY
    1. Turn ignition switch OFF.
    2. Remove ignition relay.
    3. Check the continuity between ignition relay terminals.
      Terminals Condition Continuity
      3 and 5 12 V direct current supply between terminals 1 and 2 Yes
      No current supply No

      Is the inspection result normal?

      YES: Inspection End.

      NO: Replace ignition relay

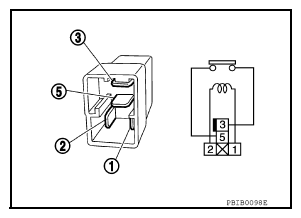

      Fig 1: Relay Connector & Circuit Identification
      G08991781Courtesy of NISSAN NORTH AMERICA, INC.
