EXCEPT 6M/T: Exploded View

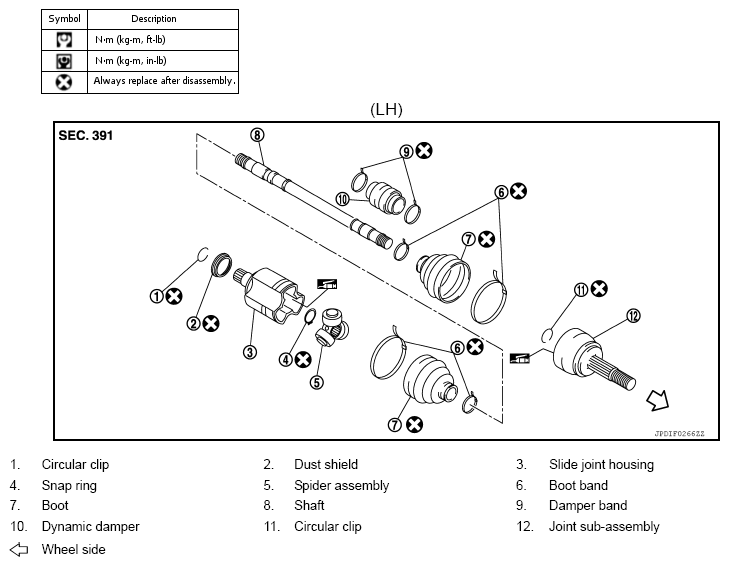

Fig 1: Exploded View Of Front Drive Shaft (LH Except 6M/T)
G08989919Courtesy of NISSAN NORTH AMERICA, INC.

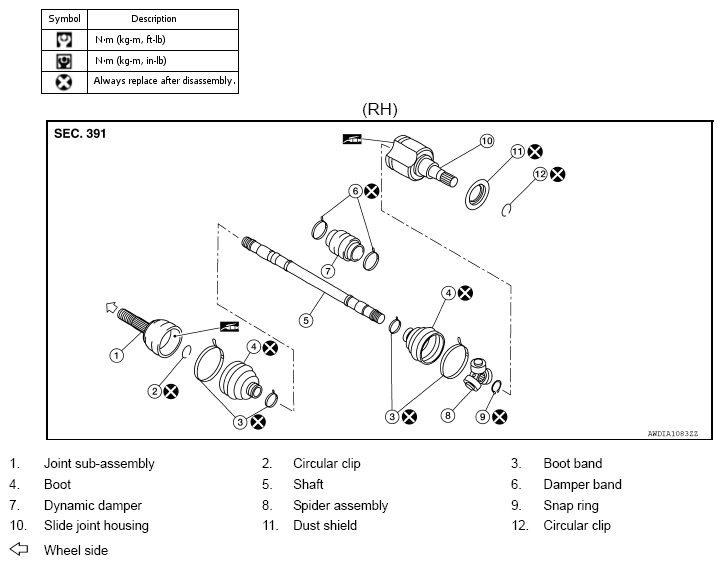

Fig 2: Exploded View Of Front Drive Shaft (RH Except 6M/T)
G08989920Courtesy of NISSAN NORTH AMERICA, INC.
