Moonroof Unit Assembly
>>
Exploded View
Exploded View

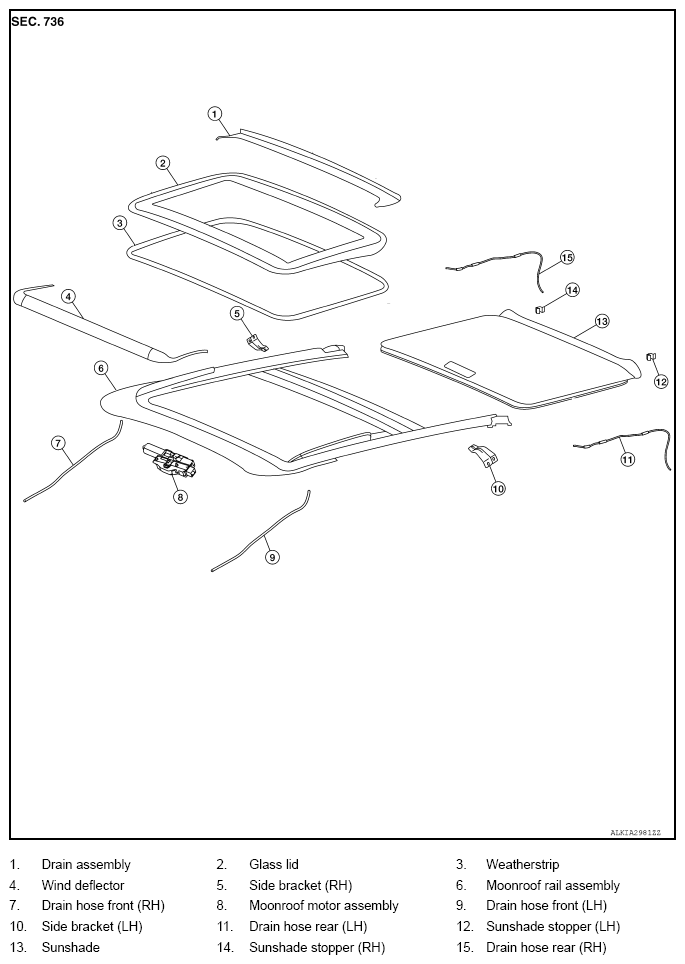

Fig 1: Exploded View Of Moonroof Unit Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
