Transfer Case: Disassembly

  1. Remove adapter case. Refer to "DISASSEMBLY ".
  2. Remove ring gear shaft assembly. Refer to "DISASSEMBLY ".
  3. Remove drive pinion assembly. Refer to "DISASSEMBLY ".
  4. Tap the outer race of drive pinion bearing from transfer case with a brass rod to remove outer race of drive pinion bearing (front side and rear side).
    CAUTION: Never damage transfer case.

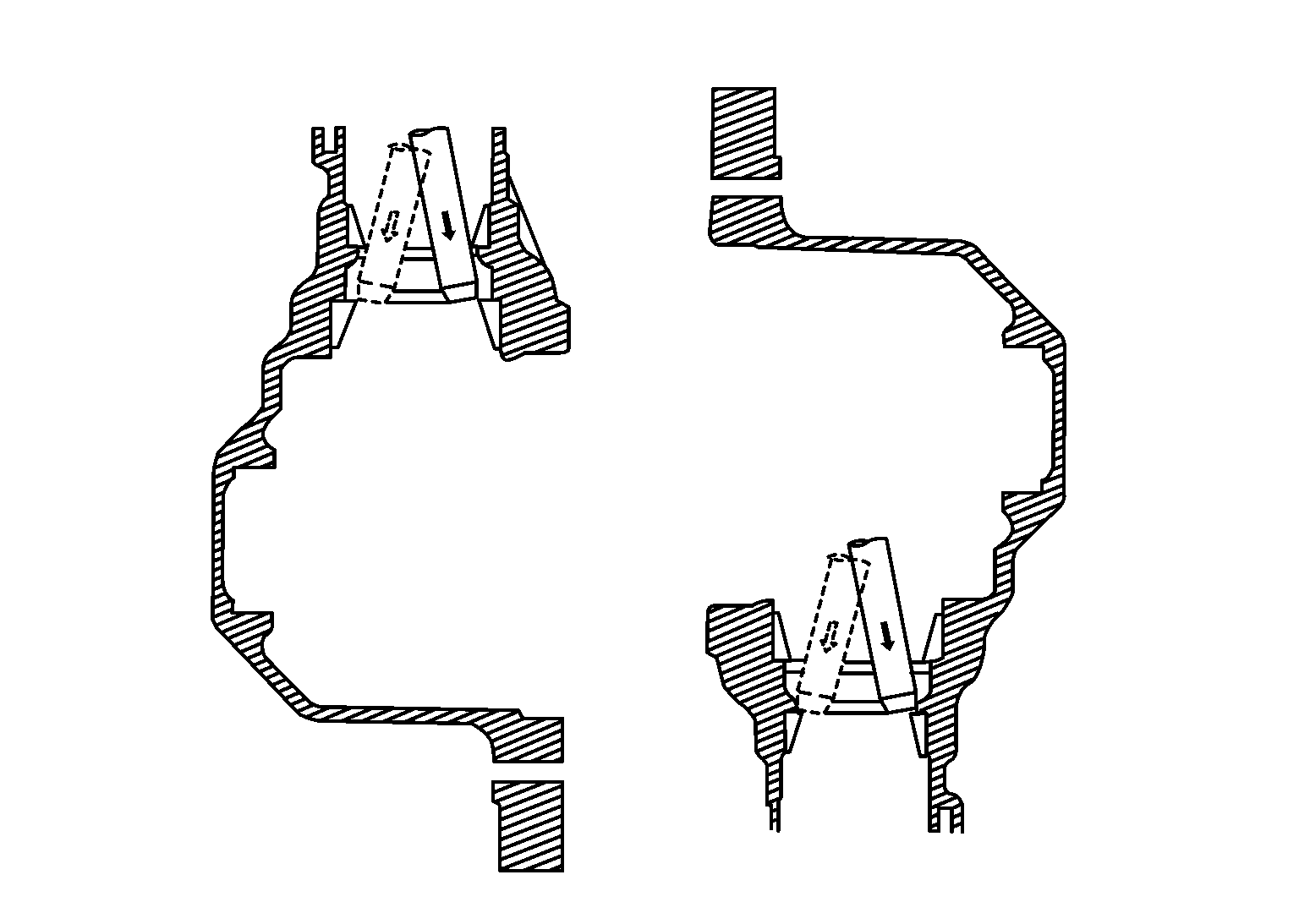

    Fig 1: Tapping Outer Race Of Drive Pinion Bearing Using Brass Rod
    G05370223Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove air breather hose from transfer case.
    CAUTION: Never damage air breather hose.
  6. Remove air breather tube from transfer case.
  7. Remove the filler plug and drain plug from the transfer case, and then remove each gasket.
  8. Remove plug from transfer case.
