Unit Disassembly And Assembly
>>
Adapter Case
>>
Exploded View
Exploded View

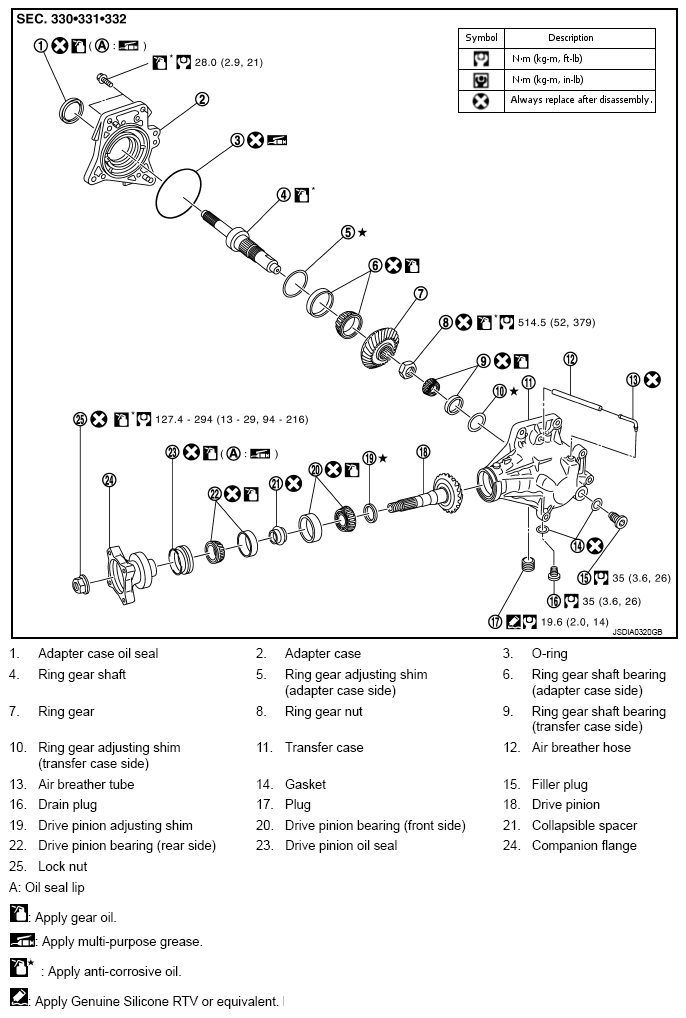

Fig 1: Exploded View Of Adapter Case
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols not described above.
