2WD: Exploded View
2WD: Exploded View

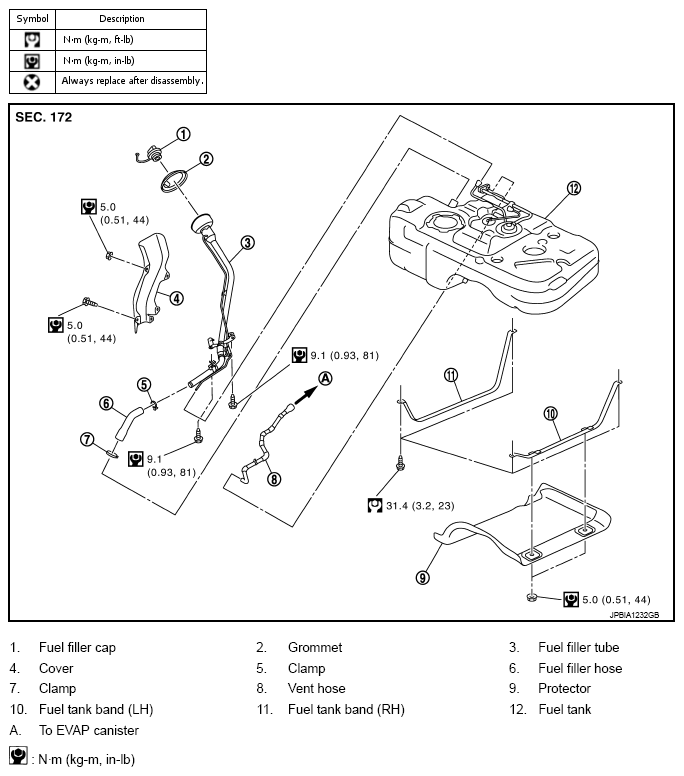

Fig 1: Exploded View Of Fuel Tank (2WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
