Rogue S, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System (IPDM/Er)
>>
System Description
>>
Relay Control System
>>
System Diagram
System Diagram

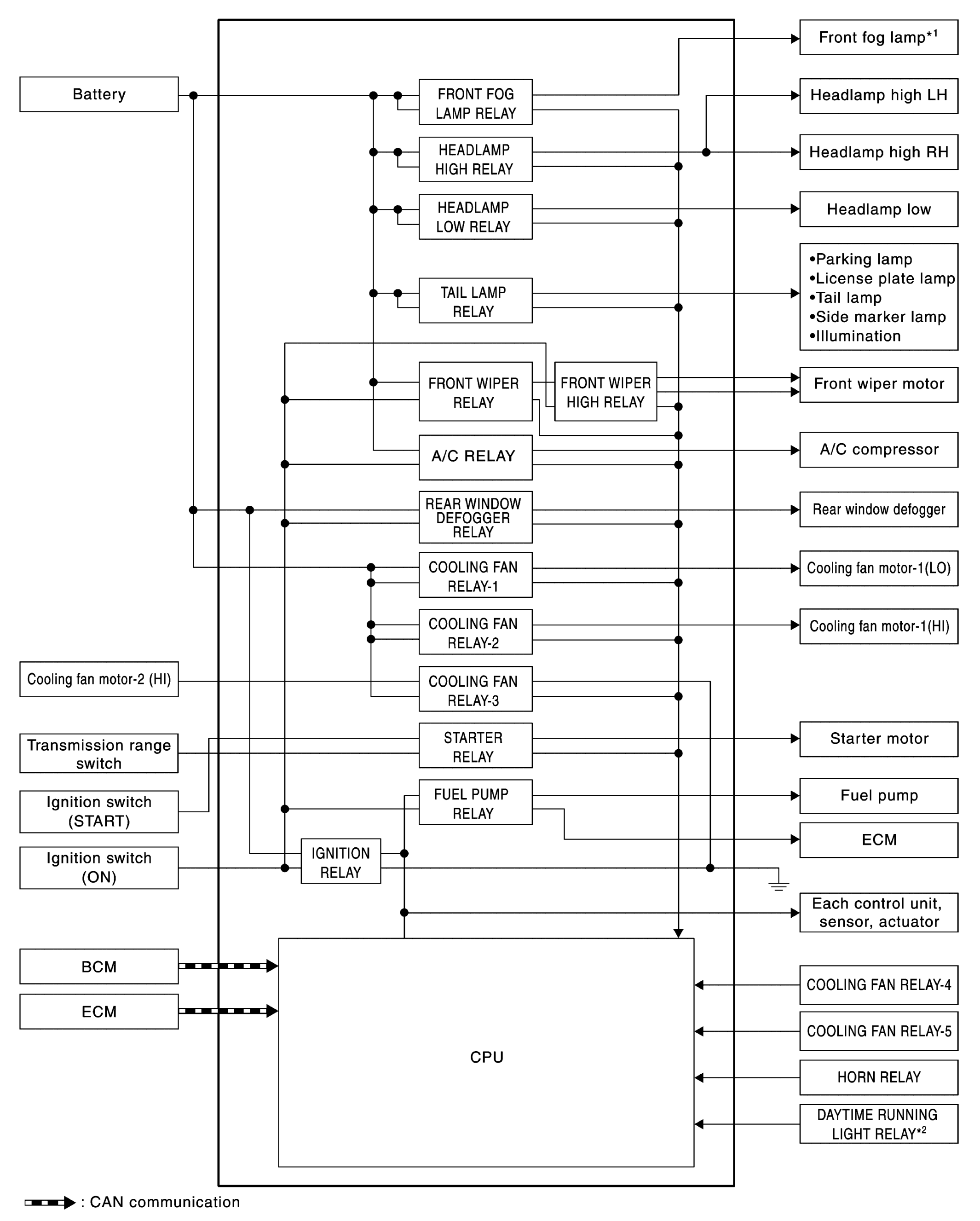

Fig 1: Relay Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
*1: With front fog lamp system
*2: With daytime running light system
Courtesy of NISSAN NORTH AMERICA, INC.
