Exploded View: Disassembly

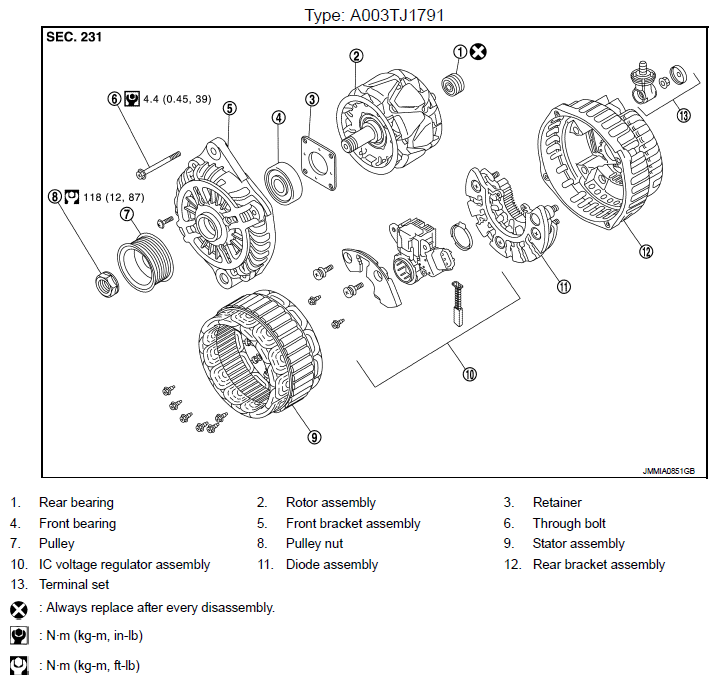

Fig 1: Disassembled View Of Alternator With Torque Specifications (Type - A003TJ1791)

G08962103

Courtesy of NISSAN NORTH AMERICA, INC.
