Valve Operation [VDC Function, TCS Function And Brake Limited Slip Differential (BLSD) Function: Notes

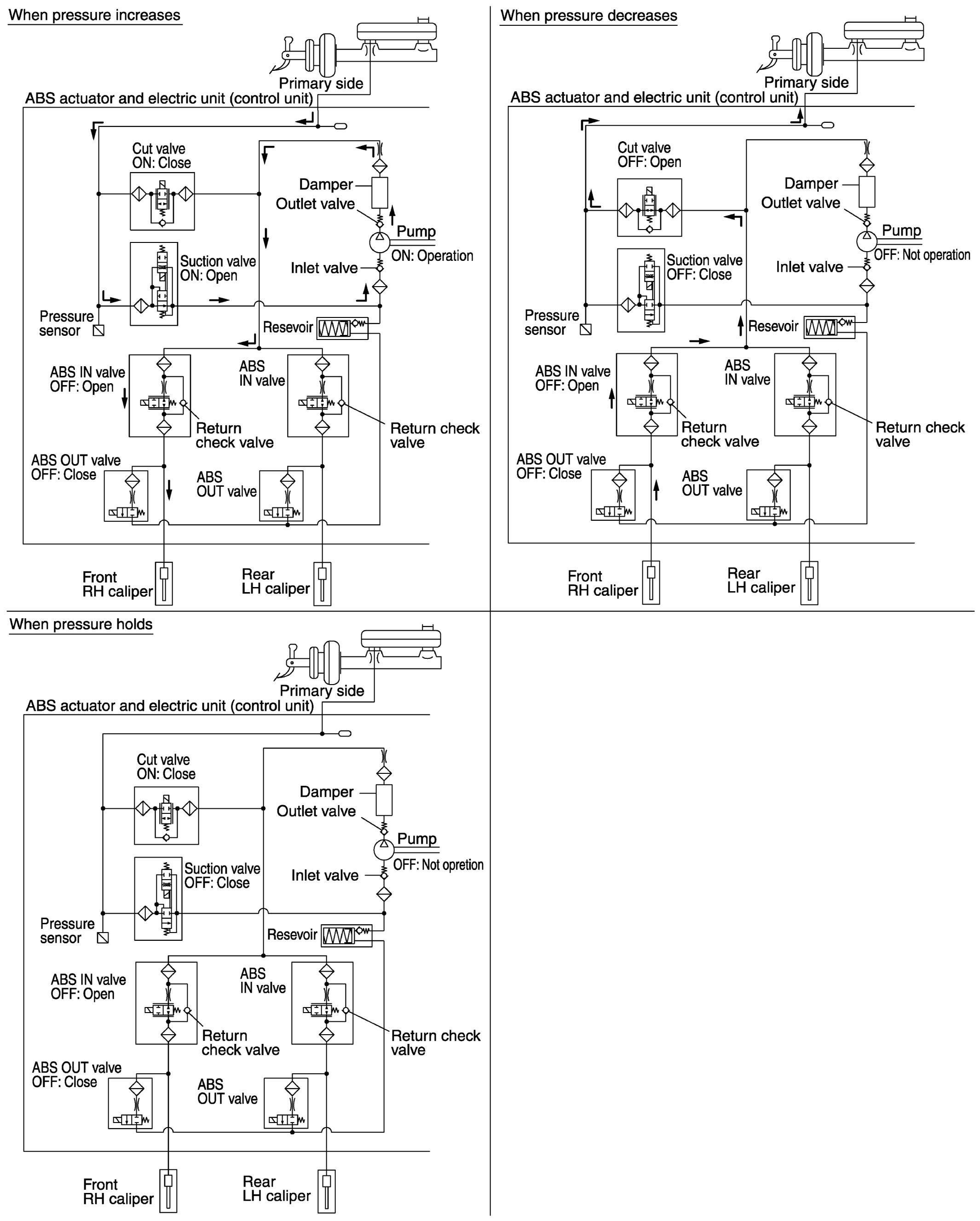

Fig 1: Valve Operation Diagram (VDC, TCS And Brake Limited Slip Differential Function)
G07051380Courtesy of NISSAN NORTH AMERICA, INC.

The following descriptions explains the control of front brake right side, as an example.
