Nissan-Datsun
>>
2013
>>
Quest SL
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
System Description
>>
System
>>
Circuit Diagram
Circuit Diagram

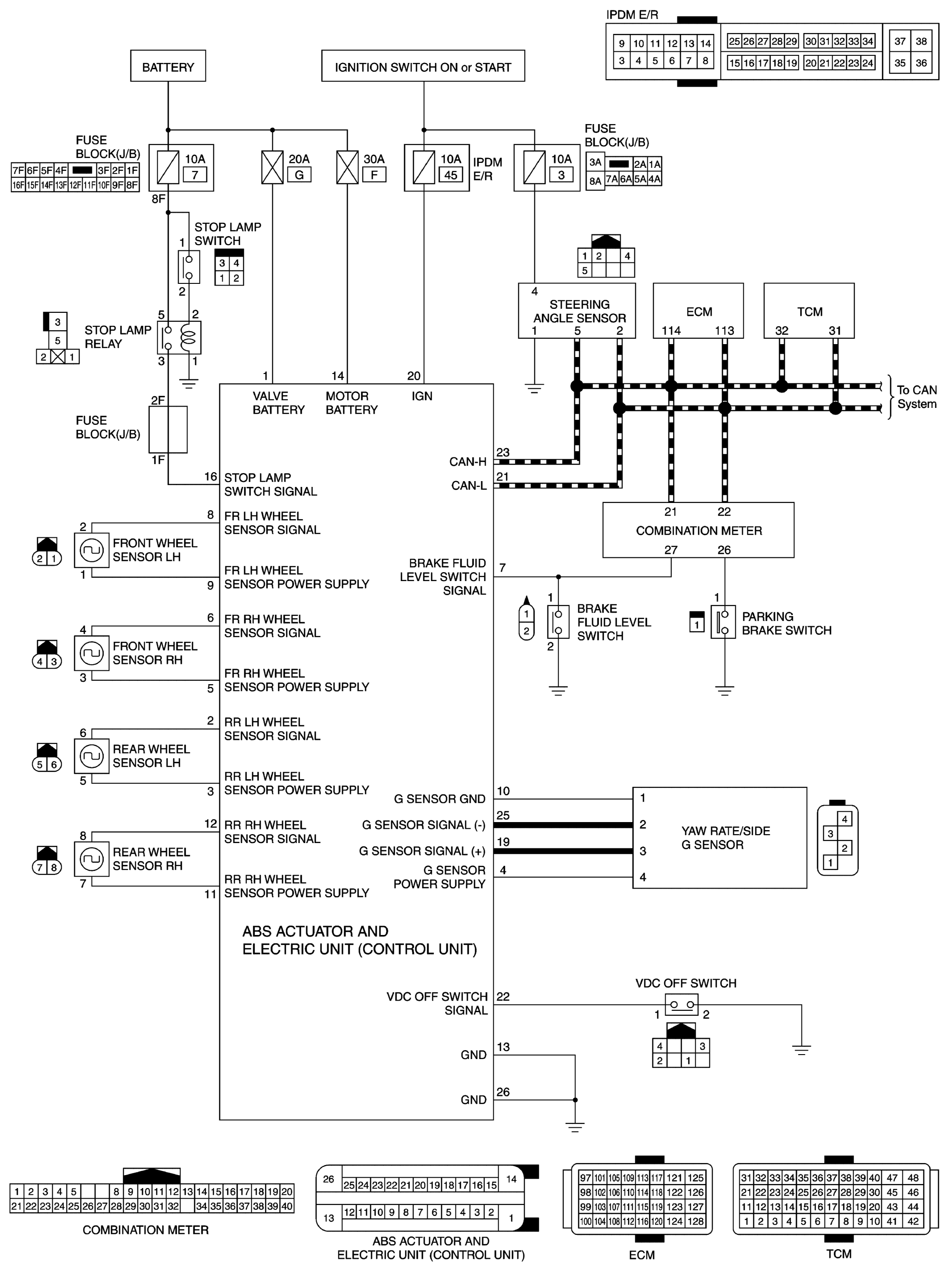

Fig 1: Brake Control System Wiring Diagrams With Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
