Engine Control System (Introduction)
>>
System Description
>>
System
>>
Engine Control System
>>
ENGINE CONTROL SYSTEM: Circuit Diagram
ENGINE CONTROL SYSTEM: Circuit Diagram

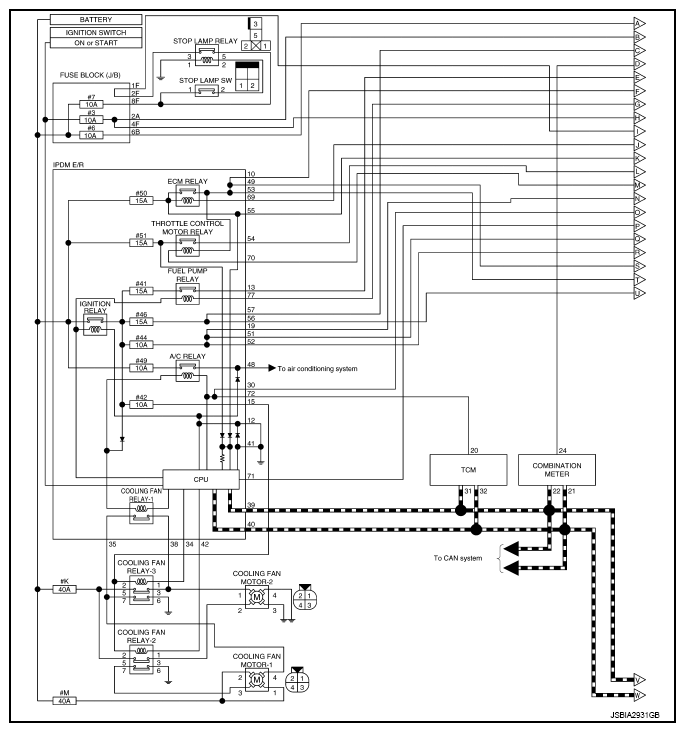

Fig 1: Engine Control System Circuit Diagram (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

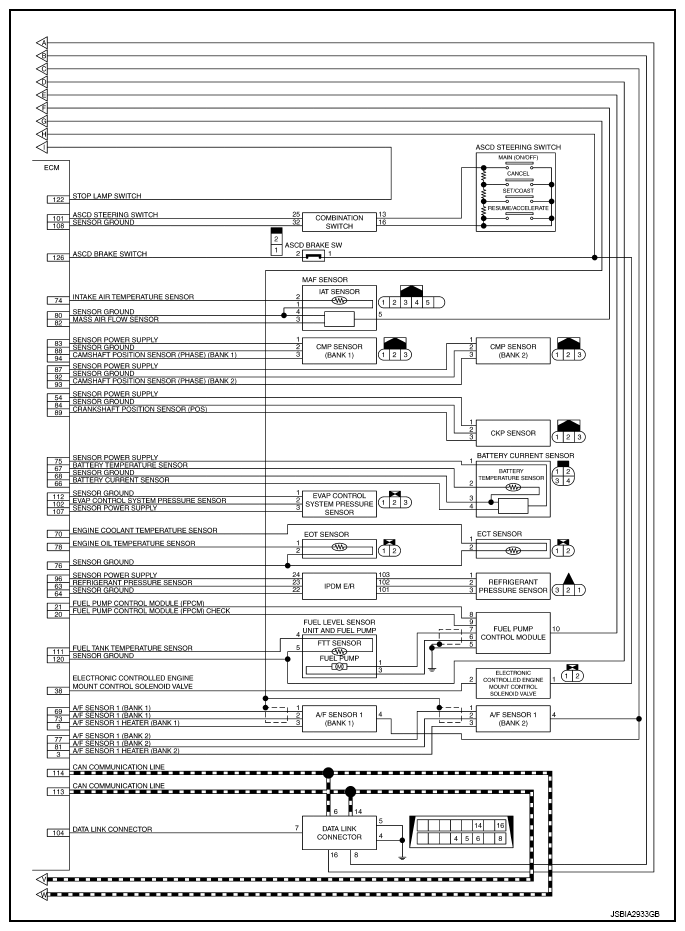

Fig 2: Engine Control System Circuit Diagram (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

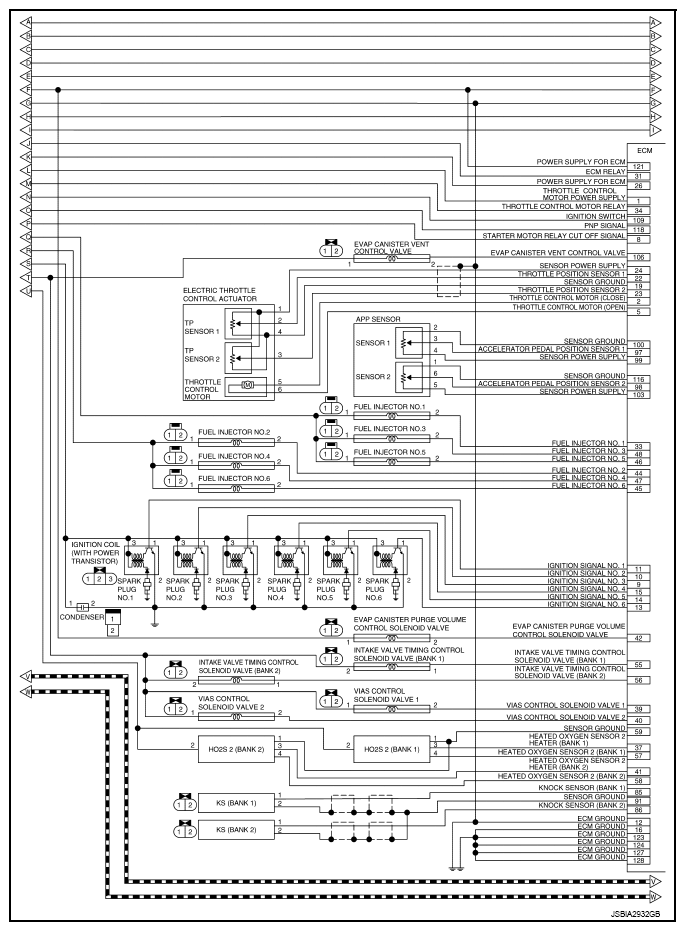

Fig 3: Engine Control System Circuit Diagram (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

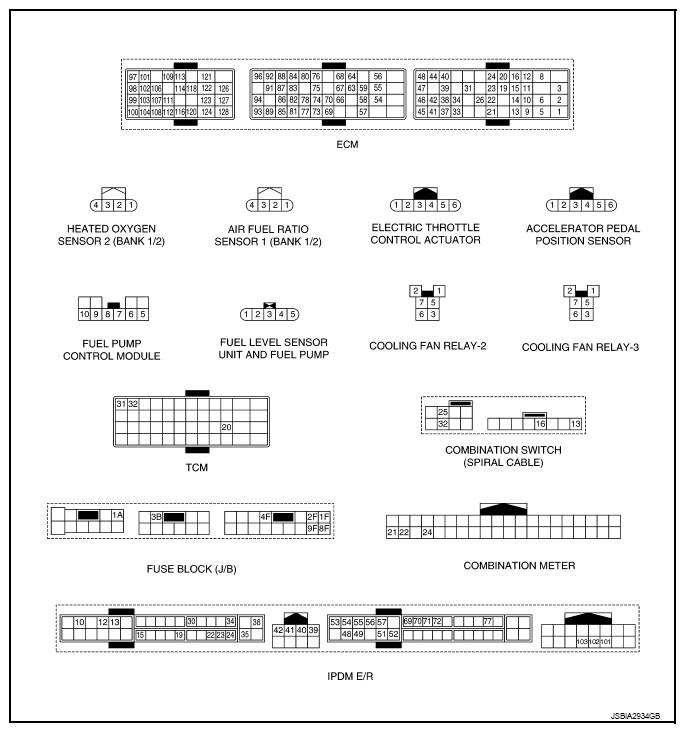

Fig 4: Identifying Engine Control System Connectors End View
Courtesy of NISSAN NORTH AMERICA, INC.
