Work Procedure

  1. CHECK IGNITION TIMING

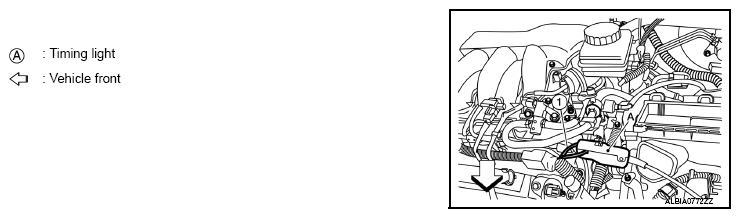

    1. Attach timing light to loop wires as shown below.
      Fig 1: Connecting Timing Light To Loop Wires
      G08944746Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.

      : INSPECTION END

      Fig 2: Checking Ignition Timing Using Timing Indicator
      G08944747Courtesy of NISSAN NORTH AMERICA, INC.
