Exploded View

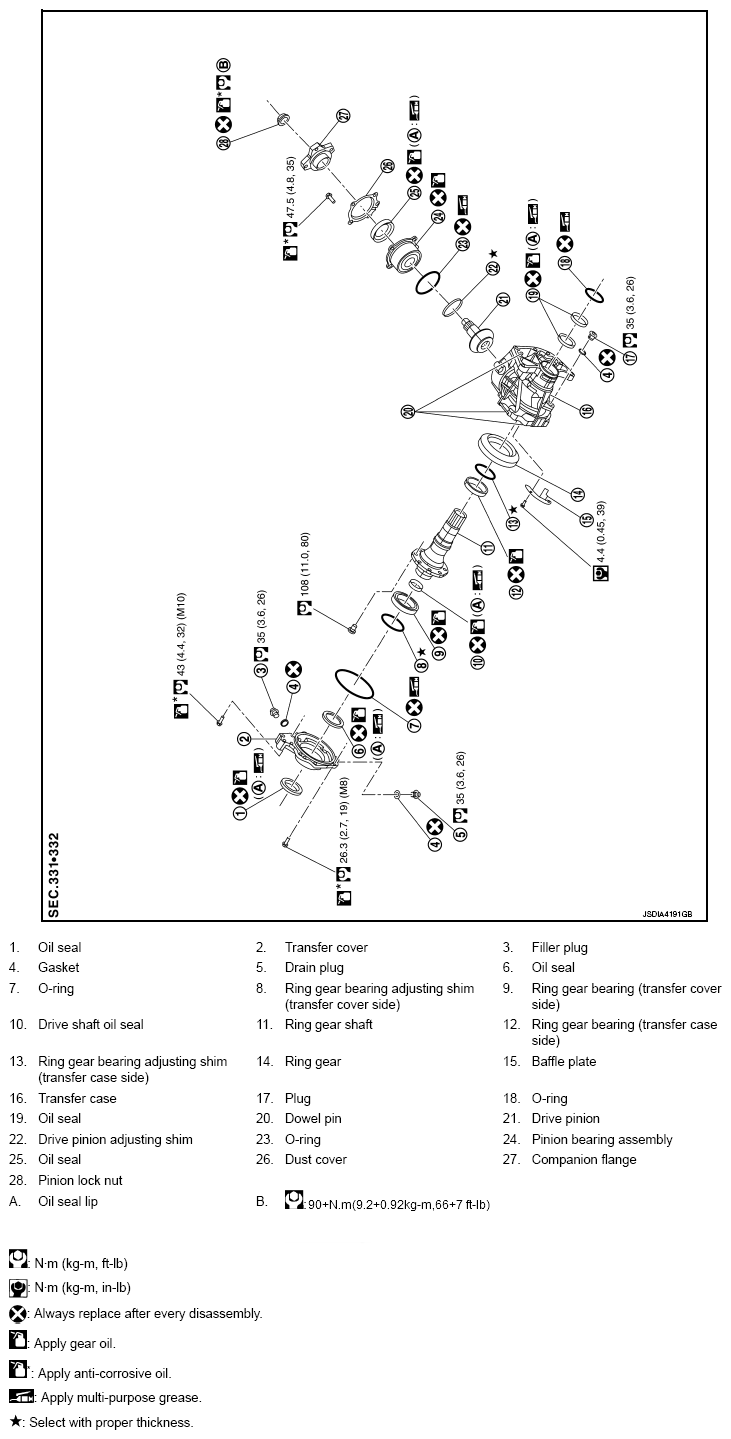

Fig 1: Exploded View Of Drive Pinion

G08945064

Courtesy of NISSAN NORTH AMERICA, INC.
