4WD SYSTEM: System Description
>>
System Diagram
System Diagram

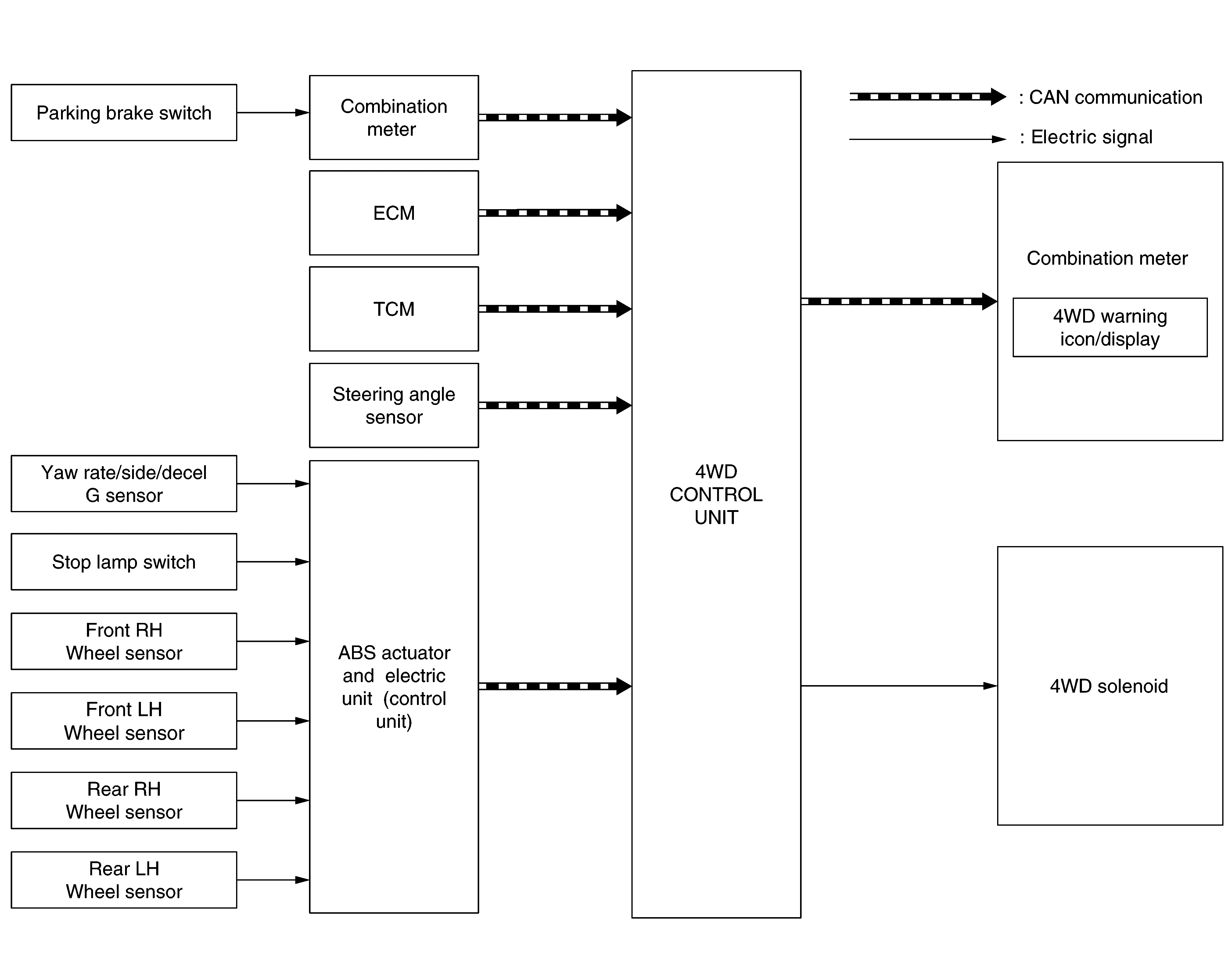

Fig 1: 4WD - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
