Work Procedure

With CONSULT

1. Confirm the unit characteristics (A) of electric controlled coupling.
   NOTE: Unit characteristics is 12-digit alphanumeric.
2. Turn the ignition switch OFF to ON.
3. Select "UNIT CHARACTERISTICS WRITE" in "WORK SUPPORT" for "ALL MODE AWD/4WD".
4. Input unit characteristics.
5. Select "Start".
6. Check that "UNIT CHARACTERISTICS WRITE COMPLETED" is displayed.

   : WORK END

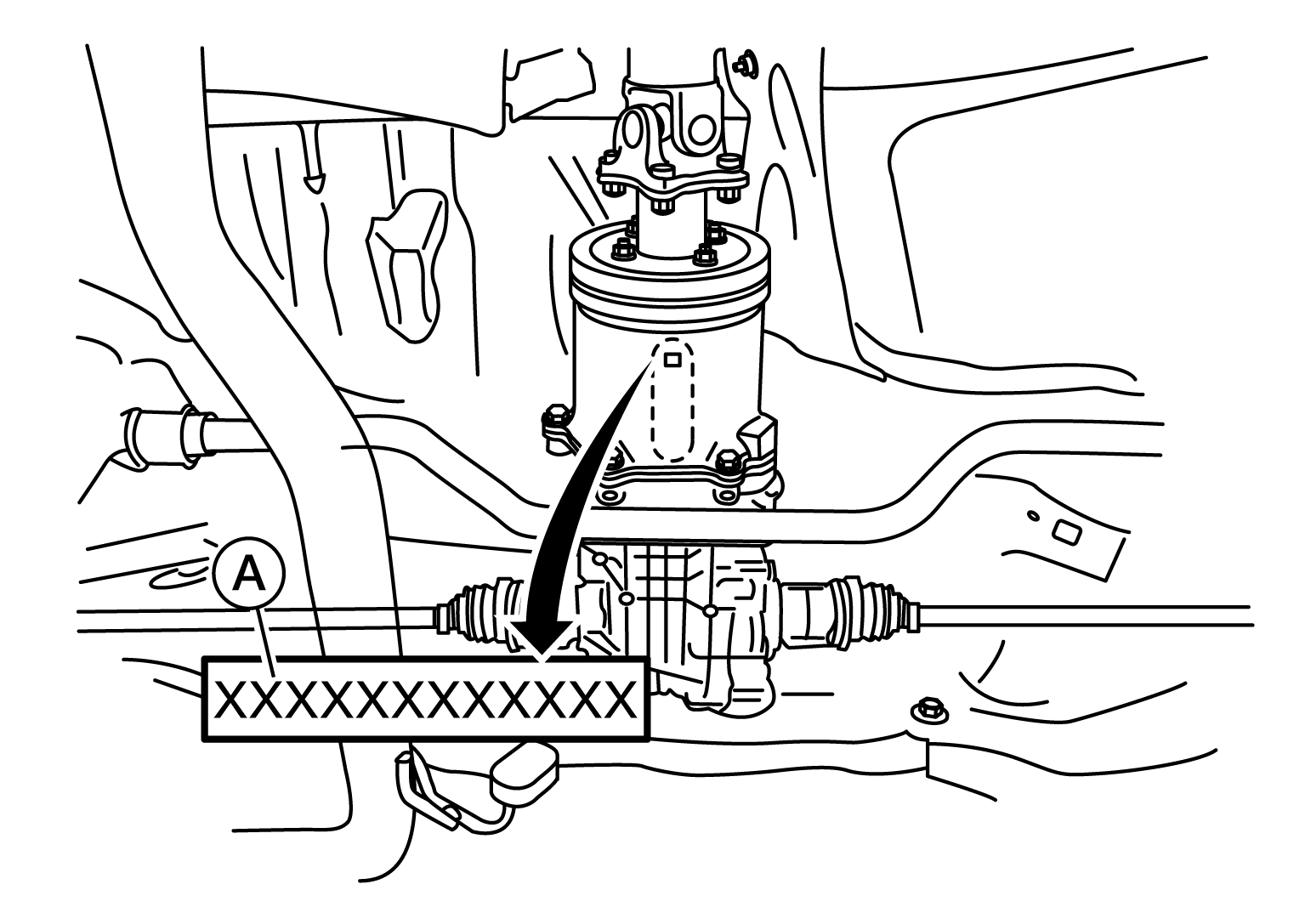

   Fig 1: Identifying Electric Controlled Coupling Unit Characteristics

   Courtesy of NISSAN NORTH AMERICA, INC.
