VQ40DE Models

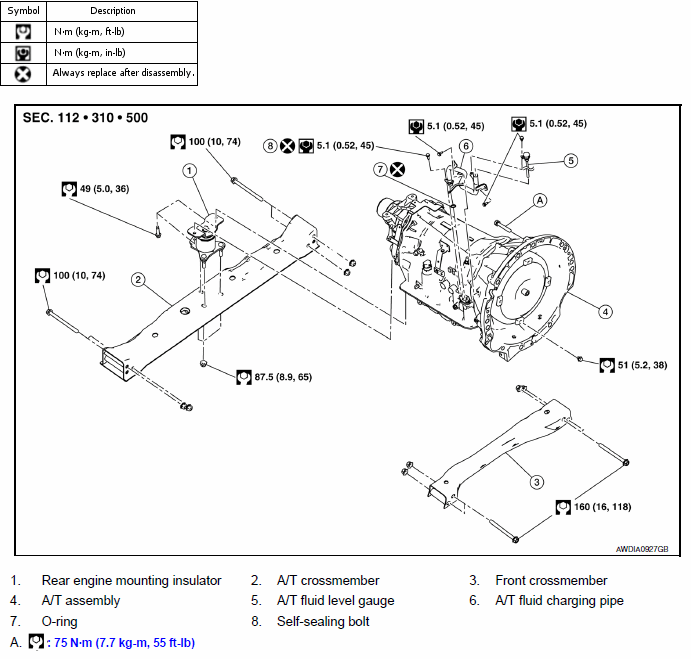

Fig 1: Exploded View Of Transmission Assembly (VQ40DE Models) With Torque Specifications

G09017509

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
