Removal and Installation: Removal

  1. Beginning at the rear edge, insert a suitable tool (A) and release the metal clip of the power window and door lock/unlock switch (RH) finisher (1).

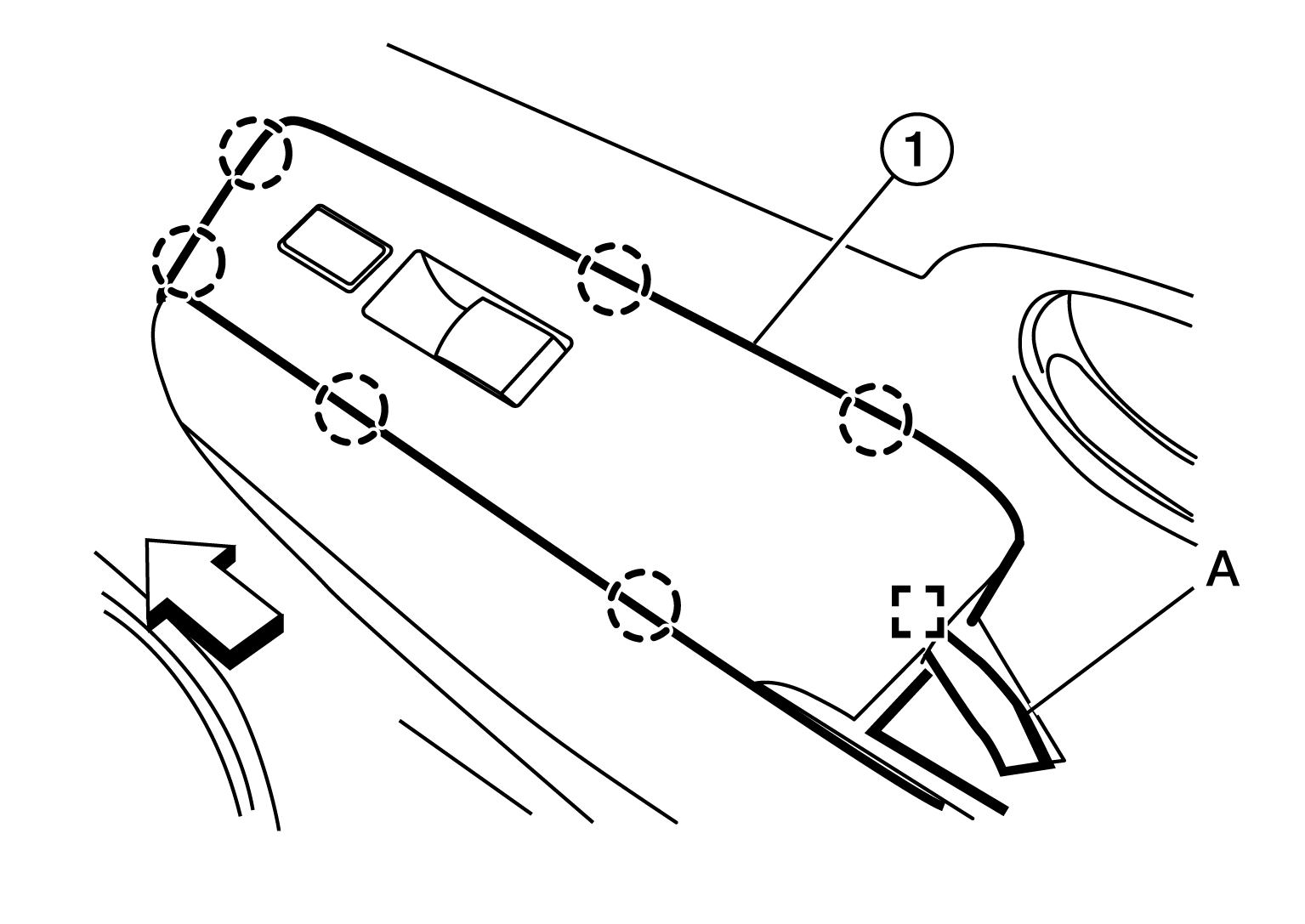

    Fig 1: Releasing Metal Clip Of Power Window And Door Lock/Unlock Switch (RH) Finisher
    G08160498Courtesy of NISSAN NORTH AMERICA, INC.
  2. Working forward, release the remaining pawls, then remove the power window and door lock/unlock switch (RH) finisher (1) and power window and door lock/unlock switch (RH) as an assembly from the front door finisher.
  3. Disconnect the harness connector from power window and door lock/unlock switch (RH).
  4. Release the four pawls that retain the power window and door lock/unlock switch (RH) (1) to the power window and door lock/unlock switch (RH) finisher (2) and separate them using a suitable tool (A).
    Fig 2: Separating Power Window Door Lock/Unlock Switch (RH) And Finisher Using Tool
    G08160497Courtesy of NISSAN NORTH AMERICA, INC.
