Unit Disassembly And Assembly
>>
Third Row Seats
>>
Exploded View
Exploded View

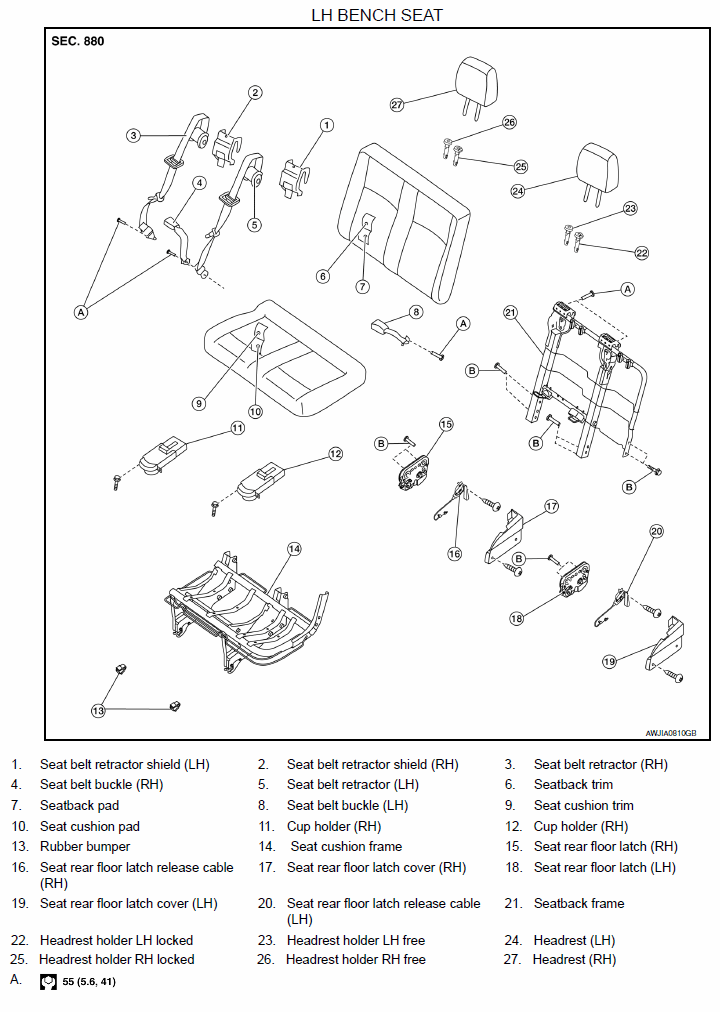

Fig 1: Exploded View Of Third Row Seats (LH Bench Seat)
Courtesy of NISSAN NORTH AMERICA, INC.

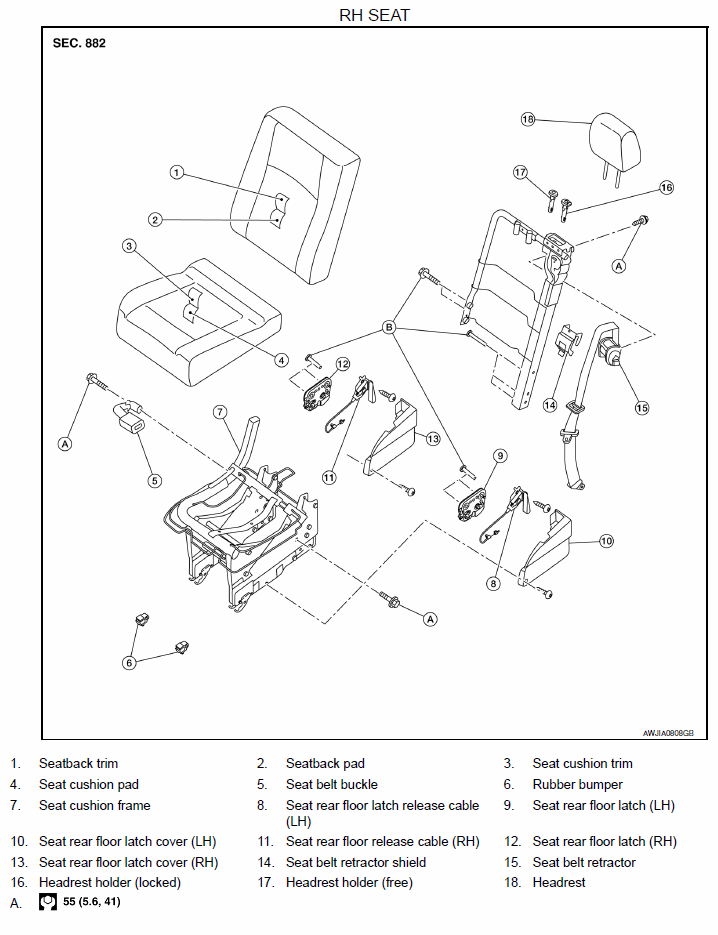

Fig 2: Exploded View Of Third Row Seats (RH Seat)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
